Tektronix TBS1052B User Manual

Horizontal controls

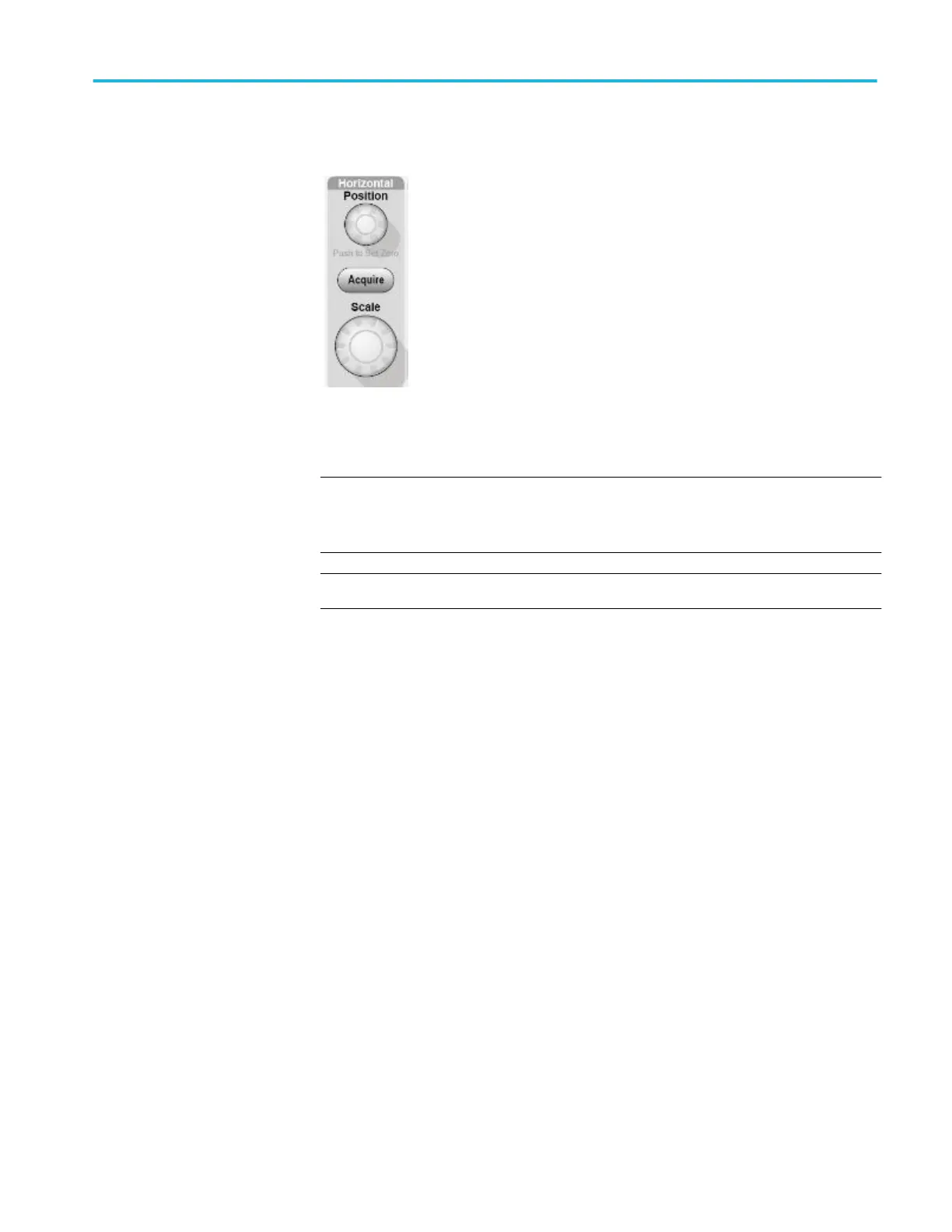

Position. Adjusts the horizontal position of all channel and math waveforms. The
resolution of this control varies with the time base setting.
NOTE. To make a large adjustment to the horizontal position, turn the Horizontal
Scale knob to a larger value, change the horizontal position, and then turn the
Horizontal Scale knob back to the previous value.
NOTE. To set the horizontal position to zero, push the horizontal position knob.
Acquire. Displays the acquisition modes — Sample, Peak Detect, and Average.
Scale. Selects the horizontal time/division (scale factor).
Operating basics
TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual 13

Tektronix TBS1052B Specifications

General

Bandwidth	50 MHz
Channels	2
Sample Rate	1 GS/s
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Interfaces	USB 2.0
Record Length	2.5 kpts
Display	7-inch WVGA (800 x 480)
Trigger Types	Edge, Pulse Width
Display Type	Color LCD
Display Resolution	800 x 480
Input Impedance	1 MΩ
Power Supply	100 to 240 V
