Measuring two signals
If you are testing a piece of equipment and need to measure the gain of the audio
amplifier, you will need an audio generator that can inject a test signal at the

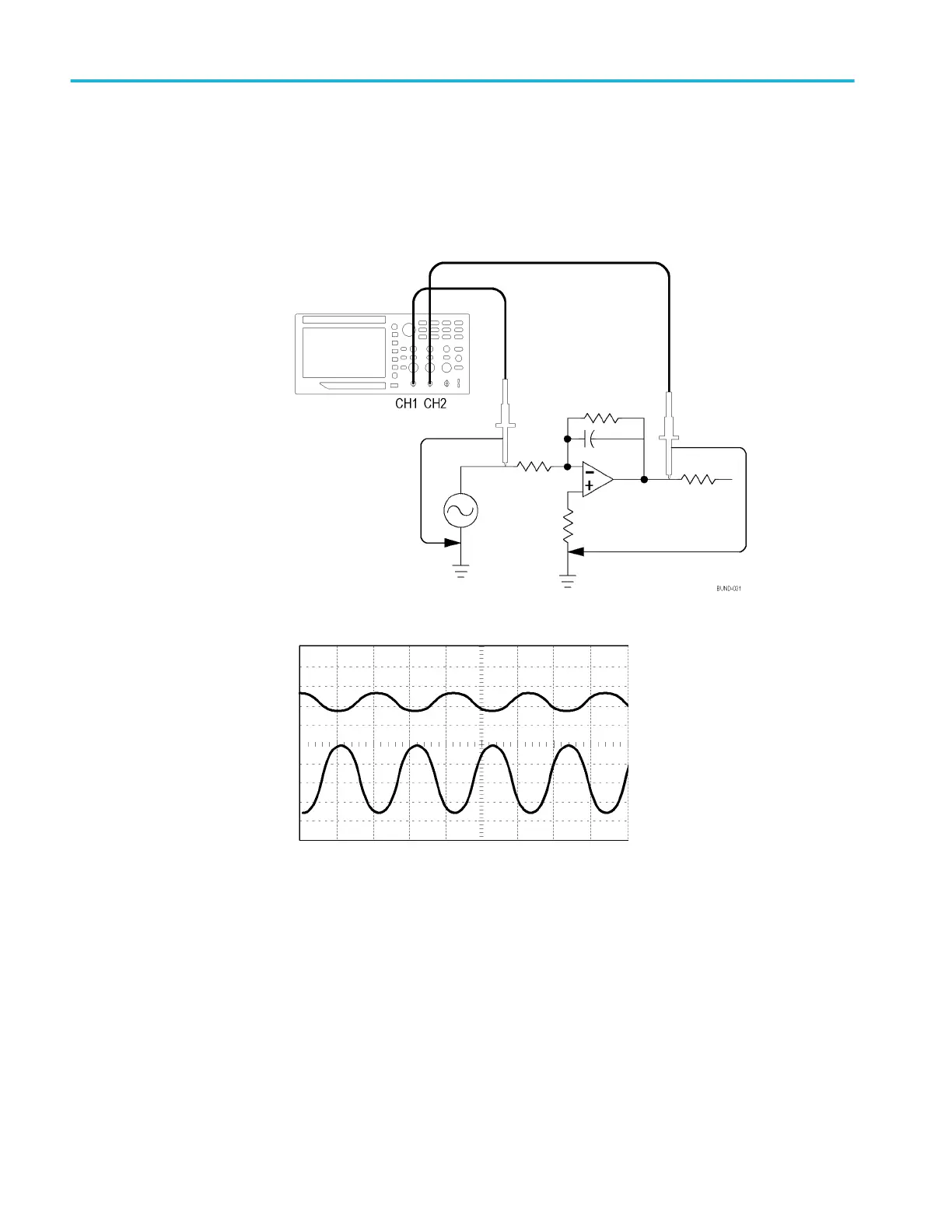

amplifier input. Connect two oscilloscope channels to the amplifier input and
output as shown next. Measure both signal levels and use the measurements to
calculate the gain.
MeasureGa
ting
On-Off
Ch1
Ch2
Math
To activate and display the signals connected to channel 1 and to channel 2, and
select measurements for the two channels, follow these steps:
1. Push the Autoset button.
2. Push the Measure button to see the Measure Menu.
3. Push the Ch1 side menu. The pop-up menu of measurement types appears to
the left.
4. Turn the Multipurpose knob to highlight Peak-Peak.
5. Push the Multipurpose knob to select Peak-Peak. A check should appear
next to the menu item and the Peak-to-Peak measurement for channel
1 should appear towards the bottom of the display.
Application examples
32 TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual

Tektronix TBS1052B Specifications

General

Bandwidth	50 MHz
Channels	2
Sample Rate	1 GS/s
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Interfaces	USB 2.0
Record Length	2.5 kpts
Display	7-inch WVGA (800 x 480)
Trigger Types	Edge, Pulse Width
Display Type	Color LCD
Display Resolution	800 x 480
Input Impedance	1 MΩ
Power Supply	100 to 240 V
