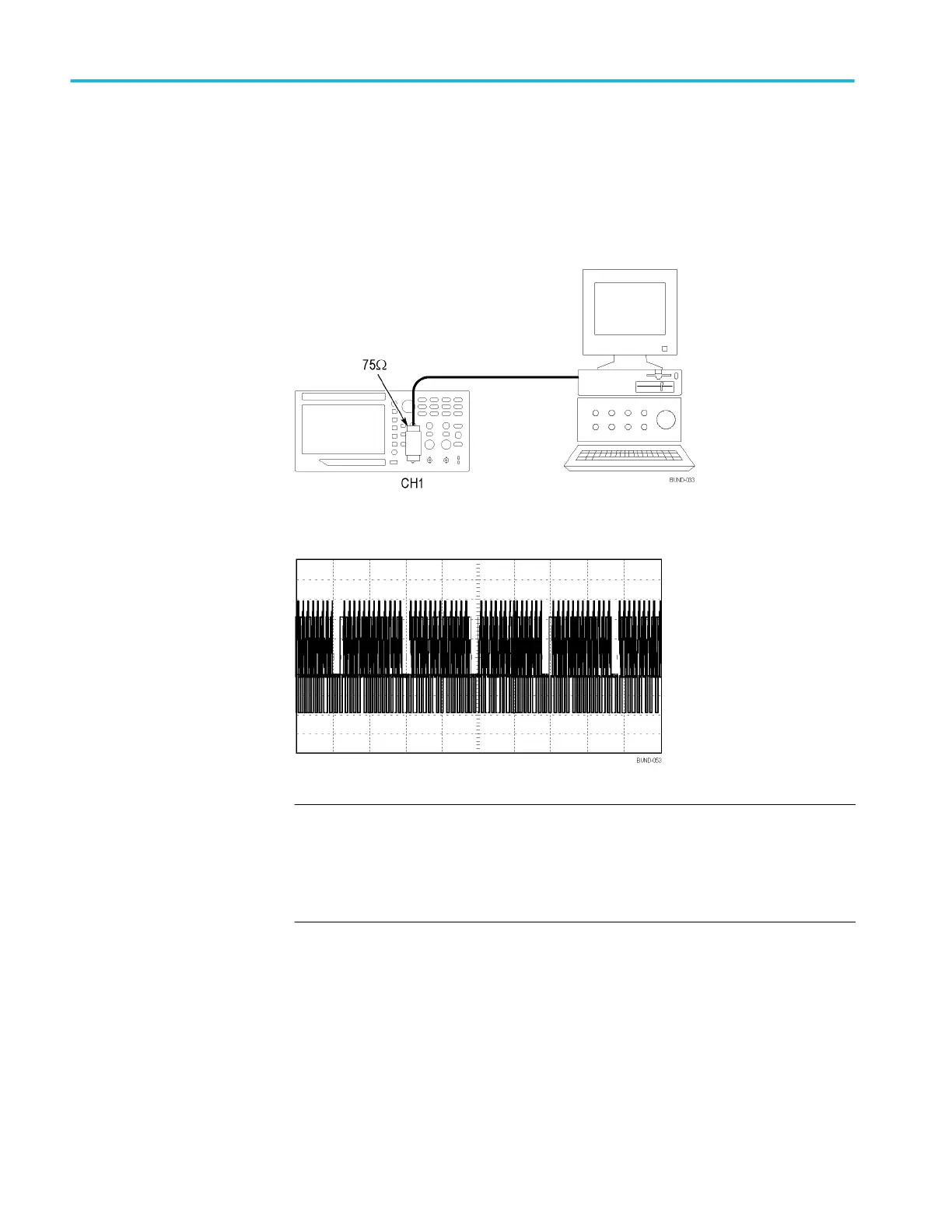

Triggering on a video signal
You are testing the video circuit in a piece of medical equipment and need to
display the video output signal. The video output is an NTSC standard signal.
Use the video trigger to obtain a stable display.
NOTE. Most video systems use 75 ohm cabling. The oscilloscope inputs do not
properly terminate low impedance cabling. To avoid amplitude inaccuracy from
improper loading and reflections, place a 75 ohm feedthrough terminator
(Tektronix part number 011-0055-02 or equivalent) between the 75 ohm coaxial
cable from the signal source and the oscilloscope BNC input.
Application examples
44 TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual

Tektronix TBS1052B Specifications

General

Bandwidth	50 MHz
Channels	2
Sample Rate	1 GS/s
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Interfaces	USB 2.0
Record Length	2.5 kpts
Display	7-inch WVGA (800 x 480)
Trigger Types	Edge, Pulse Width
Display Type	Color LCD
Display Resolution	800 x 480
Input Impedance	1 MΩ
Power Supply	100 to 240 V
