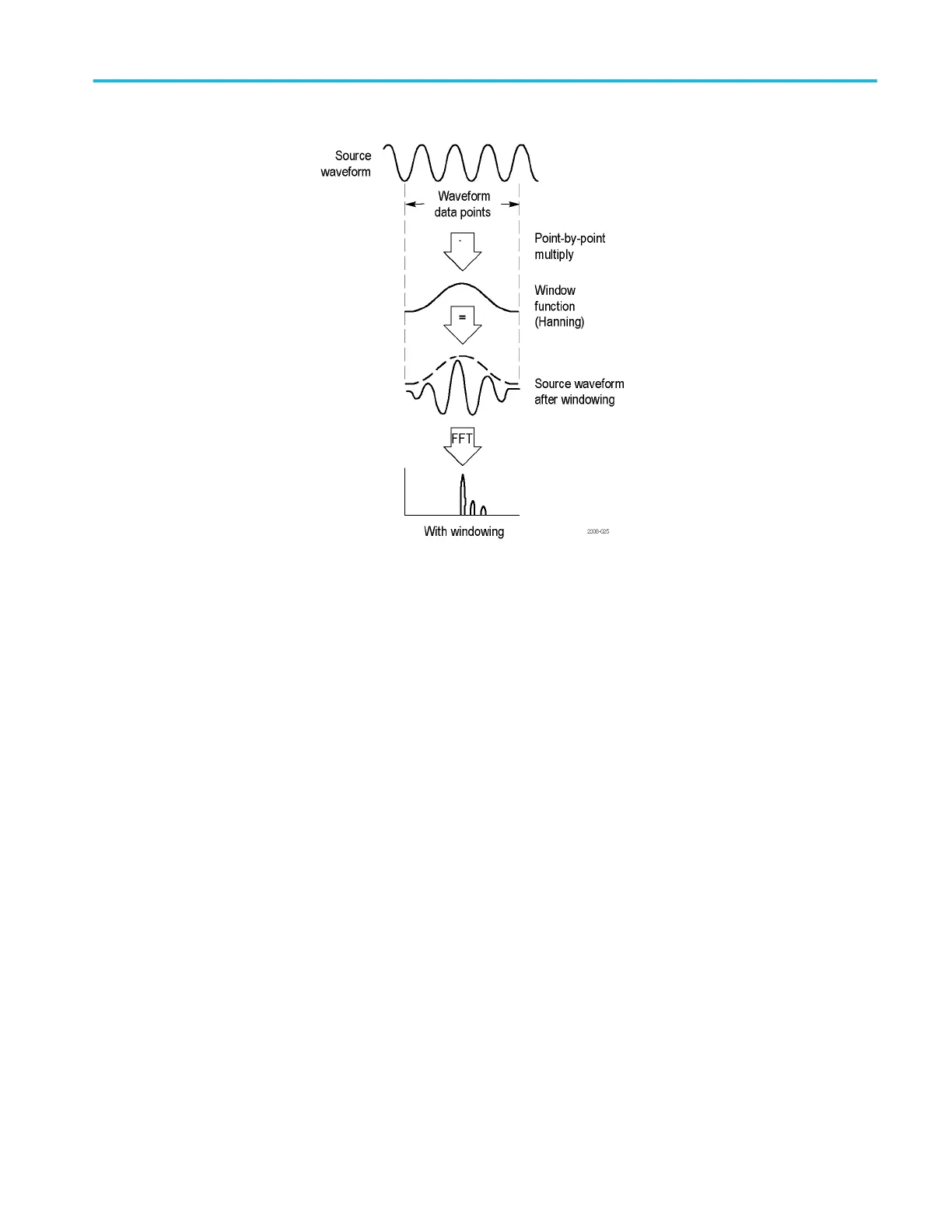

The different window shapes are trade-offs between frequency accuracy and
magnitude accuracy. What you want to measure, and your source signal
characteristics, help you to select which window to use. Use the following
guidelines to select the best window for your signal analysis needs. The Hanning
window is a good starting point for FFT measurements.
Analyzing a waveform
TBS2000B Series Oscilloscopes User Manual 117
