Application Examples
TDS 200-Series Digital Oscilloscope User Manual
39
Taking Automatic Measurements
The oscilloscope can take automatic measurements of most
displayed signals. To measure signal frequency, period, and
peak-to-peak amplitude, do these steps:
1. Push the MEASURE button to see the Measure menu.
2. Push the top menu box button to select Source.
3. Select CH1 for the first three measurements.
4. Push the top menu box button to select Type.
5. Push the first CH1 menu box button to select Freq.
6. Push the second CH1 menu box button to select Period.
7. Push the third CH1 menu box button to select Pk-Pk.

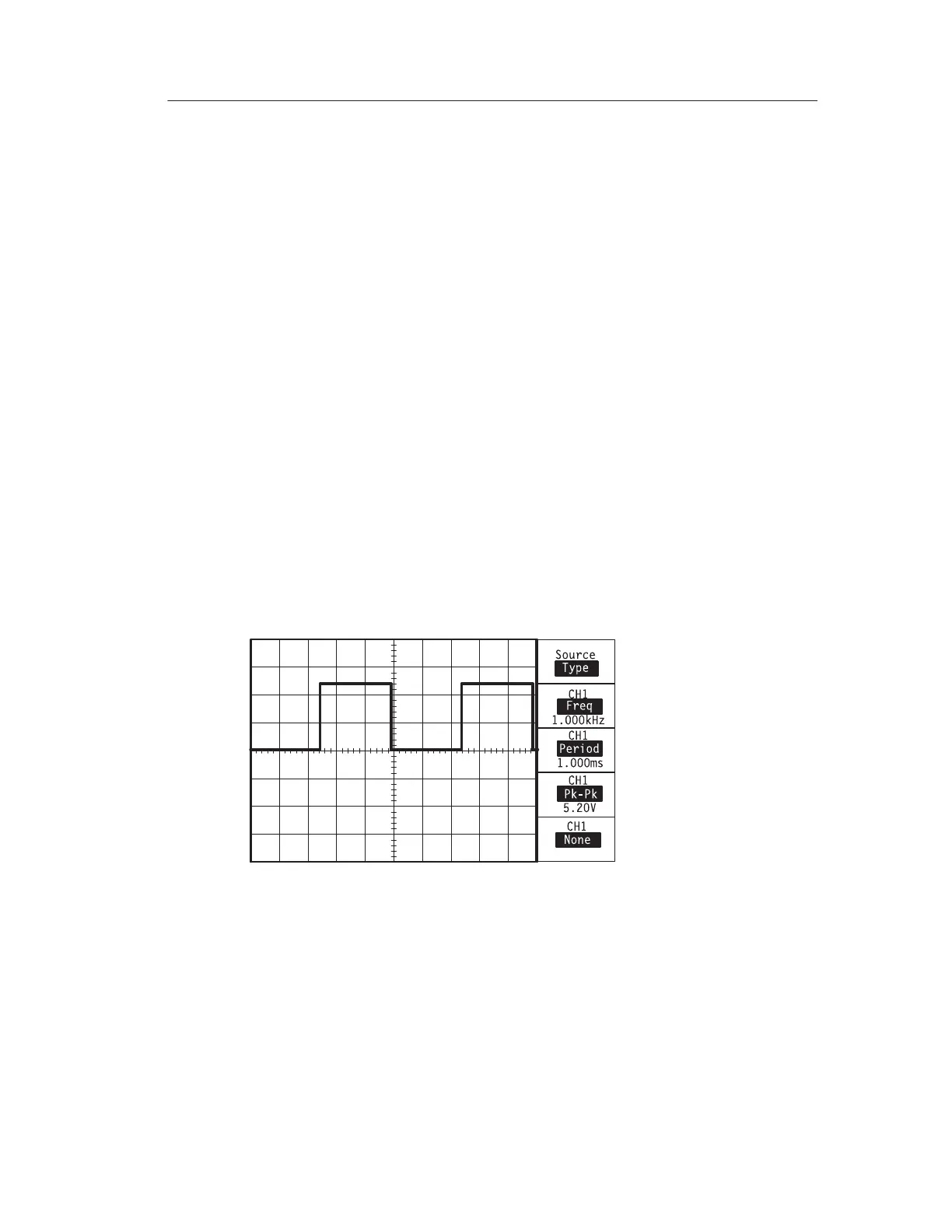

The frequency, period, and peak-to-peak measurements are shown in
the menu and are updated periodically.
