Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–213
RISe specifies the rising edge.
MEASUREMENT:IMMED:DELAY:EDGE2 RISE
specifies that the rising edge be used for the immediate delay measurement.
MEASUREMENT:IMMED:DELAY:EDGE2?
returns FALL showing that the falling or negative edge of the waveform is used
for the immediate delay measurement.

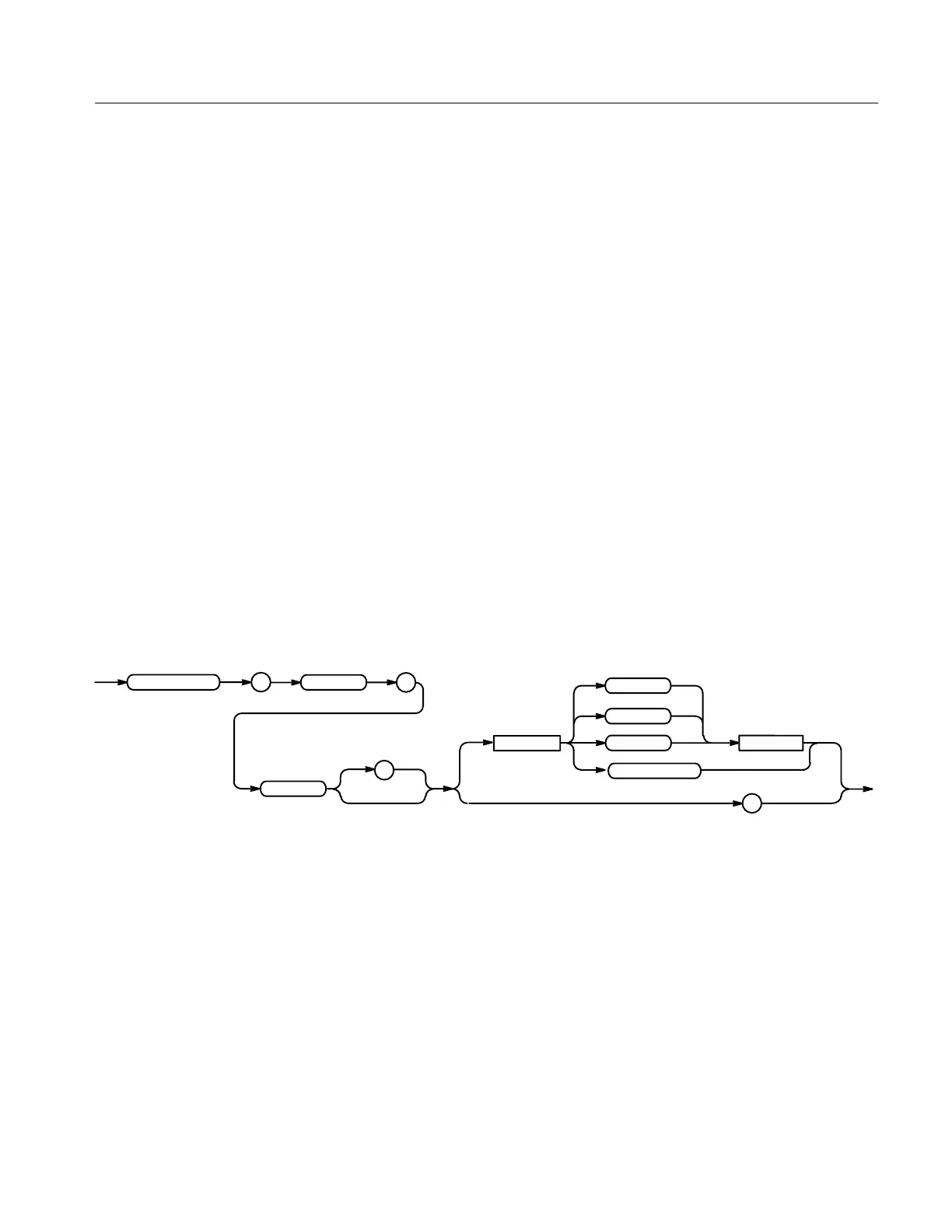

MEASUrement:IMMed:SOURCE[1]
Sets or queries the source for all single channel immediate measurements and
specifies the source to measure “from” when taking an immediate delay
measurement or phase measurement.
Measurement
MEASUrement:IMMed:SOURCE[1] { CH<x> | MATH<x> | REF<x> | HIStoĆ
gram (TDS 500C and 700C) }
MEASUrement:IMMed:SOURCE[1]?
REF
<Space>
?
MATH
<x>
IMMed
:
:
MEASUrement
SOURCE
1
CH
HIStogram
CH<x> is an input channel.
MATH<x> is a math waveform.
REF<x> is a reference waveform.
HIStogram is a histogram (TDS 500C and 700C only).
MEASUREMENT:IMMED:SOURCE MATH1
specifies MATH1 as the immediate measurement source.
Examples
Group
Syntax
Arguments
Examples
