Command Descriptions
2–214
TDS Family Oscilloscope Programmer Manual
MEASUrement:IMMed:SOURCE2
Specifies the source to measure “to” when taking an immediate delay measure-
ment or phase measurement.
Measurement

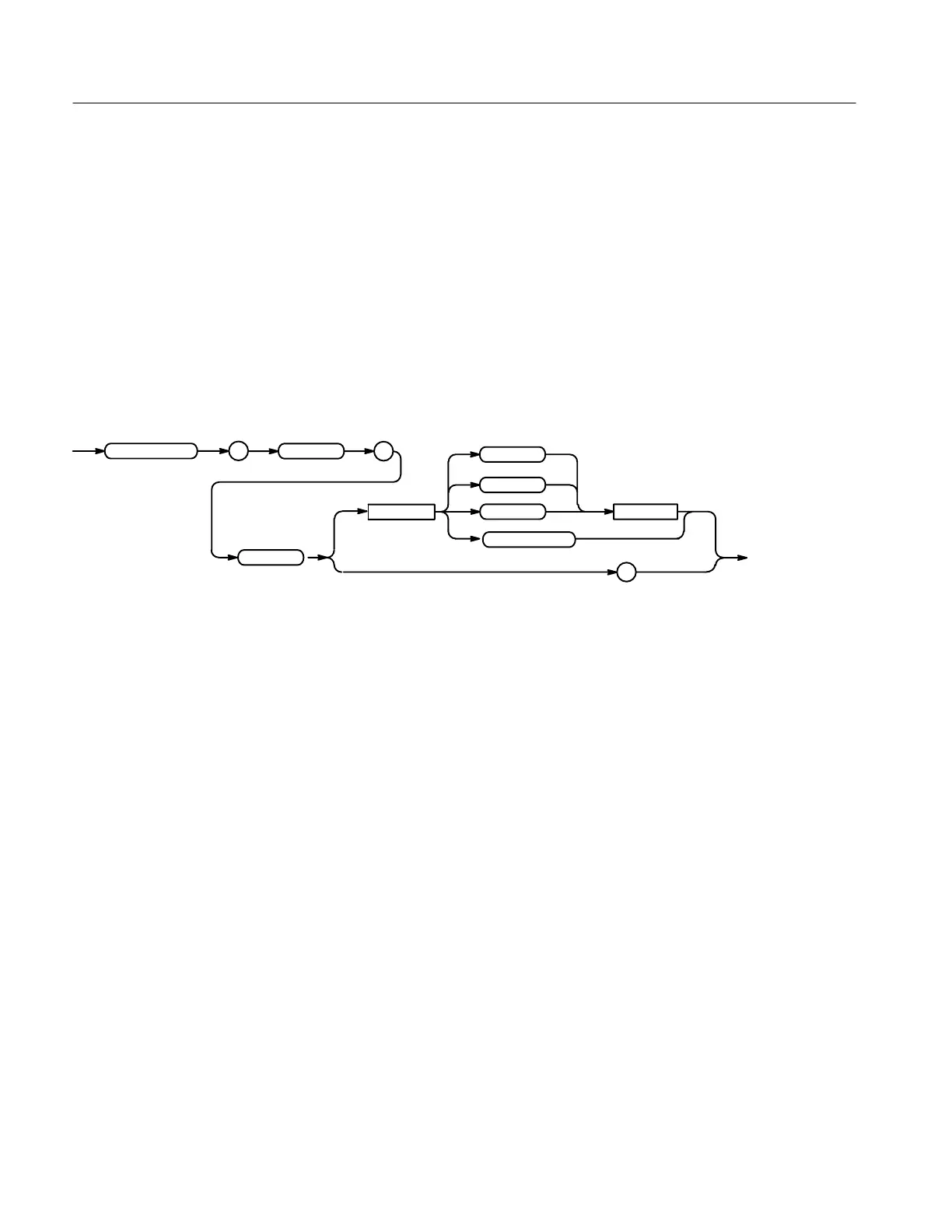

MEASUrement:IMMed:SOURCE2 { CH<x> | MATH<x> | REF<x> | HIStogram
(TDS 500C and 700C) }
MEASUrement:IMMed:SOURCE2?
REF
<Space>
?
MATH
<x>
IMMed
:
:
MEASUrement
SOURCE2
CH
HIStogram
CH<x> is an input channel.
MATH<x> is a math waveform.
REF<x> is a reference waveform.
HIStogram is a histogram (TDS 500C and 700C only).
MEASUREMENT:IMMED:SOURCE2 REF3
sets the waveform in reference memory location 3 as the delay “to” source when
making delay measurements.
MEASUREMENT:IMMED:SOURCE2?
might return MATH1.
MEASUrement:IMMed:TYPe
Specifies the immediate measurement.
Measurement
MEASUrement:IMMed:TYPe { AMPlitude | AREa | BURst | CARea | CMEan
| CRMs | DELay | EXTINCTDB (TDS 500C and 700C) |EXTINCTPCT (TDS
Group
Syntax
Arguments
Examples
Group
Syntax
