Math FFT
126
TDS1000/2000-Series Digital Oscilloscope User Manual
Measuring an FFT Spectrum Using Cursors
You can take two measurements on FFT spectrums: magnitude
(in dB) and frequency (i n Hz). Magnitude is referenced to 0 dB,
where 0 dB equals 1 V
RMS
. You can use the cursors to take
measurements at any zoom factor.
Push CURSOR
" Source and select Mat h. Push the Type option
button to select between Magnitude and Frequency. Use the Vertical
Position knobs to move cursors 1 and 2.
Use hori zontal cursors to me asure magnitude and vertical cursors to
measure frequency. The options display the delta between the two
cursors, the value at cursor 1 position, and the value at cursor 2
position. Delta is the absolute value of cursor 1 minus cursor 2.

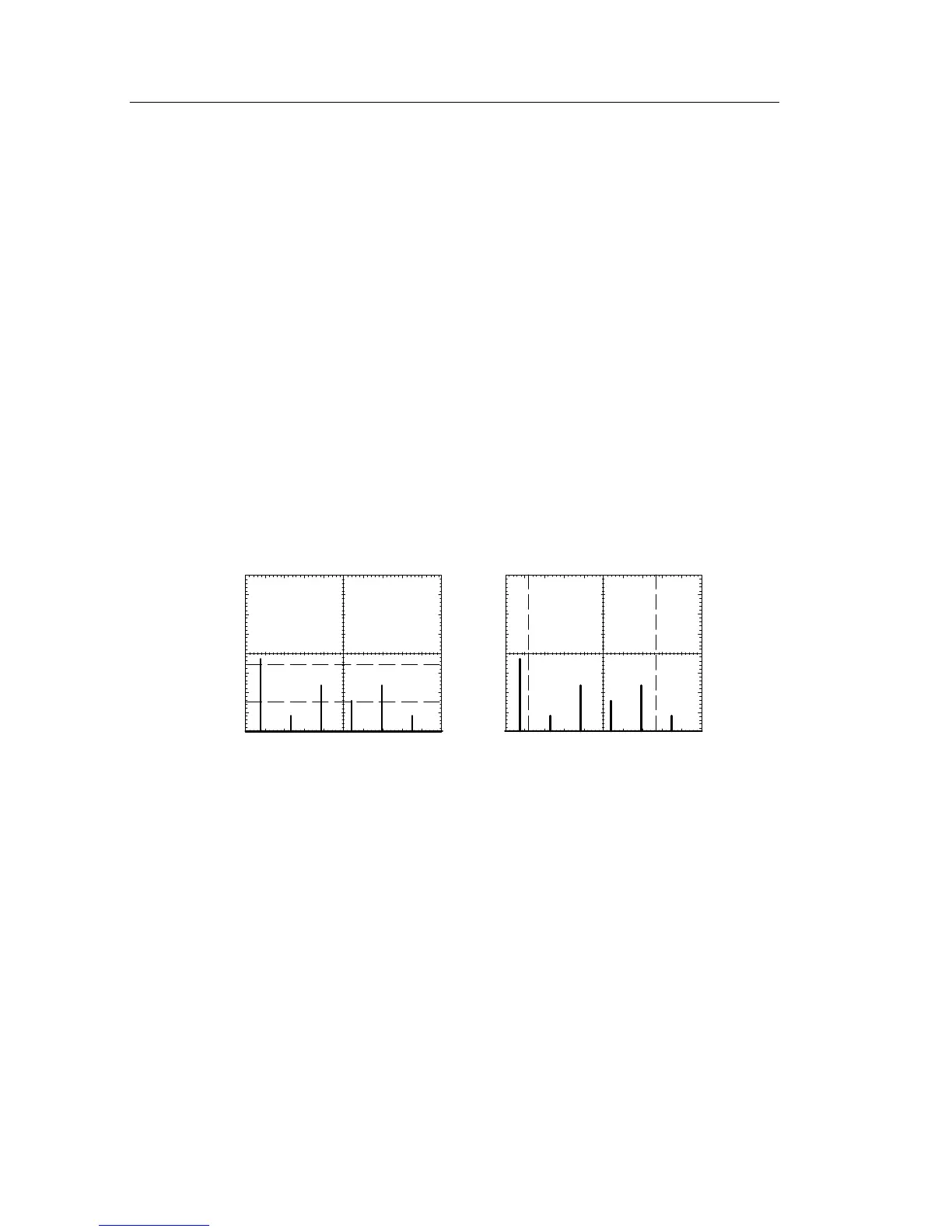

Magnitude cursors
Frequency cursors
You can also take a frequency measurement. To do so, turn the
Horizontal Position knob to position a frequency component on the
center graticule line and rea d the frequency at the top right of the
display.

Tektronix TDS2014 Specifications

General

Channels	4
Bandwidth	100 MHz
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Display	5.7 inch color LCD
Trigger Types	Edge, Video
Interface	USB
Input Impedance	1 MΩ
Power Requirements	100 to 240 V
