Triggering
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
3-97

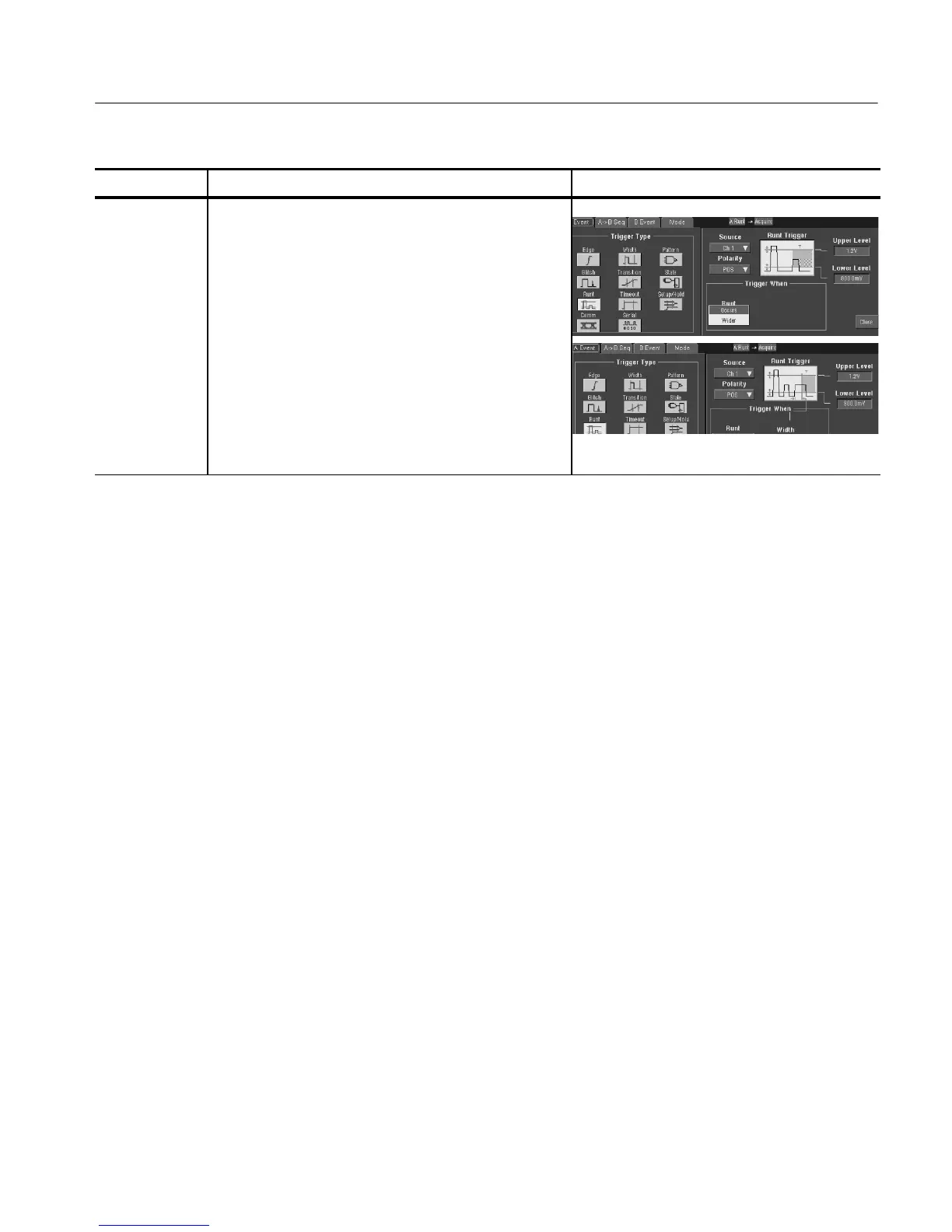

Overview Control elements and resourcesTo trigger on a runt pulse (Cont.)
Set to trigger
when
To determine how wide a runt pulse the instrument will trigger
on:
5. Touch Trigger When Runt and select from the list:
H Occurs triggers on all runt pulses regardless of
width.
H Wider triggers only on runt pulses that exceed the
width you set. Enter the width using the general
purpose knob or keypad.
6. To specify the minimum width of the runt pulse, touch
Width, and set the value using the multipurpose knob or
keypad.
