Creating and Using Math Waveforms
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
3- 205
Resolution 0.04 ms
Duration1ms
Record length 25
Record length 50
Duration2ms
Resolution 0.04 ms
Record length 25
Duration2ms
Resolution 0.08 ms
Duration2ms
Record length 100Resolution 0.02 ms
Adjust Duration via
sample rate
Adjust Duration via
record length
Adjust Resolution
Duration remains
constant

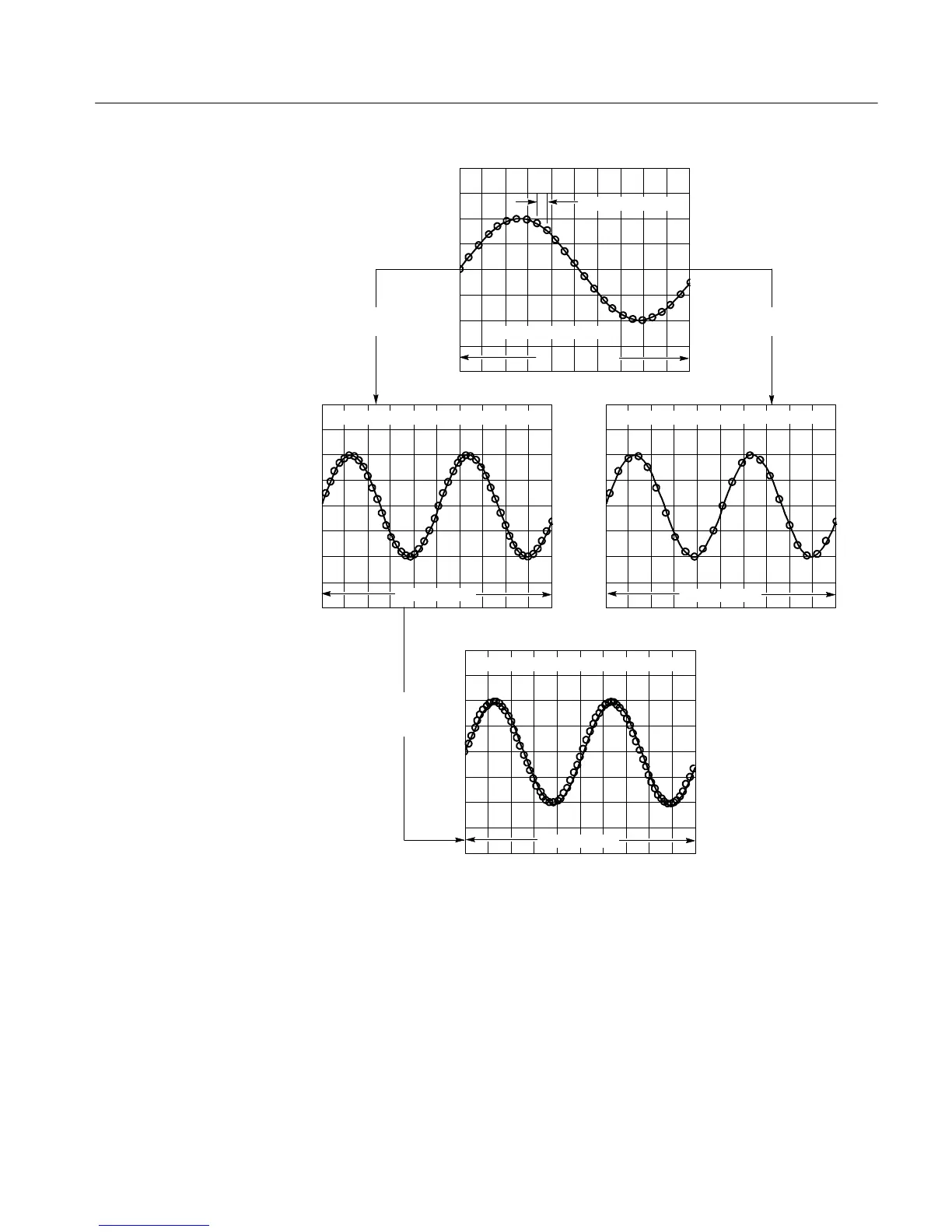

Figure 3- 45: Duration and resolution control effects
