Displaying Waveforms

3- 142

CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual

Overview Related control elements and resourcesSet display styles (Cont.)

Access the

display setup

dialog box

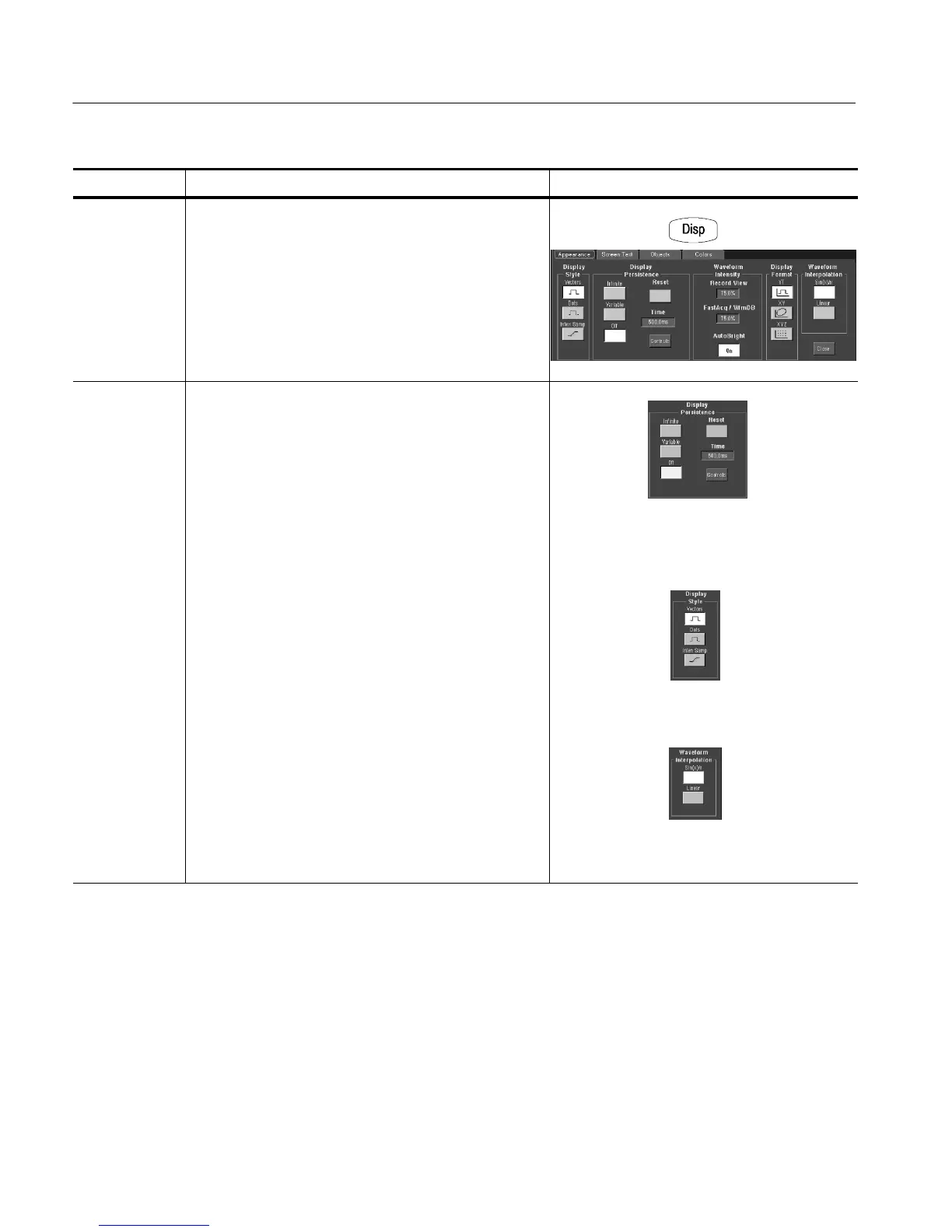

2. From the toolbar, touch Disp, and then select the

Appearance tab. See right. The CSA7000 Series &

TDS7000 Series dialog box is shown.

Select the

display style

and

persistence

and waveform

interpolation

mode

3. From Display Persistence, choose a persistence mode:

H Off displays Waveforms with new data replacing

the data from previous waveform acquisitions (no

persistence).

H Infinite persi stence continuously accumulates

record points until you change an acquisition

setting.

H Variable persistence accumulates record points for

a specified time. Each point decays in a set time

interval.

4. From Display Style, select an available style:

H Vectors displays lines between waveform dots.

H Dots displays waveform record points as dots.

H Inten Samp displays actual samples as bright dots

and blacks out interpolated samples.

Note. Adjustment of display intensity may be necessary

to set display intensity to the desired level.

5. Select an Interpolation mode by choosing Sin(x)/x or

Linear. For more information see Interpolation on

page 3--141.
