Creating and Using Math Waveforms
3- 200
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
Overview Related control elements and resourcesTo use math waveforms (Cont.)
Take
automatic
measurements

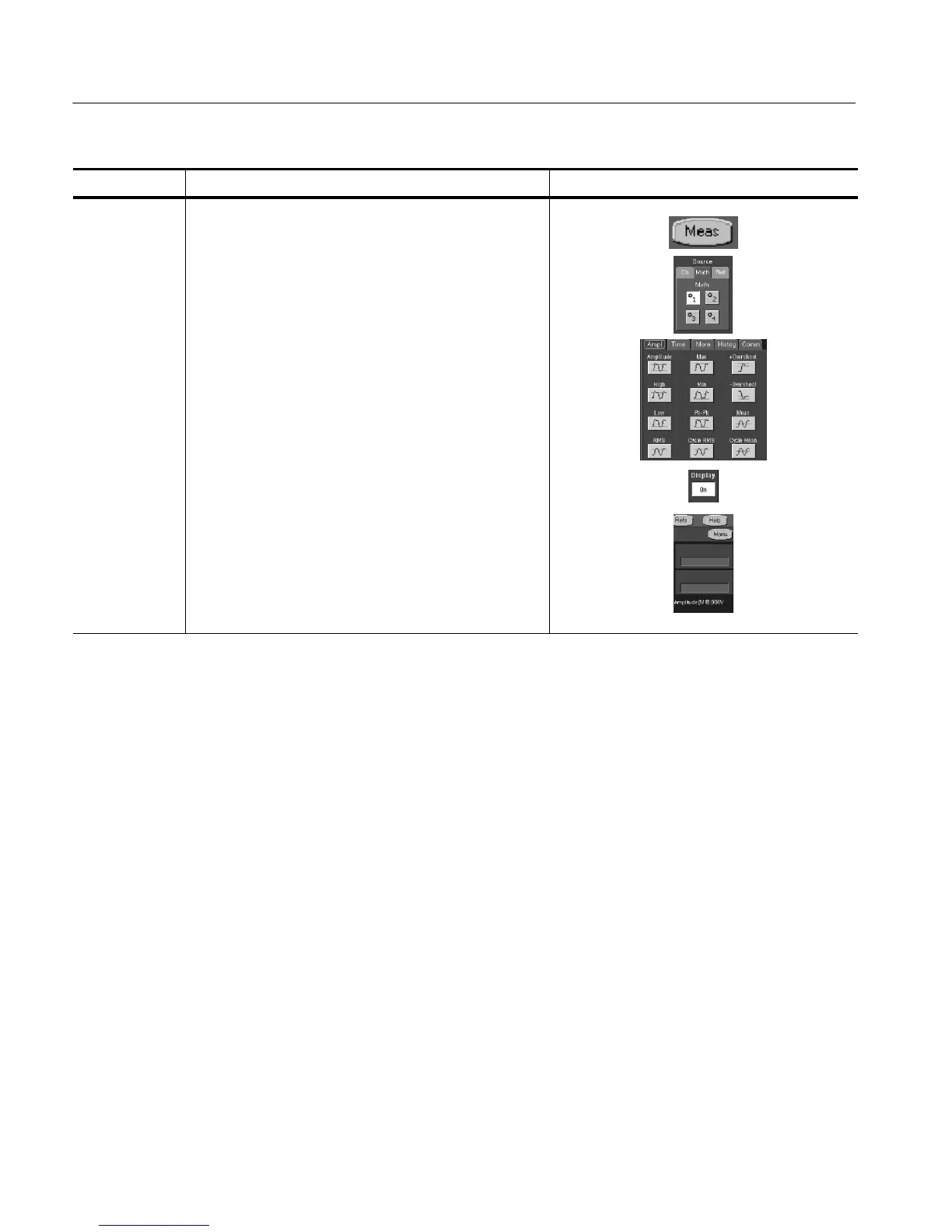

5. Touch the Meas button, select the Math tab, and touch a
math button to choose a mat h waveform from Math1 -
Math4. (See right.)
6. Select a measurement (for more informati on, see Taking
Automatic Measurements on page 3--148).
Click the Help button in the menu bar for more
information.
7. To display the measurement, touch Display to toggle it
to on.
8. Read the results in the measurements readout.
