Managing TPSBAT Battery Packs

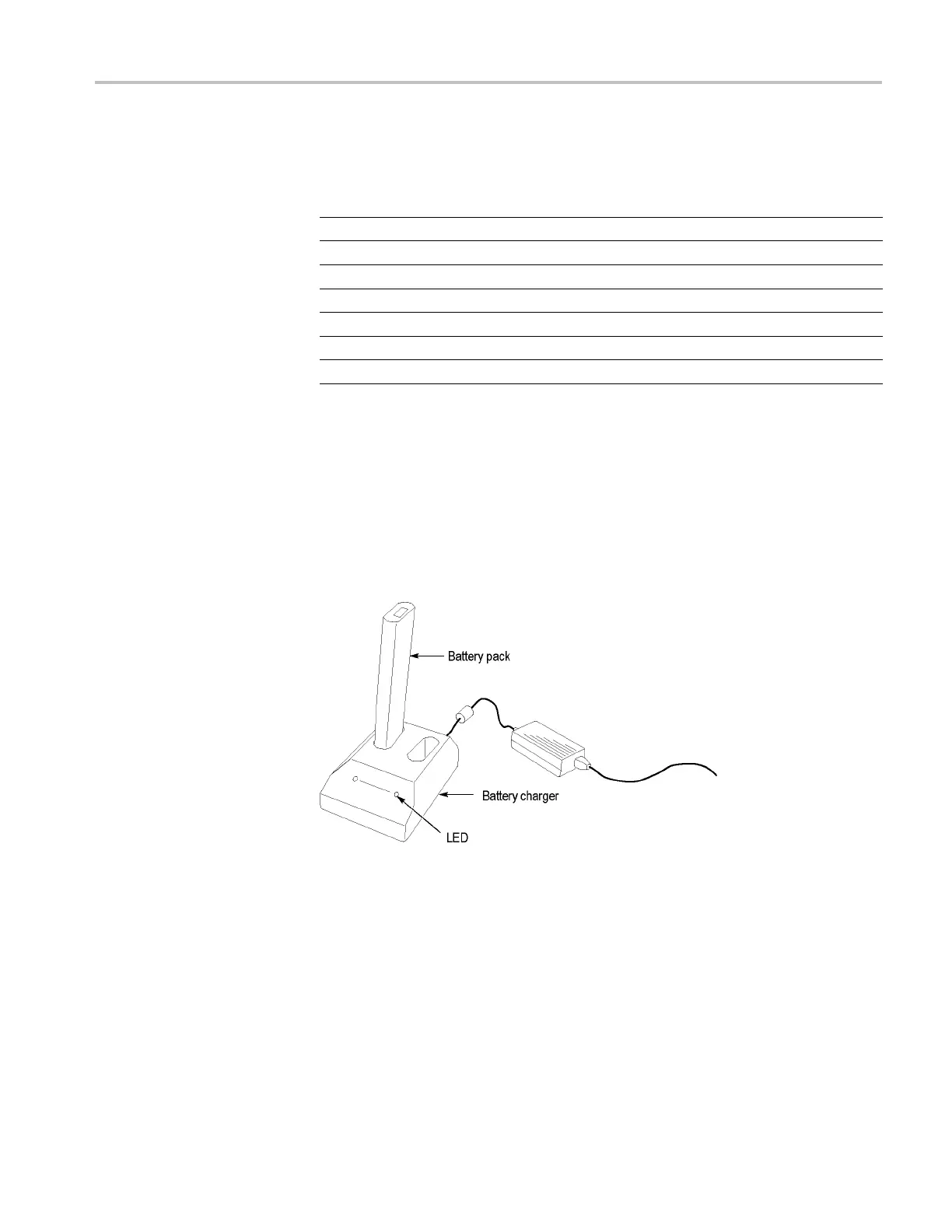

LEDsindicatew
hich battery pack is being charged, the status of the charge, and
whenthechargeiscomplete.
LED color Status
None No battery is in the charger
Green flashing
Fast charge is in progress
Green solid
Fully charged
Yellow flashing
Recalibration is in process
Yellow flashing and Green solid
Recalibration complete
Ye ll ow solid
Standby mode
Red flashing
Error
If the Red LED flashes, f ollow these steps:
1. Check that the charger is not overheating. Ensure that the charger fan is
running and that the airflow is not blocked. If the charger continues to
overheat, replace the TPSCHG.
2. If the charger is not overheating, the TPSBAT battery pack is defective. You
should replace the battery pack and dispose of the defective battery. The
Envi
ronmental Considerations section contains information on Disposal and
Recycling. (See page xiii, Environmental considerations.)
TPS2000B Series Digital Oscilloscope User Manual 89
