Application Examples

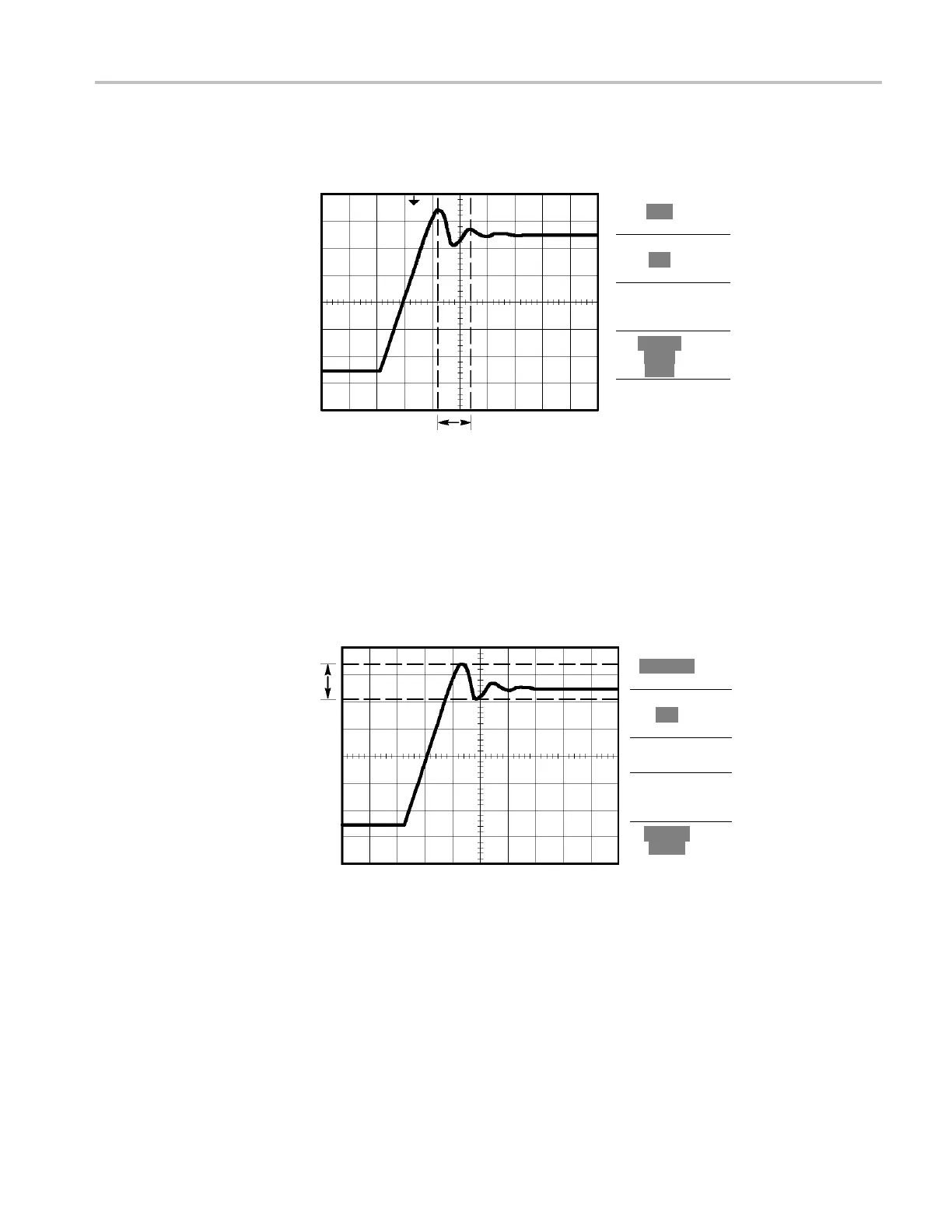

You can see the Δ
(delta) time and frequency (the measured ring frequency)
in the Cursor Menu.
Type
Time
Source
CH1
Δt540.0ns
1/Δt 1.852MHz
ΔV 0.44V
Cursor1
180ns
1.40V
Cursor2
720ns
0.96V
8. Push Type ► Amplitude.
9. Push the Cursor 1 option .
10. Turn the multipurpose knob to place a cursor on the first peak of the ring.
11. Push the Cursor 2 option .
12. Turn the multipurpose knob to place Cursor 2 on the lowest part of the ring.
You can see the amplitude of the ring in the Cursor Menu.
Type
Amplitude
Source
CH1
ΔV 640mV
Cursor 1
1.46V
Cursor 2
820mV
Measuring Pulse Width
If you are analyzing a pulse waveform and you want to know the width of the
pulse, follow these steps:
1. Push the Cursor to see the Cursor Menu.
2. Push Type ► Time.
3. Push Source ► CH1.
4. Push the Cursor 1 option .
TPS2000B Series Digital Oscilloscope User Manual 47
