Application Examples
Triggering on V
ideo Lines
Automatic. You
can also look at the video lines in the field. To trigger on the
video lines, follow these steps:
1. Push AutoSet.
2. Push the top option to select Line to sync on all lines. (The AutoSet Menu
includes Al
lLinesand Line Number options.)
Manual. An alternative method require s more steps, but may be nece ssary
depending on the video signal. To use this m ethod, follow these steps:
1. Push the Trig Menu button to see the Trigger Menu.
2. Push the top option button and select Video.
3. Push the S
ync option button and select All Lines or Line Number and turn
the multipurpose knob to set a specific line number.
4. Push Sta
ndard ► NTSC.
5. Turn the Horizontal Scale knob to see a complete video line across the screen.
6. Turn the Vertical Scale knob to ensure that the entire v ideo signal is visible
on the screen.

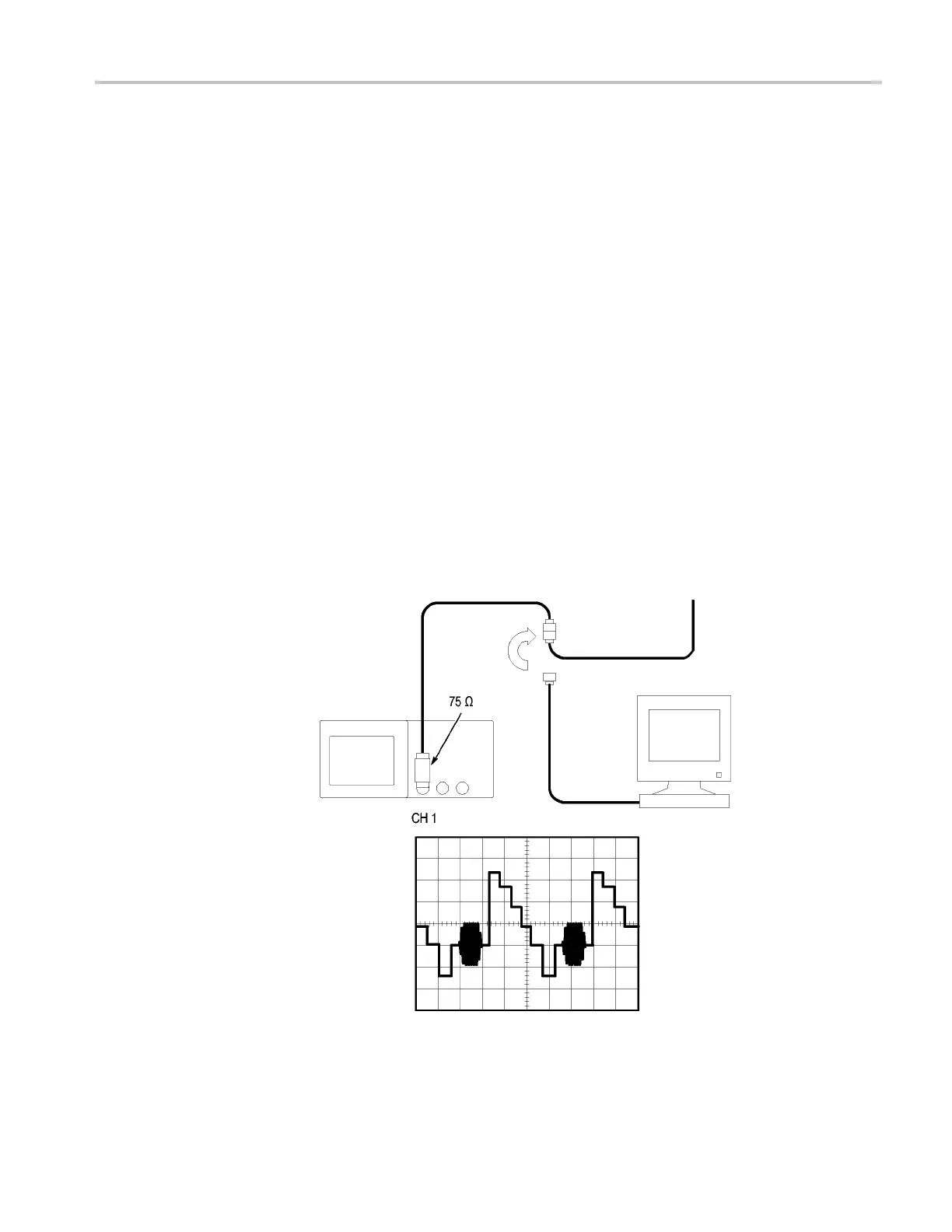

Incoming video signal
TPS2000B Series Digital Oscilloscope User Manual 57
