Tektronix WFM7020 User Manual

Monitor Dolby-B
ased Surround Sound

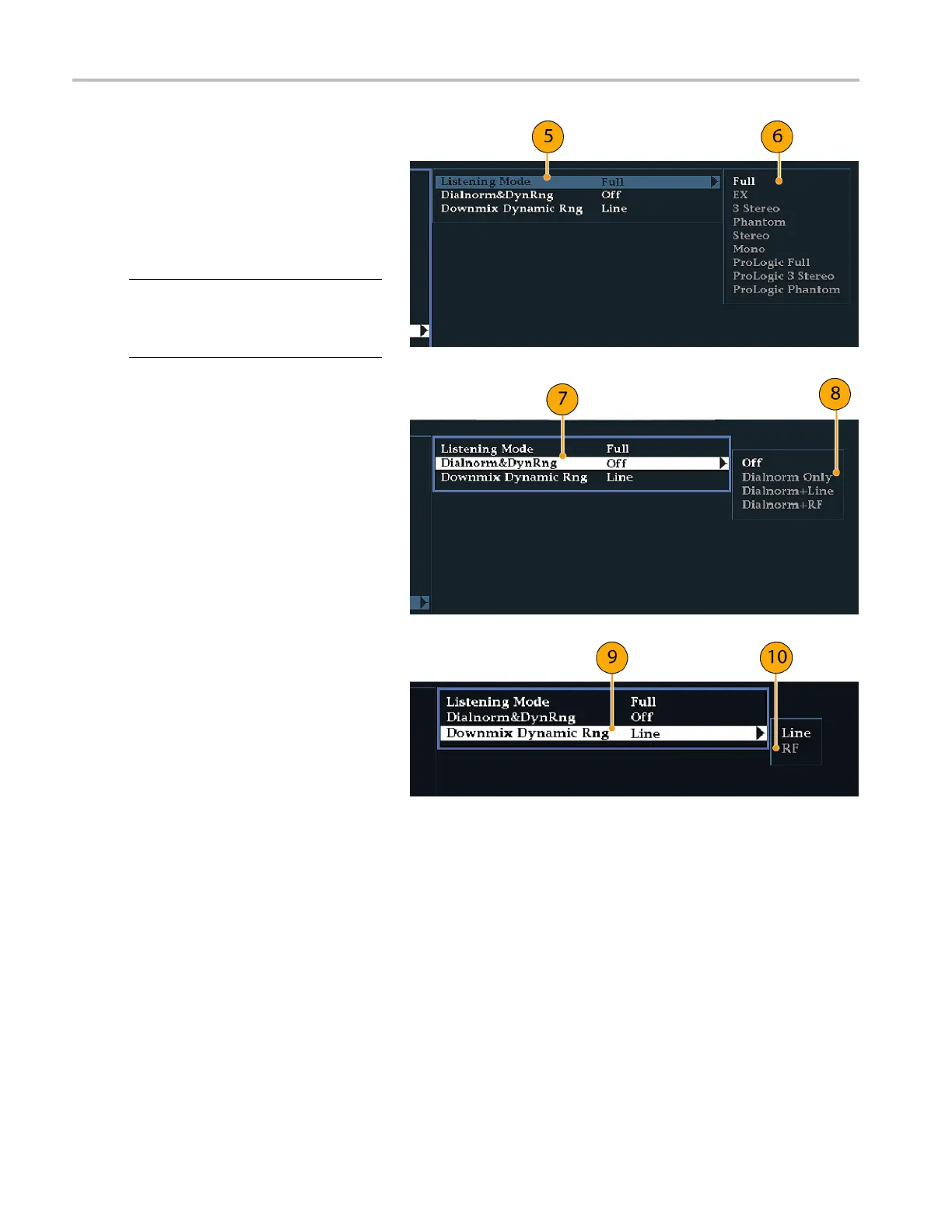

5. Select the Dolby D Listening Mode,
which controls how the Dolby sound
channels map t
o the level bars and
surround-sound elements in the Audio
Display and outputs.
6. Choose Full or a mode to which y ou
want to downm
ix. (See page 111, Usage
Notes.)
NOTE. Dolby content of the signal at the
Dolby input
must be sufficient to downmix
to the mode selected or the setting has no
effect.
7. Select Dia
lnorm&DynR ng .
8. Select Of
f or choose Dialnorm Only,
Dialnorm+RF,orDialNo rm+L ine.RF
and Line are m odes of Dynamic Range
Control (
compression) factors that are
applied w hen decoding Dolby content for
monitoring or output.
9. Select Downmix Dynam ic Rng.
10. Toggle to Line or RF. These Dynamic
Range Control (compression) factors are
applied when downmixing to the various
Dolby D Listening Modes.
