Tektronix WFM7020 User Manual

Getting Acquain
tedWithYourInstrument

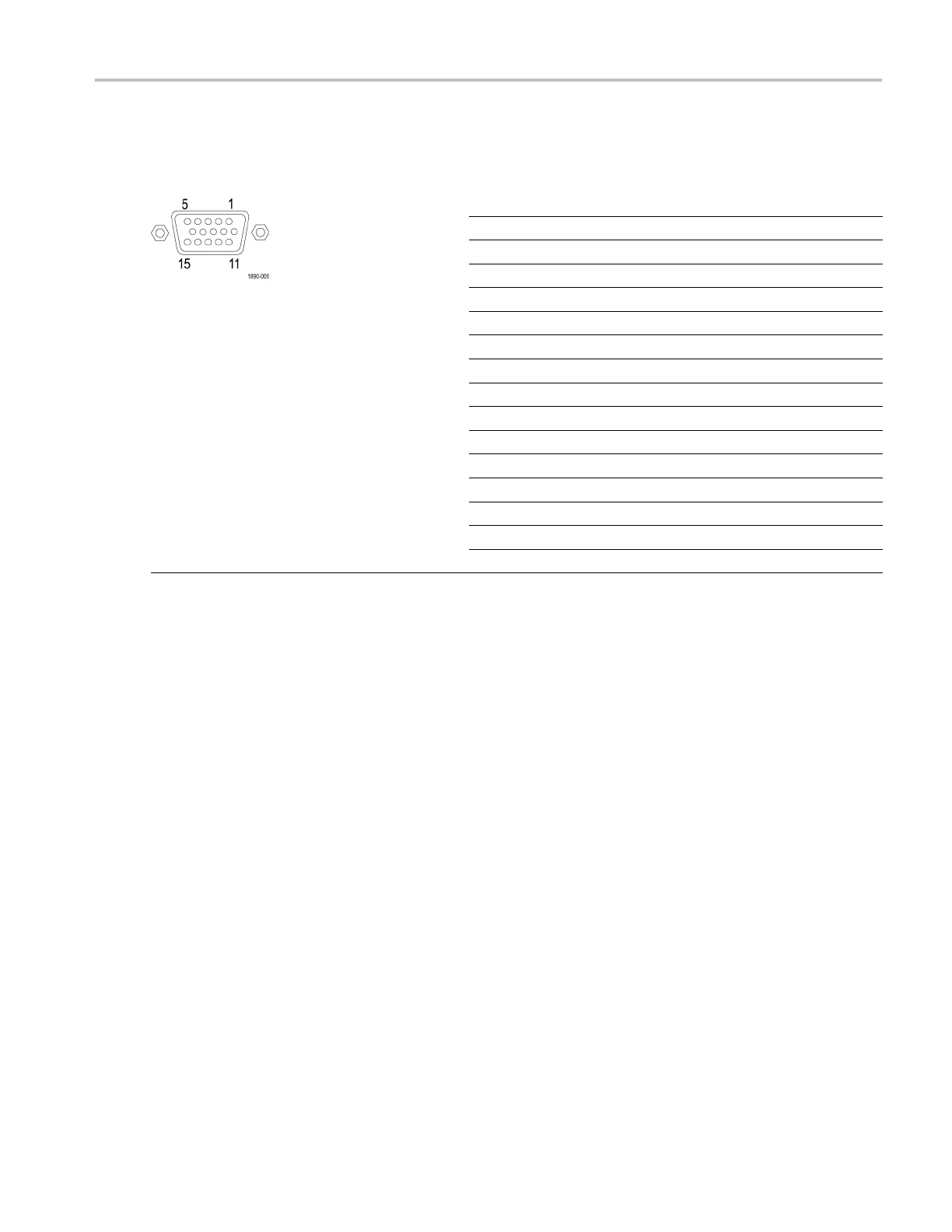

Pix Mon Connector Pin Assignment
This is the video picture output. The output is compatible with standard analog PC monitors, either CRT or LCD-based. The
PIX MO N connector is a 15-pin D -type connector with socket contacts.
Pin Pin name
1 Red Video
2
Green Video
3 Blue Video
4 Not connected
5
Ground
6
Red Ground
7
Green Ground
8
Blue Ground
9
Not C onnected
10
Not C onnected
11
Not C onnected
12
Not C onnected
13
Horizontal S ync
14
Vertical Sync
15
Not C onnected
Waveform Monitors Quick Start User Manual 17
