Using Alarms

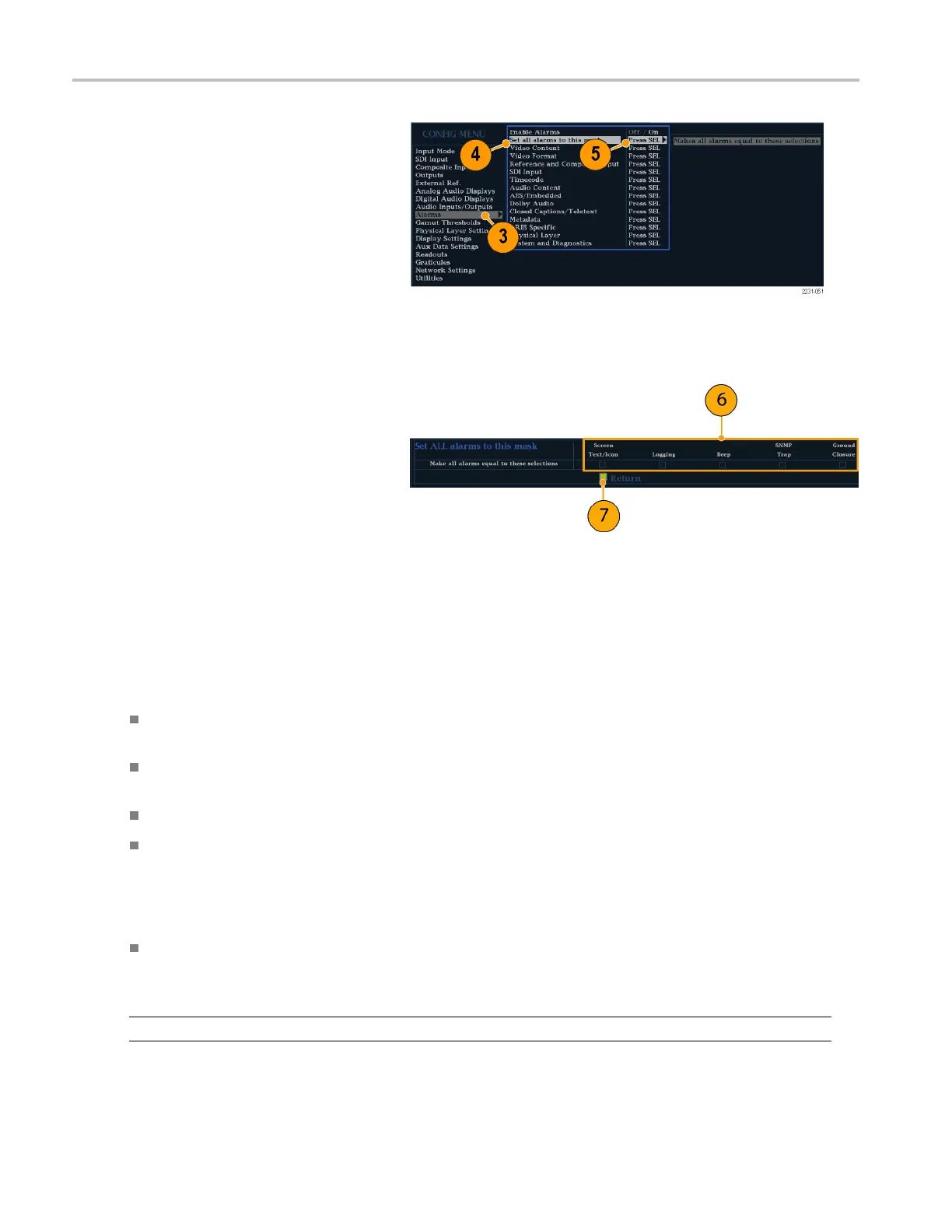

To Set Alarm Res
ponses Globally
1. Press the CONFIG button to display the
Configuration menu.
2. Use the arrow keys and SEL button to
make selections in the steps that follow.
3. Select Alarms.
4. Navigate to Set all Alarms to this Mask.
5. Press SEL to display a table for setting
the allowed responses for alarm settings
to be applied to all alarm categories.
6. For each alarm listed in the table, select
the box to place (or remove) an X in the
box under each response that you want
enabled (or disabled) for that alarm. (See
page 114, Possible Alarm Responses.)
7. Navigate to highlight the Return box,
and press the SEL buttontoreturntothe
Configuration menu.
This sets alarms for all alarm categories
to the setting on the global mask.
Possible Alarm Responses
For each available a larm, you can select up to four of the responses listed. If you do not select a notification method
for an erro
r, you will not be notified if that error occurs.
Screen Tex
t/Icon. An icon appears on the display. This notification method is disabled when the Configuration menu i s
open. This option also enables alarm reporting with color on the Status screen.
Logging. The instrument makes an entry in the Event Log. Refer to Status Display in the Display Information section
of the WVR6020, WVR7020, and WVR7120 Technical Reference manual.
Beep. The instrument makes an audible alarm.
SNMP Trap. The instrument sends an SNMP trap out the Ethernet port for a remote notification that an alarm condition
occurred
. You must enable and configure the instrument for SNMP control using the Network Settings submenu of the
Configuration menu before SNMP traps can be sent. Refer to the WFM, WVR, and AMM Management Information
Base (MIB) Technical Reference (located on your User Documentation CD) for more information about using SNMP
alarm not
ifications.
Ground Cl
osure. The instrument sends a signal out the Remote port for a remote notification that an alarm condition
occurred. You must enable the Remote Control P ort in the Communications submenu of the Configuration menu
before notifications can be sent.
NOTE. Yo
u can monitor alarm status. (See page 117, Monitoring Alarms.)
114 Waveform Rasterizers Quick Start User Manual
