11.4 Installing Detectors, Input and Output Devices, and Other
Devices
11.4.1 Connecting Zones and Outputs
i
Note
Measure the wiring to ensure there are no shorts before connecting the wiring
to the control panel.
Connecting or adding zone, devices, outputs etc shall be done when all
power to the control power is disconnected (AC and batteries disconnected).
Connect the zones, 24 volt output and control panel outputs (dialer, horn, programmable
outputs and relays) to the control panel.
!
Warning
Do not connect the extinguishing activation circuits at this time. Use a
dummy load.

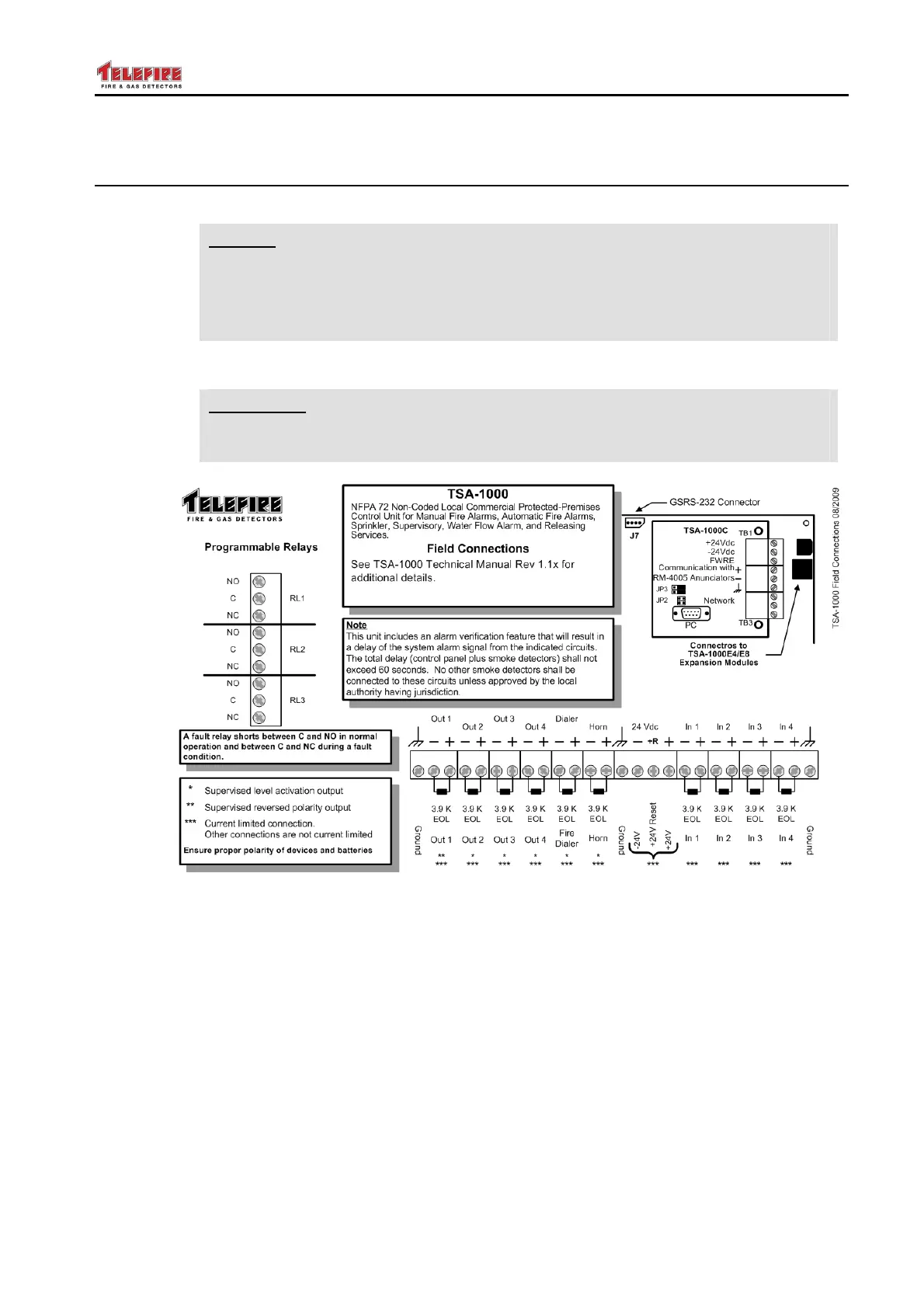

Figure 12 Main Board Connectors
