Part Names and Functions

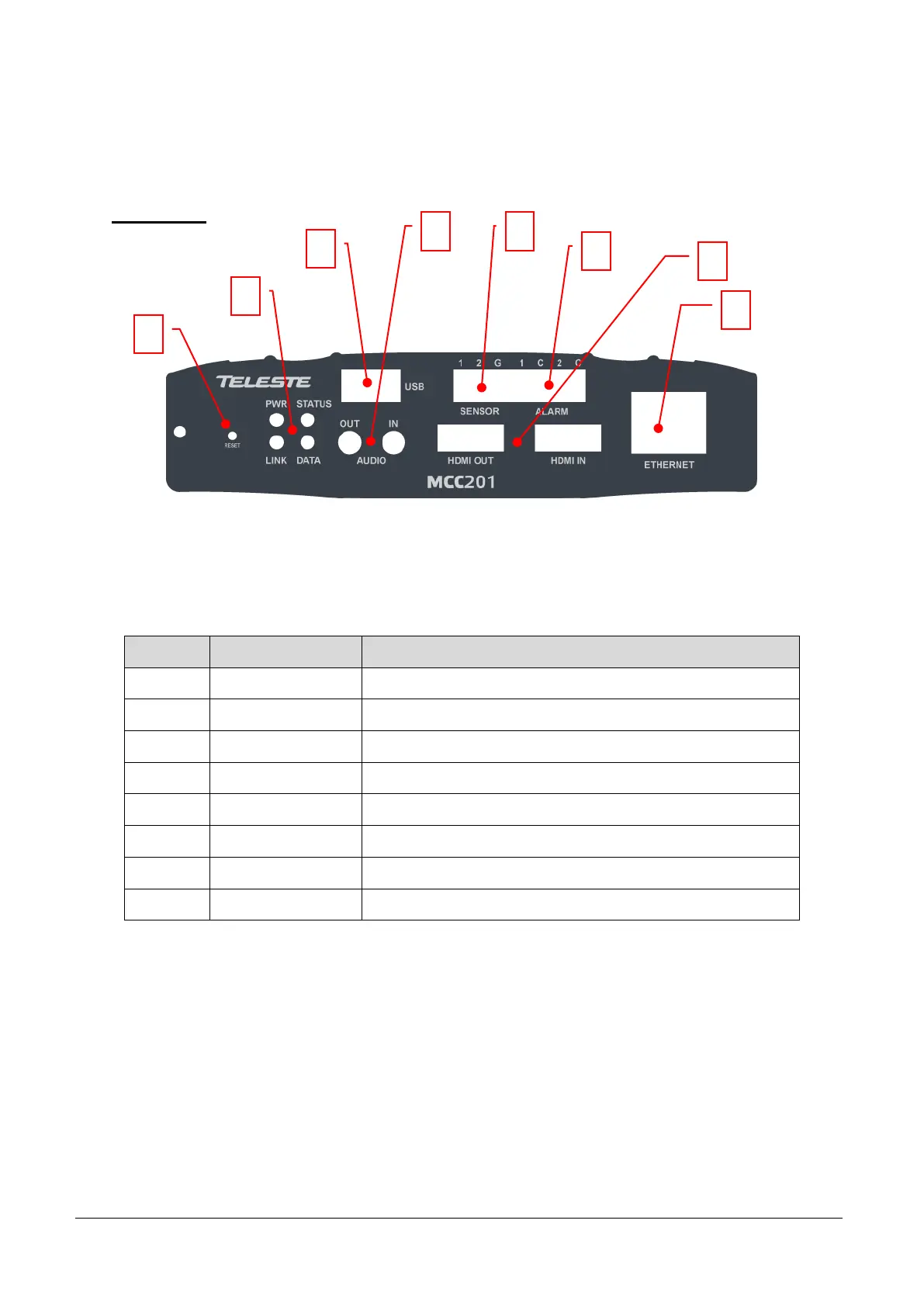

Front View
Position Description Function
1 Reset button Initialization of network setting
2 LEDs Display power On/Off condition, Link, Status and data
3 USB USB (2.0) port for any USB device
4 Audio In, Out Audio Input and Output
5 Sensor Sensor Input
6 Alarm Alarm or Relay Output
7 HDMI In, Out HDMI Video Input and Output
8 LAN (Ethernet) 10/100Base-TX electrical Ethernet interface
8
1
4
7
5
2
3
6
