Teleste MCC201 - Rear View

4 • 1. Introduction
MCC201/MCC201H User manual

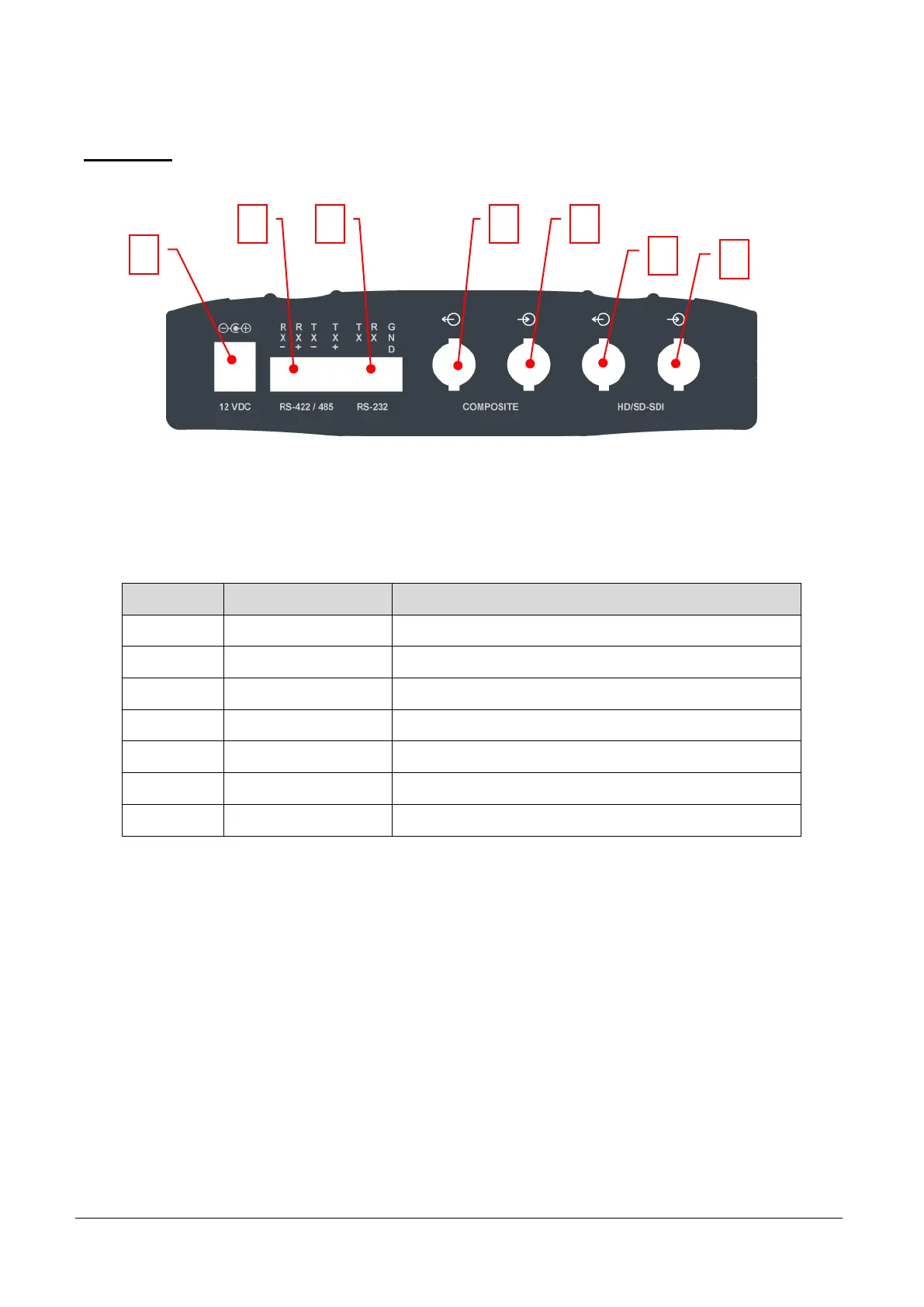

Rear View
Position Description Function
1 POWER In DC +12V power input
2 RS-422/485 Serial port for PTZ control and etc.
3 RS-232 Serial port for PTZ control and etc.
4 Composite Out
Composite Video Output
5 Composite In
Composite Video Input
6 HD/SD-SDI Out
HD/SD-SDI Video Output (MCC201H, not in use)
7 HD/SD-SDI In
HD/SD-SDI Video Input (MCC201H, not in use)
1
2 3 4 5
6
7
