ISS 8, SECTION 573-118-700TC

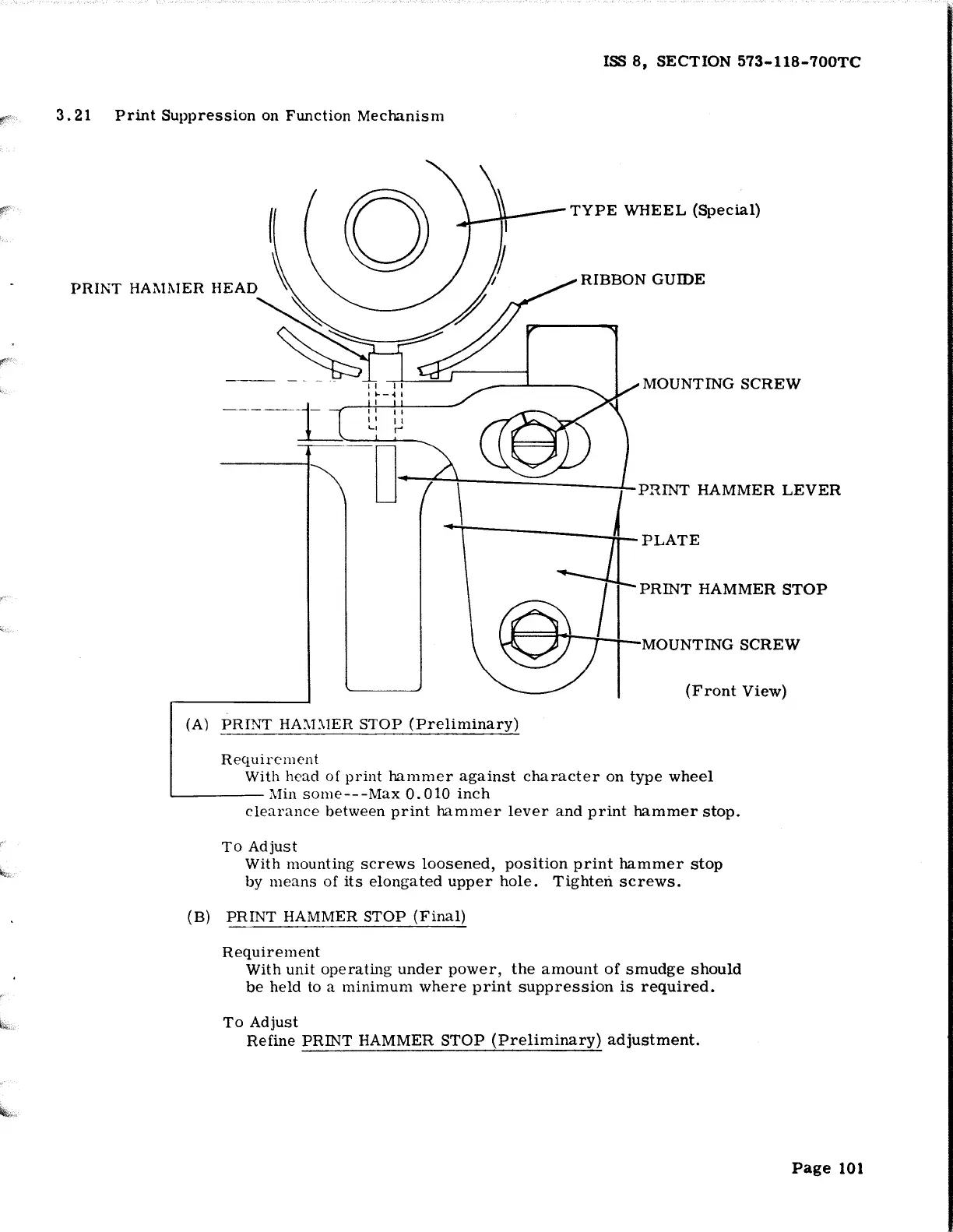

3. 21 Print Suppression on Function Mechanism
0
TYPE WHEEL (Special)
PRINT HA~ll\lER HEAD
RIBBON GUIDE
MOUNTING
SCREW
..... , n PLATE
PRINT HAMMER STOP
MOUNTING SCREW
(Front View)
(A) PRI~'T HA:\DTER STOP (Preliminary)
Requirement
With head of print hammer against character on type wheel
L------l\Iin some---Max 0.010 inch
clearance between print hammer lever and print hammer stop.
To Adjust
With mounting screws loosened, position print hammer stop
by means of its elongated upper hole. Tighten screws.
(B) PRINT HAMMER STOP (Final)
Requirement
With unit operating under power, the amount of smudge should
be held to a minimum where print suppression is required.
To Adjust
Refine PRINT HAMMER STOP (Preliminary) adjustment.
Page 101
