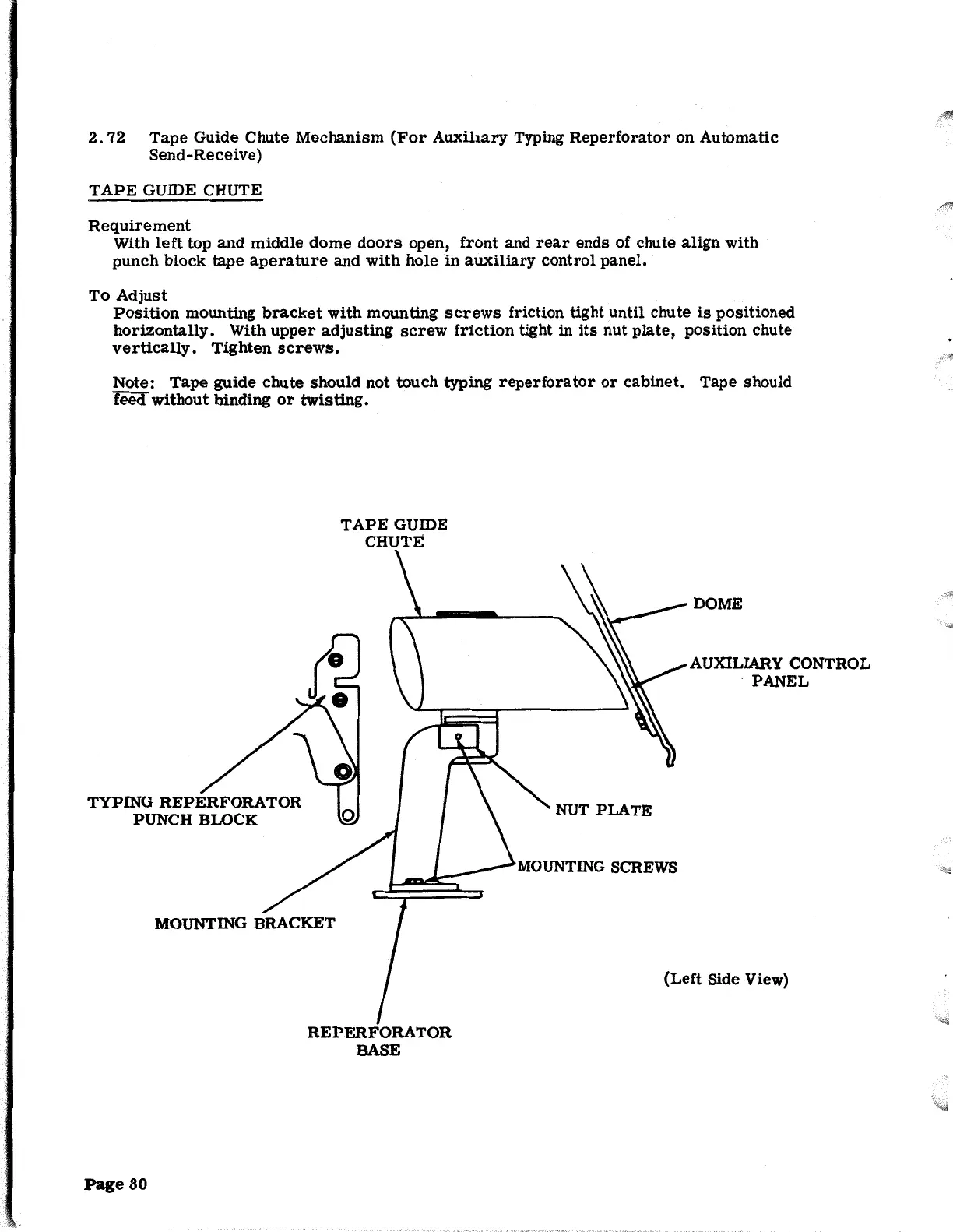

Teletype 28 - Tape Guide Chute Mechanism; Tape Guide Chute (Auxiliary Typing Reperforator - ASR Set); Tape Guide

2. 72 Tape Guide Chute Mechanism (For Auxiliary Typing Reperforator on Automatic
Send- Receive)
TAPE GUIDE CHUTE
Requirement
With left top and middle dome doors open, front and rear ends of chute align with
punch block tape aperature and with hole in auxiliary control panel.
To Adjust
Position mounting bracket with mounting screws friction tight until chute is positioned
horizontally. With upper adjusting screw friction tight in its nut plate, position chute
vertically. Tighten screws.
Note: Tape guide chute should not touch typing reperforator or cabinet. Tape should
reea without binding or twisting.
TYPING REPERFORATOR
PUNCH BLOCK
TAPE GUIDE
CHUTE
MOUNTING BRACKET
Page 80
REPERFORATOR
BASE
NUT PLATE
MOUNTING SCREWS
DOME
AUXILIARY CONTROL
·PANEL
(Left Side View)
