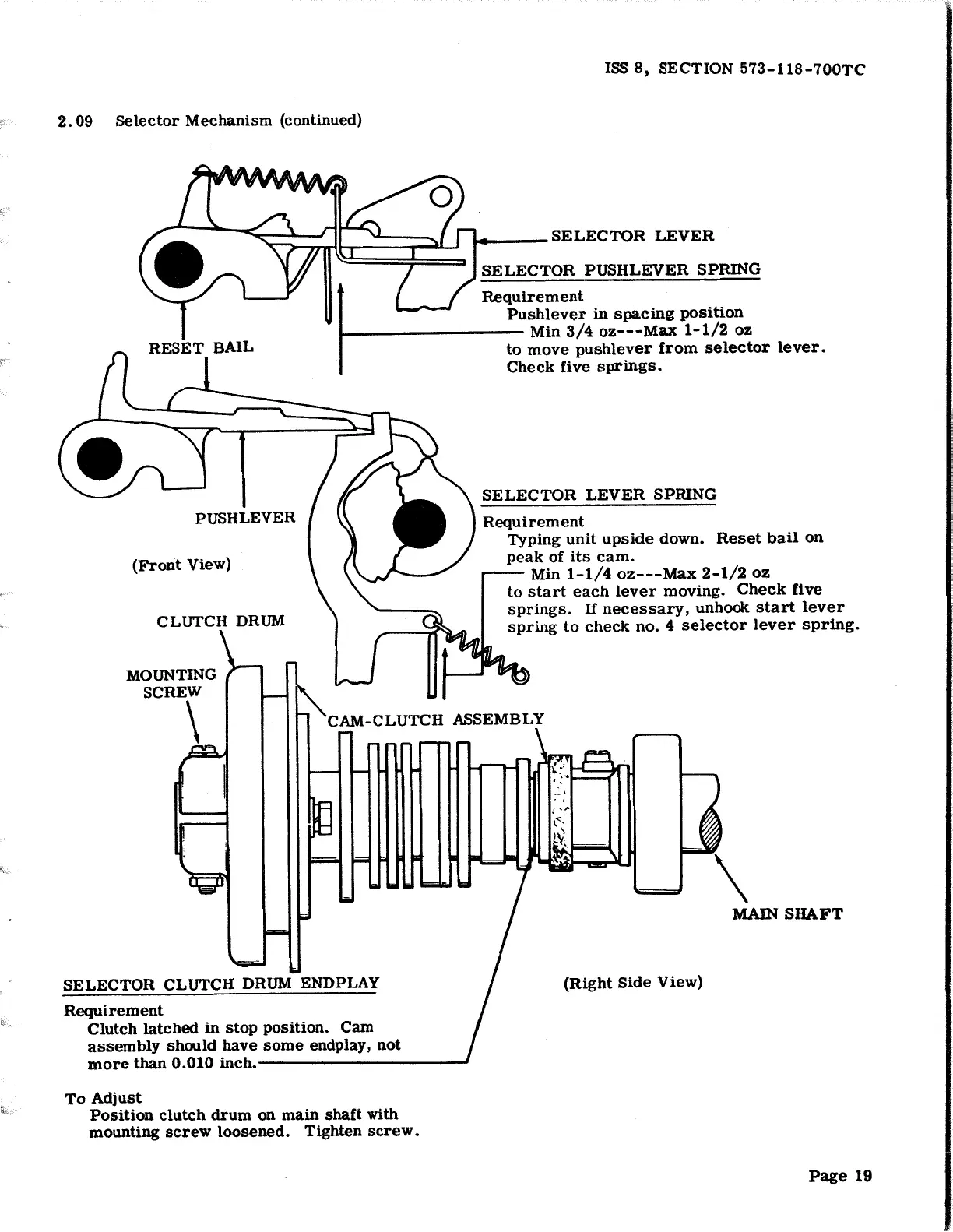

Teletype 28 - Selector Clutch Drum Endplay; Selector Lever Spring; Selector Pushlever Spring

ISS 8, SECTION 573-118-700TC
2. 09 Selector Mechanism (continued)
,. SELECTOR LEVER
SELECTOR PUSHLEVER SPRING
I
LJ Requirement
- Pushlever in spacing position
1---------- Min 3/4 oz---Max 1-1/2 oz
to move pushlever from selector lever.
Check five springs.·
PUSHLEVER
(Front View)
CLUTCH
DRUM
SELECTOR CLUTCH DRUM ENDPLAY
Requirement
Clutch latched in stop position. Cam
assembly should have some endplay, not
more than 0.010 inch.-----------1
To Adjust
Position clutch drum on main shaft with
mounting screw loosened. Tighten screw.
SELECTOR LEVER SPRING
Requirement
Typing unit upside down. Reset bail on
peak of its cam.
Min 1-1/4 oz---Max 2-1/2 oz
to start each lever moving. Check five
springs. If necessary, unhook start lever
spring to check no. 4 selector lever spring.
MAIN SHAFT
(Right Side View)
Page 19
