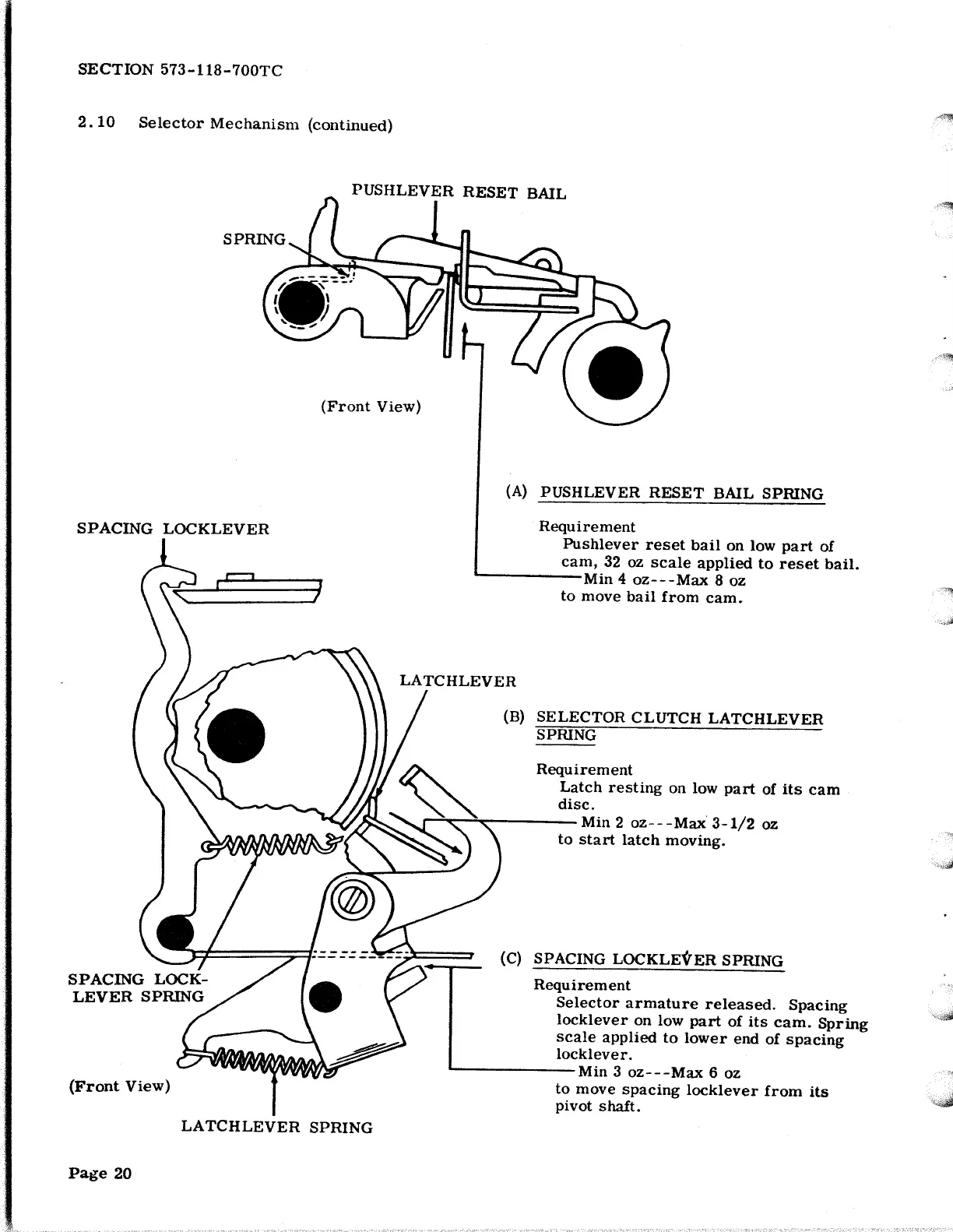

SECTION 573-118-700TC
2. 10 Selector Mechanism (continued)
PUSHLEVER RESET BAIL
(Front View)
SPACING LOCKLEVER
(Front View)
LATCHLEVER SPRING
Page 20
(A) PUSHLEVER RESET BAIL SPRING
Requirement
Pushlever reset bail on low part of
cam, 32 oz scale applied to reset bail.
L------Min 4 oz---Max 8 oz
to move bail from cam.
(B) SELECTOR CLUTCH LATCHLEVER
SPRING
Requirement
Latch resting on low part of its cam
disc.
~'~-"~-----Min 2 oz---Max 3-1/2 oz
to start latch moving.
(C) SPACING LOCKLEVER SPRING
Requirement
Selector armature released. Spacing
locklever on low part of its cam. Spring
scale applied to lower end of spacing
locklever.
'--------Min 3 oz---Max 6 oz
to move spacing locklever from its
pivot shaft.
