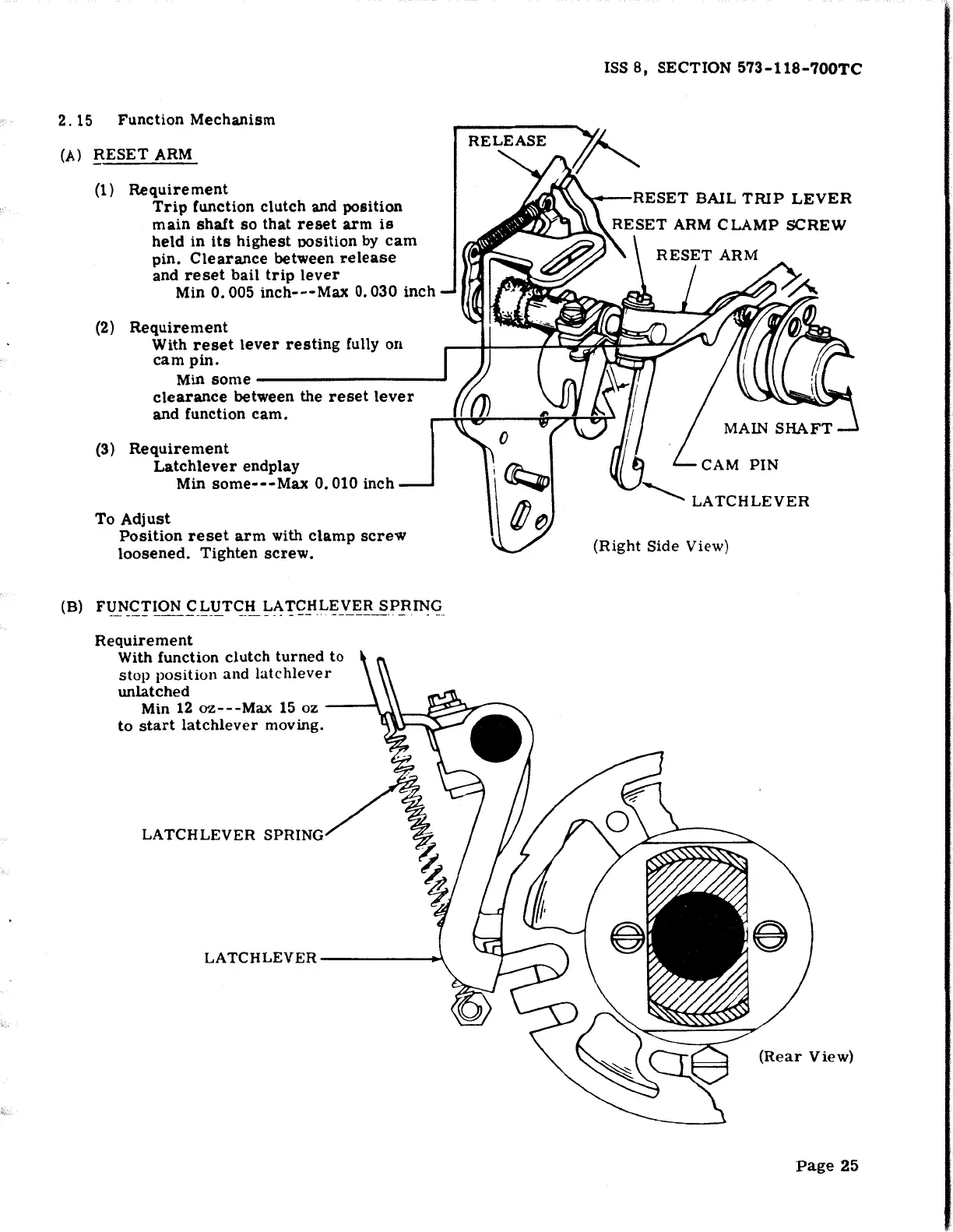

2. 15 Function Mechanism
(A) RESET ARM
(1) Requirement
Trip function clutch and position
main shaft so that reset arm is
held in its highest oosition by cam
pin. Clearance between release
and reset bail trip lever
Min 0. 005 inch---Max 0. 030 inch
(2) Requirement
With reset lever resting fully on
cam pin.
Min some -----------'
clearance between the reset lever
and function cam.
(3) Requirement
Latchlever endplay
Min
some---Max 0. 010 inch
To Adjust
Position reset arm with clamp screw
loosened. Tighten screw.
(B) FUNCTION CLUTCH LATCHLEY._~~-~PRING
Requirement
With function clutch turned to
stop position and latchlever
unlatched
Min 12 oz---Max 15 oz \
to start latchlever moving.
LATCHLEVER SPR
LATCHLEVER----------~
ISS 8, SECTION 573-118-700TC
RELEASE
'-RESET BAIL TRIP LEVER
CAM PIN
I
~ LATCHLEVER
(Right Side View)
(Rear View)
Page 25
