ISS 8, SECTION 573-118-700TC

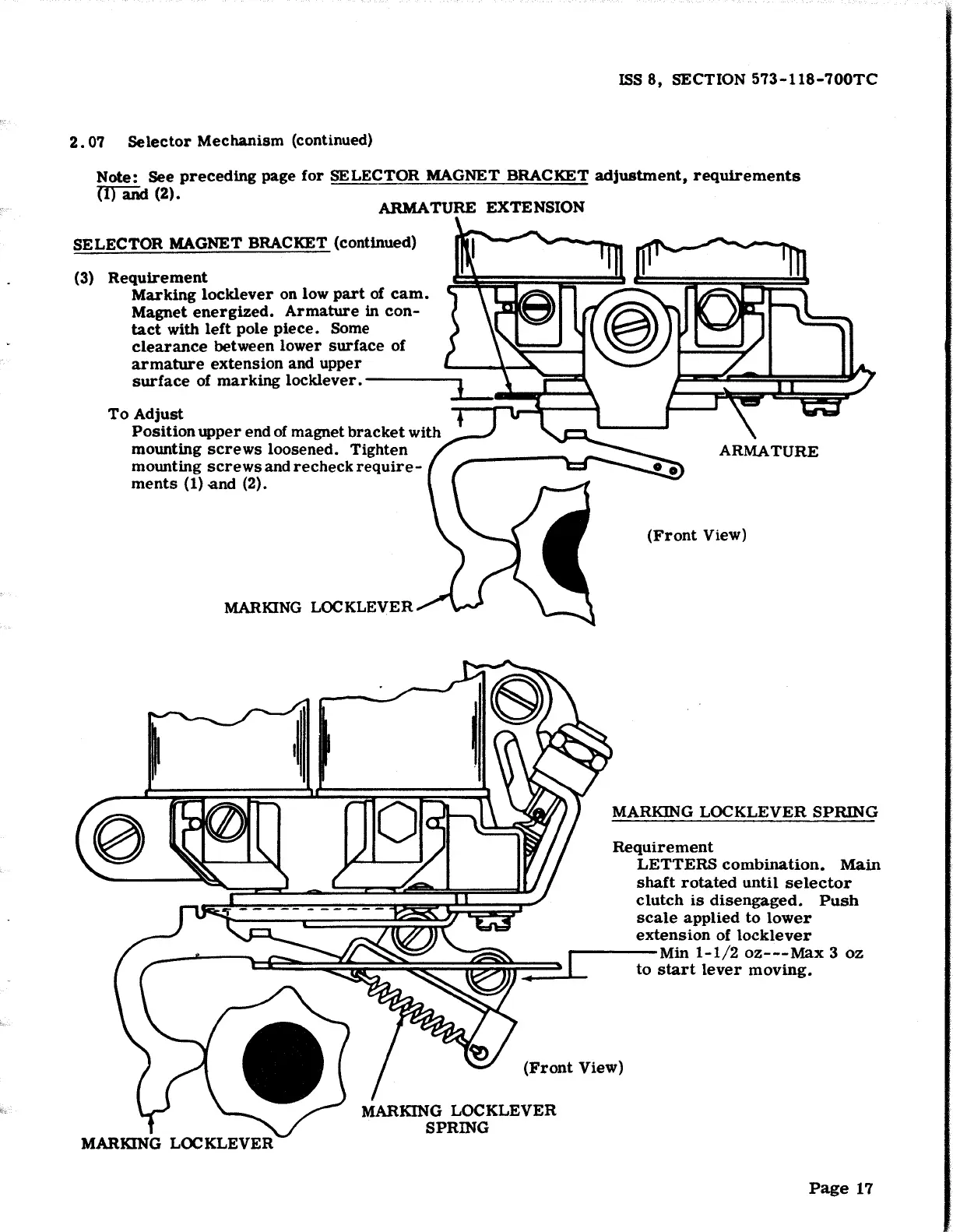

2. 07 Selector Mechanism (continued)
Note: See preceding page for SELECTOR MAGNET BRACKET adjustment, requirements
{Ifiiid (2).
ARMATURE EXTENSION
SELECTOR MAGNET BRACKET (continued)
(3)
Requirement
Marking locklever on low part of cam.
Magnet energized. Armature in con-
tact with left pole piece. Some
clearance between lower surface of
armature extension and upper
surface of marking locklever. -----,-.
..1..-. 1 ,. \
To Adjust
Position upper end of magnet bracket with
mounting screws loosened. Tighten
mounting screws and recheck require-
ments (1) .and (2).
MARKING LOCKLEVER
(Front View)
MARKING
LOCKLEVER SPRING
Requirement
LETTERS combination. Main
shaft rotated until selector
clutch is disengaged. Push
scale applied to lower
extension of locklever
e lC?:: ~>~ ~ I Min 1-1/2 oz--:-Max 3 oz
- ~ ~~ ,. ' to start lever movmg.
(Front View)
MARKING LOCKLEVER
SPRING
Page 17
