Teletype 28 - Tape Guide (Early Design); Tape Guide (Latest Design); Tape Guide Spring

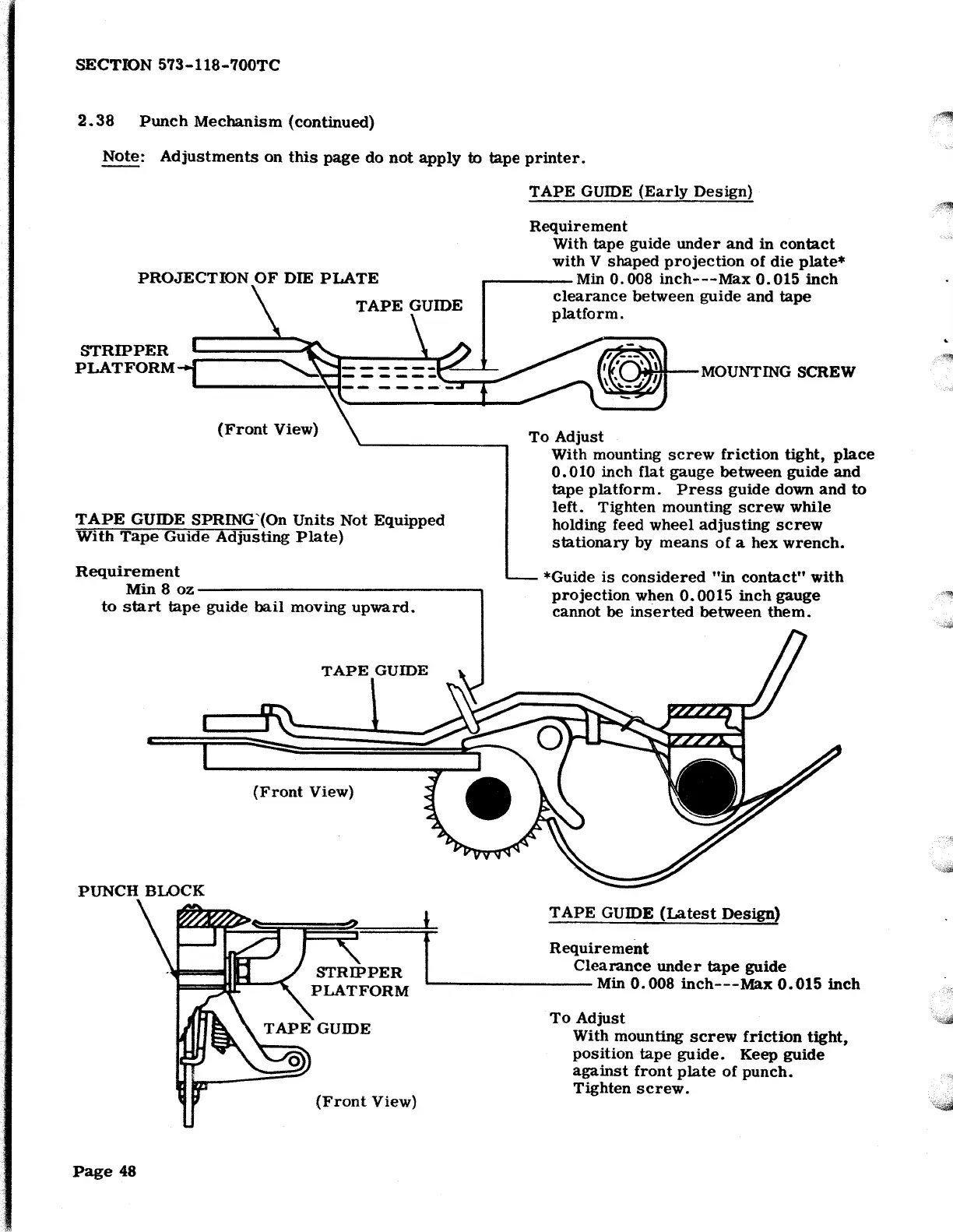

SECTION 573-118-700TC
2. 38 Punch Mechanism (continued)
Note: Adjustments on this page do not apply to tape printer.
PROJECTION OF DIE PLATE
TAPE GUIDE
(Front View)
TAPE GUIDE SPRING '(On Units Not Equipped
With Tape Guide Adjusting Plate)
Requirement
TAPE GUIDE (Early Design)
Requirement
With tape guide under and in contact
with V shaped projection of die plate*
.------Min 0.008 inch---Max 0.015 inch
clearance between guide and tape
platform.
l .. :n MOUNTING SCREW
To Adjust
With mounting screw friction tight, place
0.010 inch flat gauge between guide and
tape platform. Press guide down and to
left. Tighten mounting screw while
holding feed wheel adjusting screw
stationary by means of a hex wrench.
Min 8 oz-----------------.
*Guide is considered "in contact" with
projection when 0. 0015 inch gauge
cannot be inserted between them.
to start tape guide bail moving upward.
TAPE GUIDE
{Front View)
PUNCH BLOCK
(Front View)
Page 48
TAPE GUIDE (Latest Design)
Requirement
Clearance under tape guide
'---------Min 0.008 inch---Max 0.015 inch
To Adjust
With mounting screw friction tight,
position tape guide. Keep guide
against front plate of punch.
Tighten screw.
