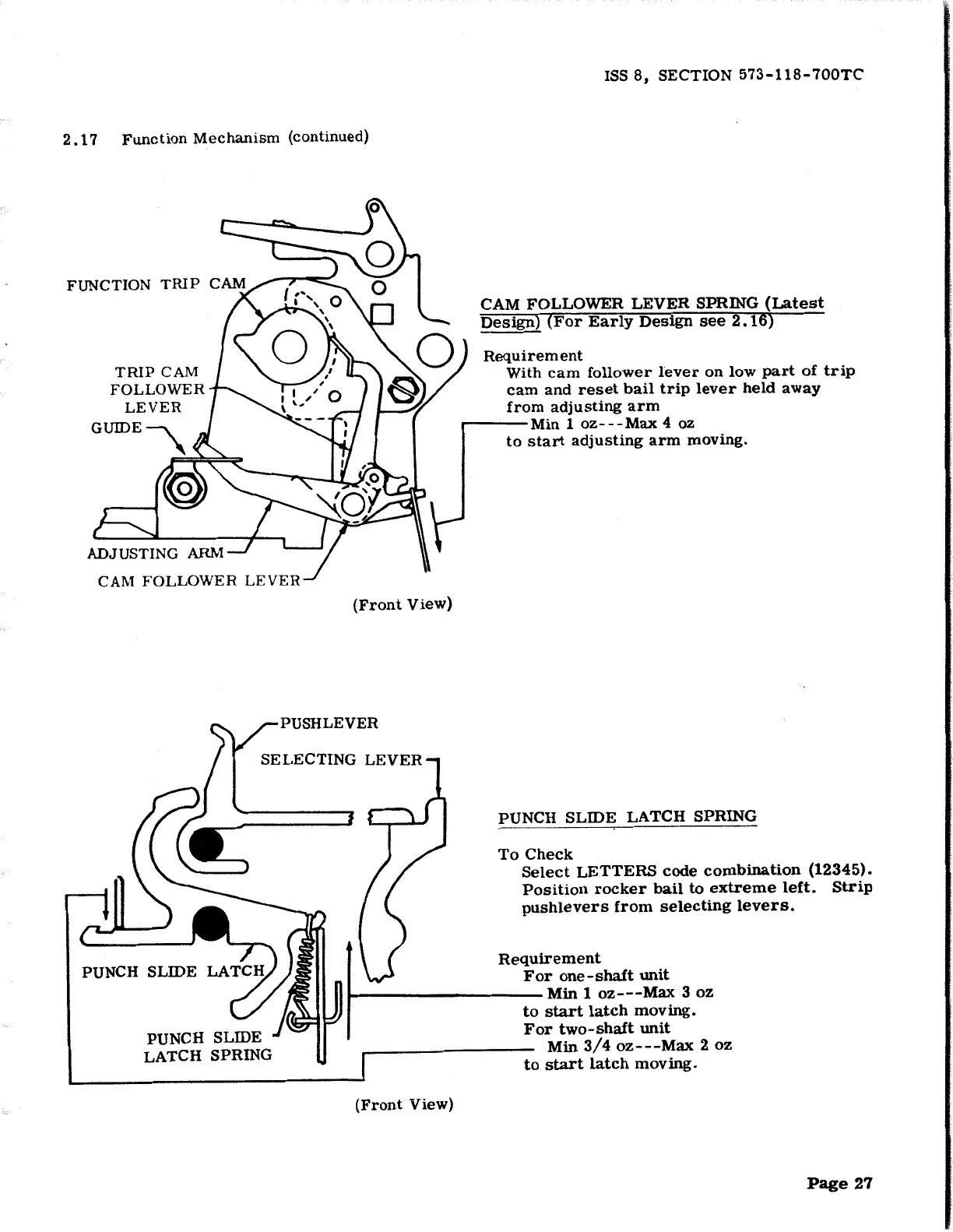

2. 17 Function Mechanism (continued)
TRIP C.Al'v1
FOLLOWER
LEVER
GUIDE~ " '>.
j I < <
CAM FOLLOWER LEVER
(Front View)
PUSH LEVER
SELECTING
LEVER
ISS 8, SECTION 573-118-700TC
CAM FOLLOWER LEVER SPRING (Latest
Design) (For Early Design see 2.16)
Requirement
With cam follower lever on low part of trip
cam and reset bail trip lever held away
from adjusting arm
,-----Min 1 oz---Max 4 oz
to start adjusting arm moving.
PUNCH SLIDE LATCH SPRING
To Check
Select LETTERS code combination {12345).
Position rocker bail to extreme left. Strip
pushlevers from selecting levers.
Requirement
For one-shalt unit
t----------Min 1 oz---Max 3 oz
(Front View)
to start latch moving.
For two-shaft unit
Min 3/4 oz---Max 2 oz
to start latch moving.
Page 27
