Teletype 28 - Slack Tape Mechanism; Clamp Plate Screw with Disc (Latest Design); Clamp Plate Spring (Early Design); Clamp Plate Spring (Latest Desi~;N)

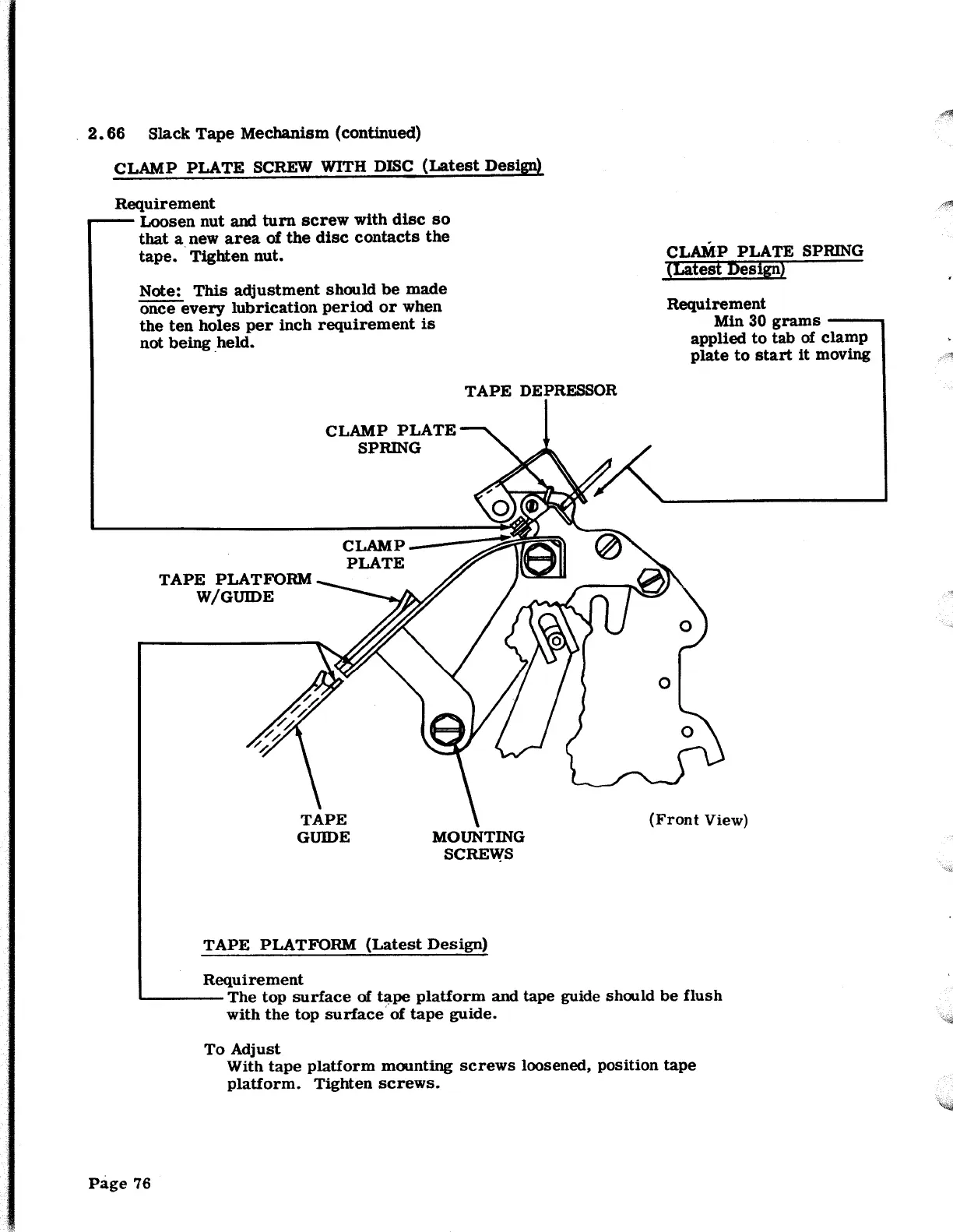

2. 66 Slack Tape Mechanism (continued)
CLAMP PLATE SCREW WITH DISC (Latest Design)
Requirement
r-- Loosen nut and turn screw with disc so
that a new area of the disc contacts the
tape. Tighten nut.
Note: This adjustment should be made
~every lubrication period or when
the ten holes per inch requirement is
not being beld.
TAPE PLATFORM
W/GUIDE
CLAMP PLATE
SPRING
CLAMP-
PLATE
TAPE DEPRESSOR
MOUNTING
SCREWS
TAPE PLATFORM (Latest Design)
Requirement
CLAMP PLATE SPRING
(Latest Design)
Requirement
Min 30 grams ---.
applied to tab of clamp
plate to start it moving
(Front View)
'------ The top surface of tape platform and tape guide should be flush
with the top surface of tape guide.
Page 76
To Adjust
With tape platform mounting screws loosened, position tape
platform. Tighten screws.
