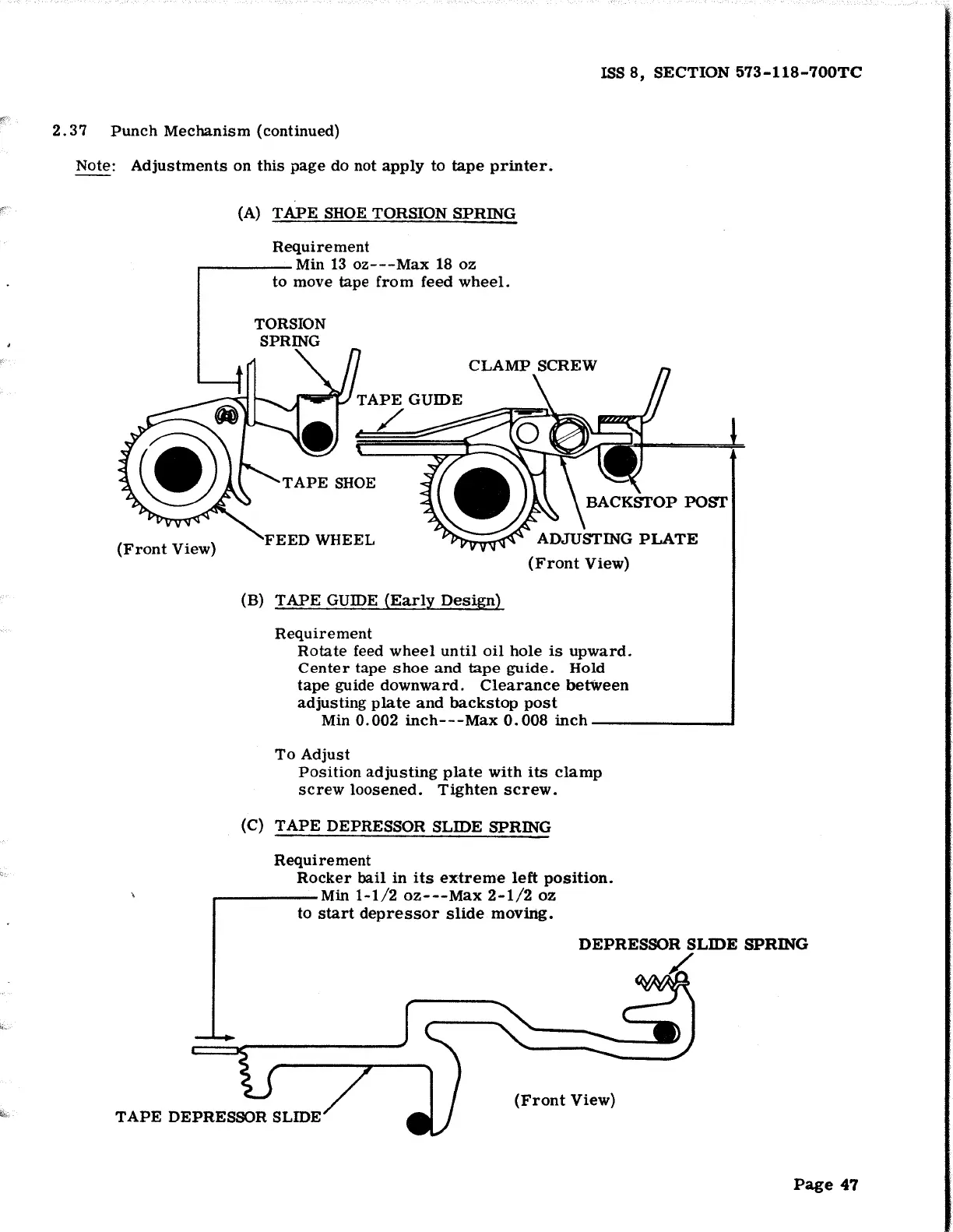

ISS 8, SECTION 573-118-?00TC
2.37 Punch Mechanism (continued)
Note:
Adjustments on this page do not apply to tape printer.
(A) TAPE SHOE TORSION SPRING
Requirement
r-----Min 13 oz---Max 18 oz
(Front View)
to move tape from feed wheel.
TORSION
SPRING
TAPE SHOE
FEED WHEEL
(B) TAPE GUIDE (Early Design)
Requirement
(Front View)
Rotate feed wheel until oil hole is upward.
Center tape shoe and tape guide. Hold
tape guide downward. Clearance between
adjusting plate and backstop post
Min 0.002 inch---Max 0.008 inch--------'
To Adjust
Position adjusting plate with its clamp
screw loosened. Tighten screw.
(C) TAPE DEPRESSOR SLIDE SPRING
Requirement
Rocker bail in its extreme left position.
,..-----Min 1-1/2 oz---Max 2-1/2 oz
to start depressor slide moving.
DEPRESSOR SLIDE SPRING
(Front View)
Page 47
