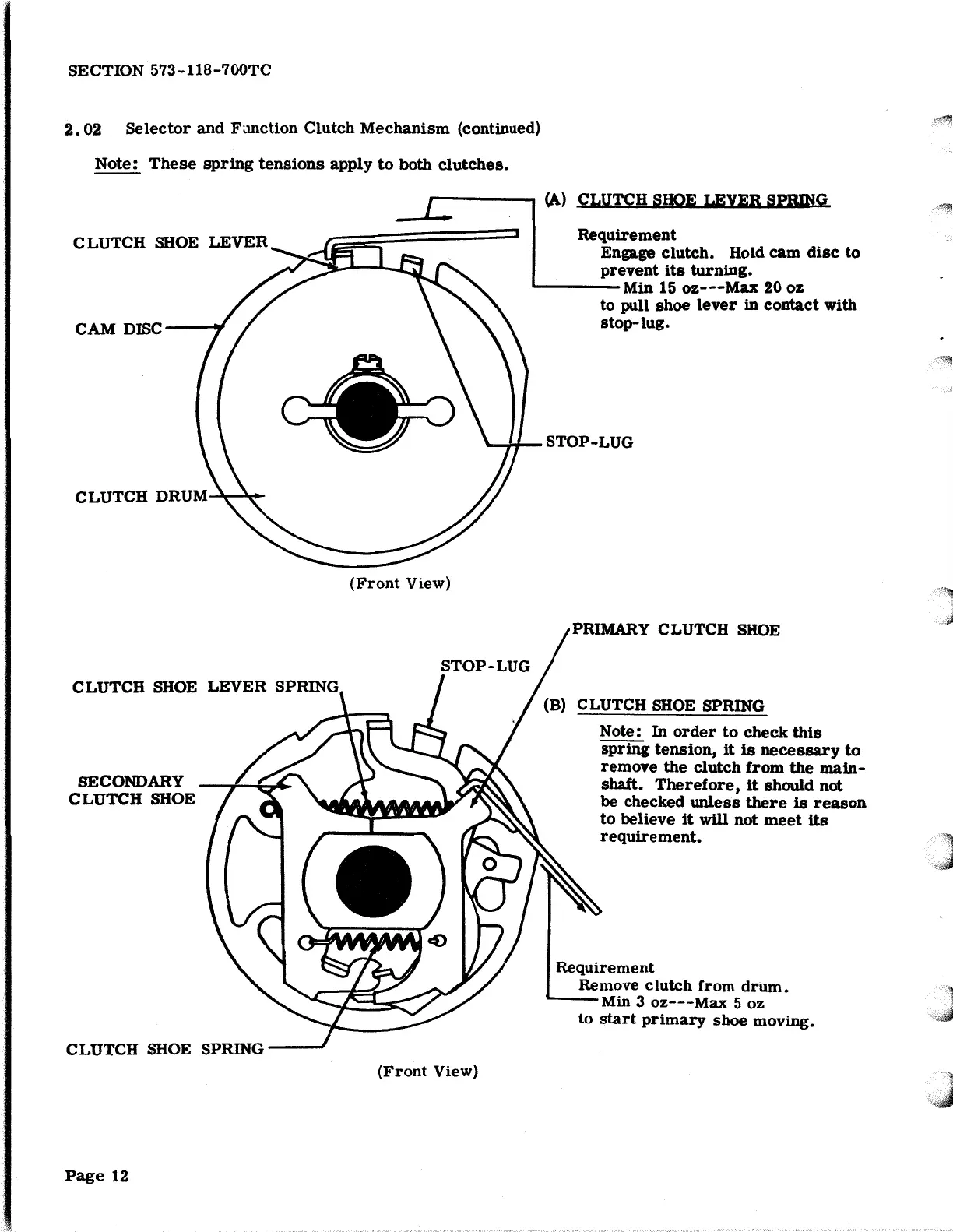

2. 02 Selector and F~ction Clutch Mechanism (continued)
Note: These spring tensions apply to both clutches.
CLUTCH SHOE LEVER
CAM DISC "'
CLUTCH SHOE LEVER SPRING
Requirement
Engage clutch. Hold cam disc to
prevent its turning.
'-----Min 15 oz---Max 20 oz
to pull shoe lever in contact with
stop-lug.
' • • STOP-LUG
I L
SECONDARY
CLUTCH SHOE
CLUTCH SHOE SPRING---'
Page 12
(Front View)
(Front View)
PRIMARY CLUTCH SHOE
CLUTCH SHOE SPRING
Note: In order to check this
spring tension, it is necessary to
remove the clutch from the main-
shaft. Therefore, it should not
be checked unless there is reason
to believe it will not meet its
requirement.
Requirement
Remove
clutch from drum.
L----Min 3 oz---Max 5 oz
to
start primary shoe moving.
.·~
