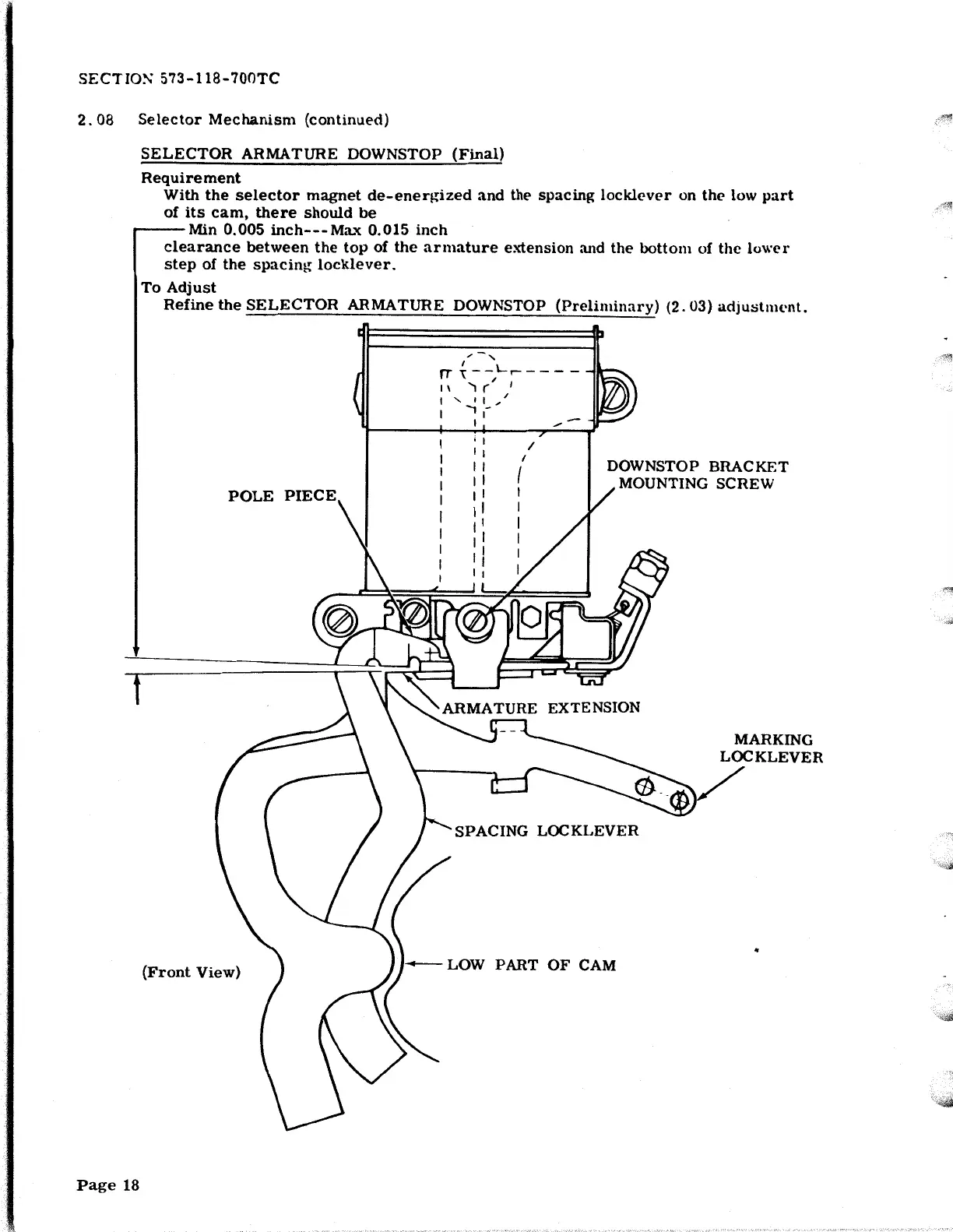

Teletype 28 - Nary) (Two Button Armature)

SECTIO~ 573-118-700TC
2. 08 Selector Mechanism (continued)
SELECTOR ARMATURE DOWNSTOP (Final)
Requirement
With the selector magnet de-energized and the spacing locklever on the low part
of its cam, there should be
.----Min 0.005 inch---Max 0.015 inch
Page 18
clearance between the top of the armature extension and the bottom of the lower
step of the spacing locklever.
To Adjust
Refine the SELECTOR ARMATURE DOWNSTOP (Preliminary) (2. 03) adjustmt•nt.
(Front View)
,-
' '
rr,--L-.------
1 \ '1 (~ I
..... I I /
..., _,
I
I
DOWNSTOP BRACKET
MOUNTING SCREW
MARKING
LOCKLEVER
,/
SPACING LOCKLEVER
-LOW PART OF CAM
