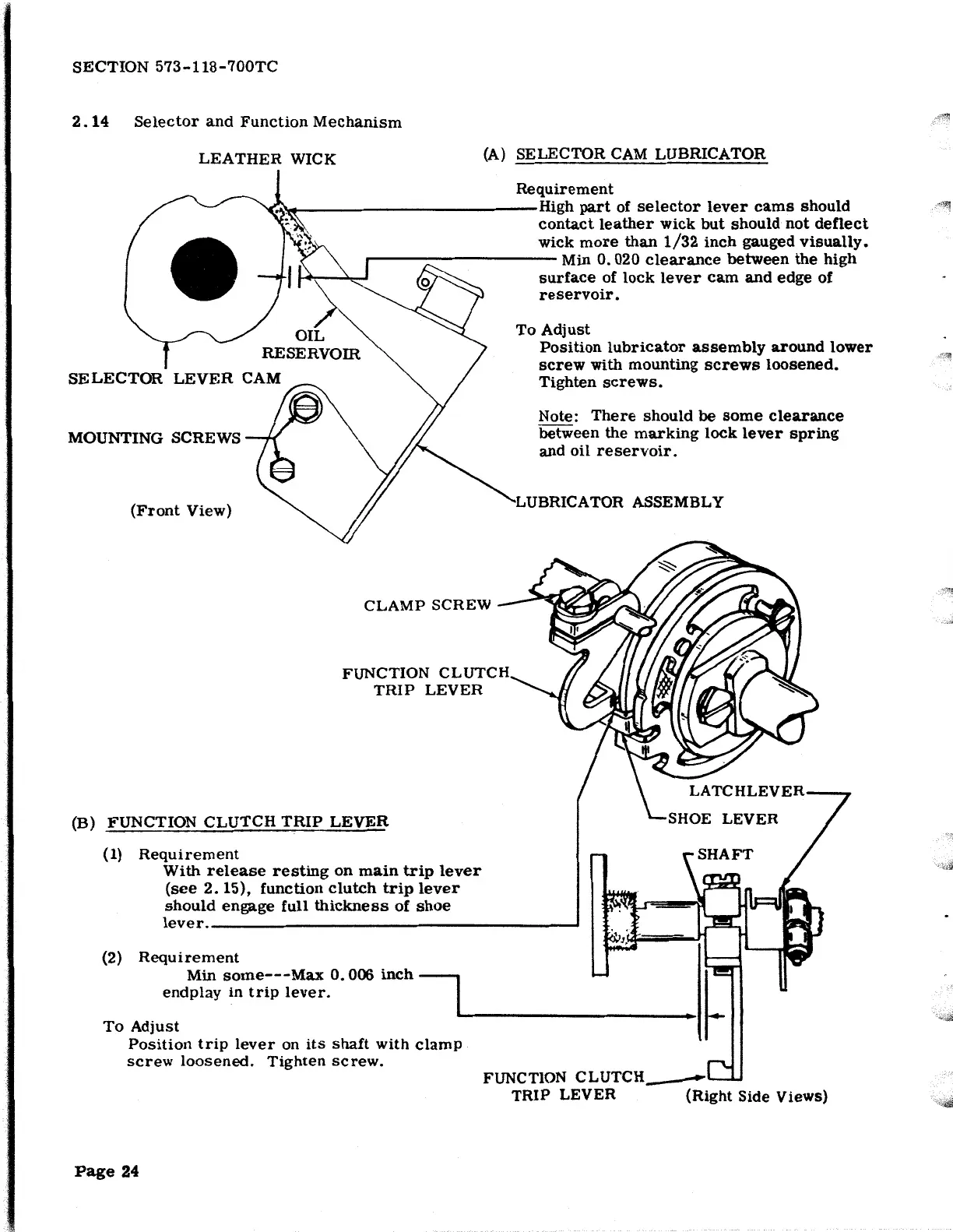

SECTION 573-118-700TC
2. 14 Selector and Function Mechanism
LEATHER WICK
(A) SELECTOR CAM LUBRICATOR
Requirement
.,.. High part of selector lever cams should
contact leather wick but should not deflect
wick more than 1/32 inch gauged visually.
~ '\
1
r---------- Min 0. 020 clearance between the high
I~ ~ ~ surface of lock lever cam and edge of
MOUNTING SCREWS
(Front View)
CLAMP SCREW
FUNCTION
CLUTCH
TRIP LEVER
(B) FUNCTION CLUTCH TRIP LEVER
( 1) Requirement
With release resting on main trip lever
(see 2. 15), function clutch trip lever
should engage full thickness of shoe
reservoir.
To Adjust
Position lubricator assembly around lower
screw with mounting screws loosened.
Tighten screws.
Note: There should be some clearance
between the marking lock lever spring
and oil reservoir.
LUBRICATOR ASSEMBLY
SHOE LEVER
lever.--------------------------------------~
(2) Requirement
Min some---Max 0. 006 inch I
endplay in trip lever. I
... _ -------------~·~h-
To Adjust
Position trip lever on its shaft with clamp
screw loosened. Tighten screw.
Page 24
FUNCTION
CLUTCH_ -
TRIP LEVER (Right Side Views)
