ISS 8, SECTION 573-118-700TC

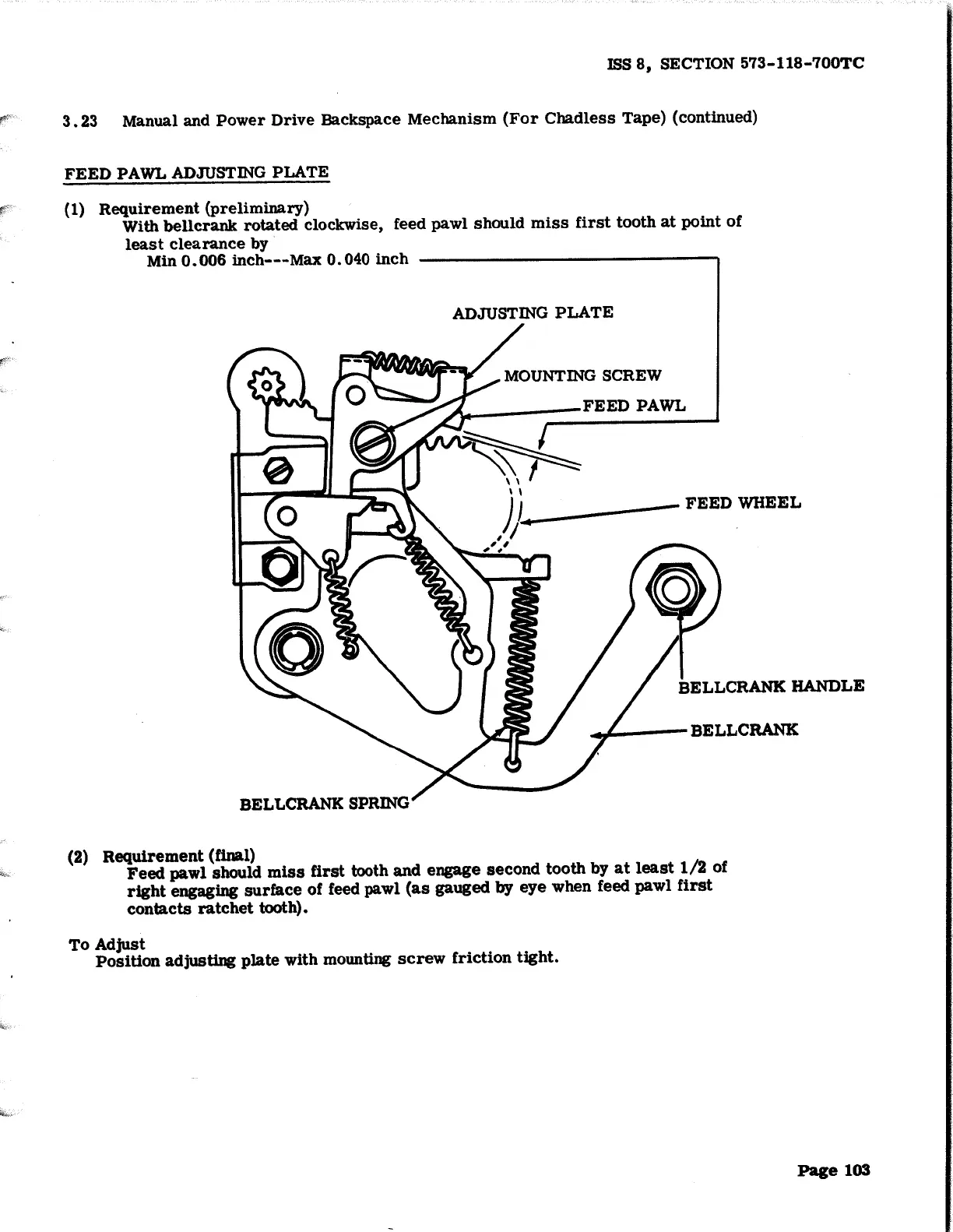

3.23 Manual and Power Drive Backspace Mechanism (For Chadless Tape) (continued}
FEED PAWL ADJUSTING PLATE
(1)
Requirement (preliminary)
With bellcrank rotated clockwise, feed pawl should miss first tooth at point of
least clearance by ·
Min
0.006 inch---Max 0.040 inch ---------------.
ADJUSTING PLATE
./ FEED WHEEL
BELLCRANK HANDLE
,.;r BELLCRANK
BELLCRANK SPRING
(2)
Requirement (final)
Feed pawl should miss first tooth and engage second tooth by at least 1/2 of
right engaging surface of feed pawl (as gauged by eye when feed pawl first
contacts ratchet tooth).
To Adjust
Position adjusting plate with mounting screw friction tight.
Page 103
