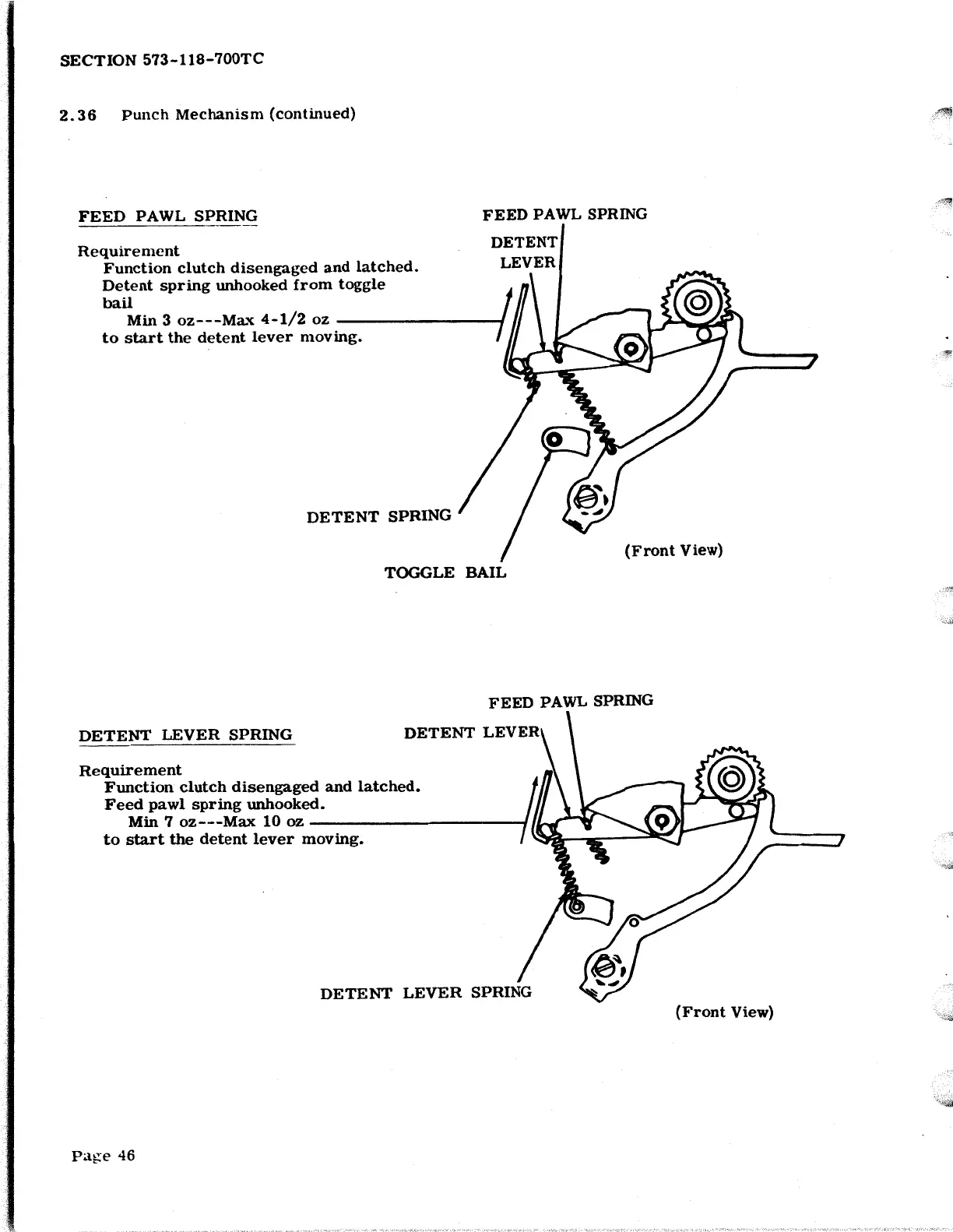

SECTION 573-118-700TC
2. 36 Punch Mechanism (continued}
FEED PAWL SPRING
Requirement
Function clutch disengaged and latched.
Detent spring unhooked from toggle
bail
FEED PAWL SPRING
DETENT
LEVER
Min 3 oz---Ma.x 4-1/2 oz ---------1
to start the detent lever moving.
DETENT SPRING
(Front View)
TOGGLE BAIL
FEED PAWL SPRING
DETENT LEVER SPRING
DETENT LEVER
Requirement
Function clutch disengaged and latched.
Feed pawl spring unhooked.
Min 7 oz---Max 10 oz ------------.1
to start the detent lever moving.
DETENT LEVER SPRING
(Front View)
Page 46
