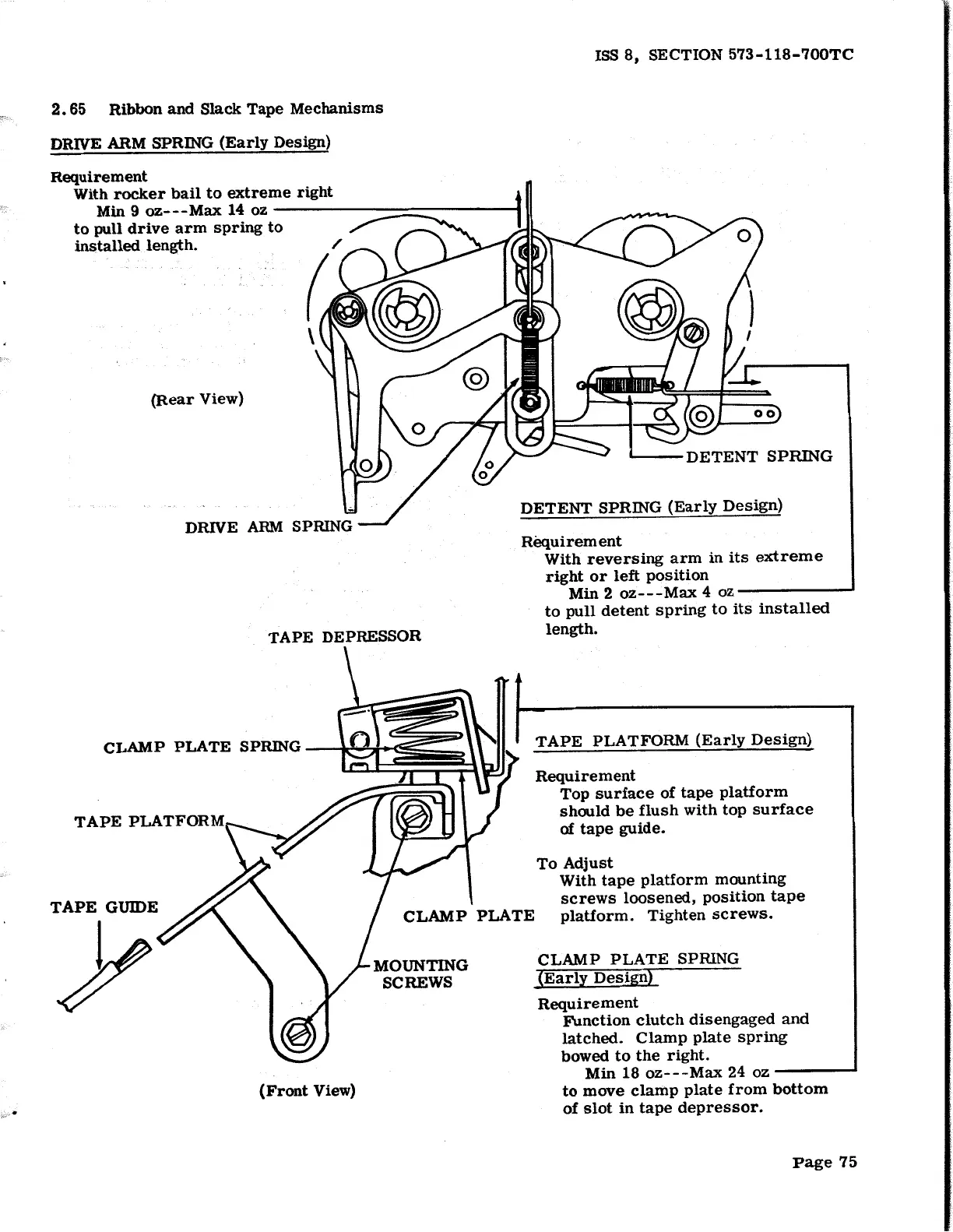

2. 65 Ribbon and Slack Tape Mechanisms
DRIVE ARM SPRING (Early Design)
Requirement
With rocker bail to extreme right
Min 9 oz---Max 14 oz ------:::::==:------1
to pull drive arm spring to -- -
installed length.
(Rear View)
TAPE DEPRESSOR
CLAMP PLATE SPRING ~ ..
25
~
TAPE PLATFORM
ISS 8, SECTION 573-118-700TC
DETENT SPRING (Early Design)
Requirement
With reversing arm in its extreme
right or left position
Min 2 oz---Max 4 oz------'
to pull detent spring to its installed
length.
TAPE PLATFORM (Early Design)
Requirement
Top surface of tape platform
should be flush with top surface
of tape guide.
To Adjust
TAPE GUIDE
y
With tape platform mounting
screws loosened, position tape
CLAMP PLATE platform. Tighten screws.
(Front View)
MOUNTING
CLAMP PLATE SPRING
SCREWS
(Early Design)
Requirement
Function clutch disengaged and
latched. Clamp plate spring
bowed to the right.
Min 18 oz---Max 24 oz ___ __.
to move clamp plate from bottom
of slot in tape depressor.
Page 75
