Teletype 28 - Page 16

SECTION 573-118-700TC

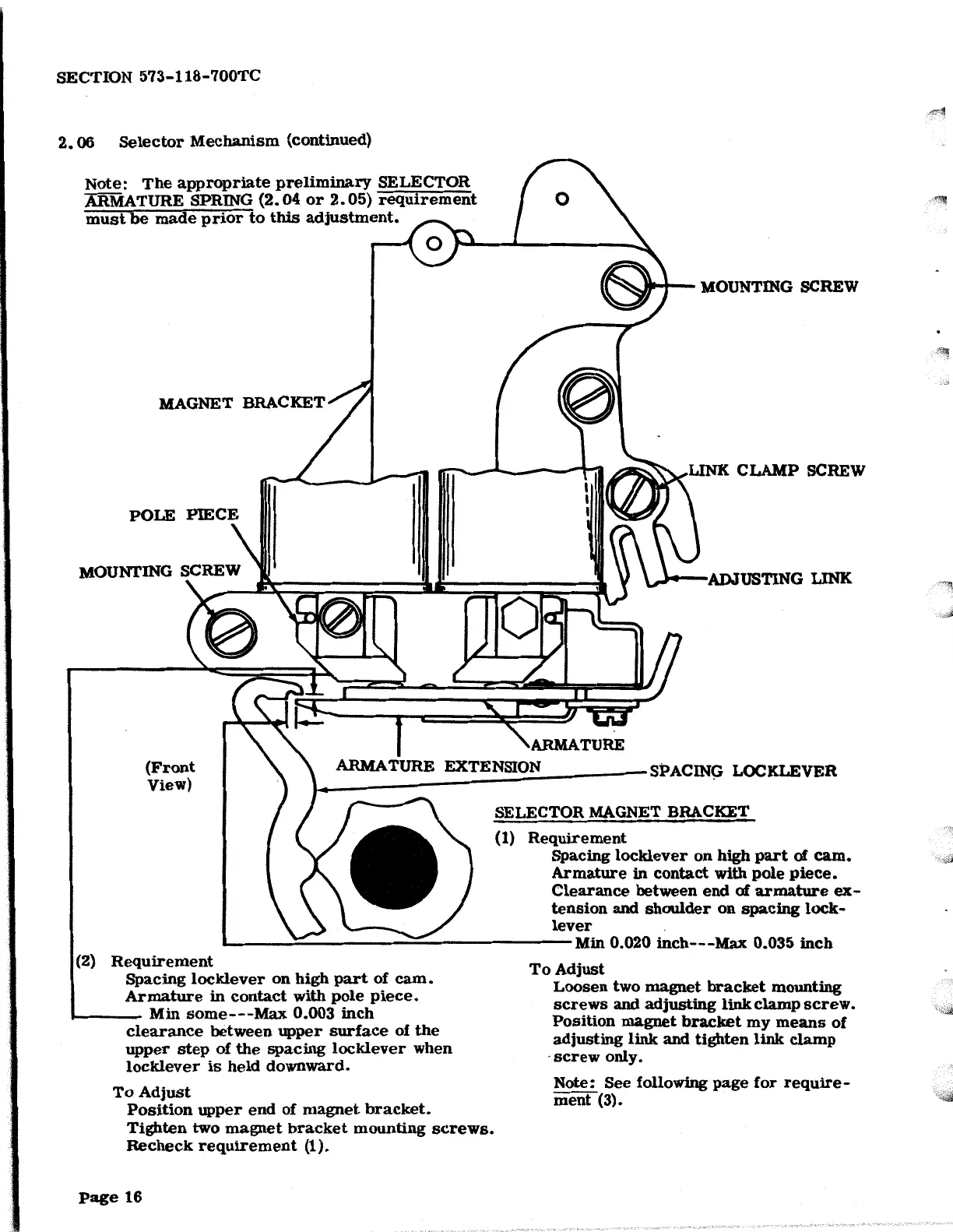

2. 06 Selector Mechanism (continued)
Note: The appropriate preliminary SELECTOR
ARMATURE SPRING (2. 04 or 2. 05) requirement
must be made prior to this adjustment.
MAGNET BRACKET
111 I MOUNTING SCREW
~ADJUSTING LINK
(Front
View)
.tUUYJ.A J. u.n..r. .r.A-J.-.r..No:;.tV.l'l SPACING LOCKLEVER
~. .
SELECTOR MAGNET BRACKET
(1)
Requirement
Spacing locldever on high part of cam.
Armature in contact with pole piece.
Clearance between end of armature ex-
tension and shoulder on spacing lock-
lever
I ~ ~ Min 0.020 inch---Max 0.035 inch
(2) Requirement
Spacing locklever on high part of cam.
Armature in contact with pole piece.
,..__ ___ Min some---Max 0.003 inch
clearance between upper surface of the
upper step of the spacing locklever when
locklever is held downward.
To Adjust
Position upper end of magnet bracket.
Tighten two magnet bracket mounting screws.
Recheck requirement (1).
Page 16
To Adjust
Loosen two magnet bracket mounting
screws and adjusting link clamp screw.
Position magnet bracket my means of
adjusting link and tighten link clamp
·screw only.
Note: See following page for require-
ment (3).
