SECTION
573-118-700TC
3,
32
Power
Drive
Backspace
Mechanism
(continued)
(Nonadjustable
Backspace
Magnet
Assembly)
Note 1:
For
early
design
adjustable
magnet
assembly
see
3.
26.

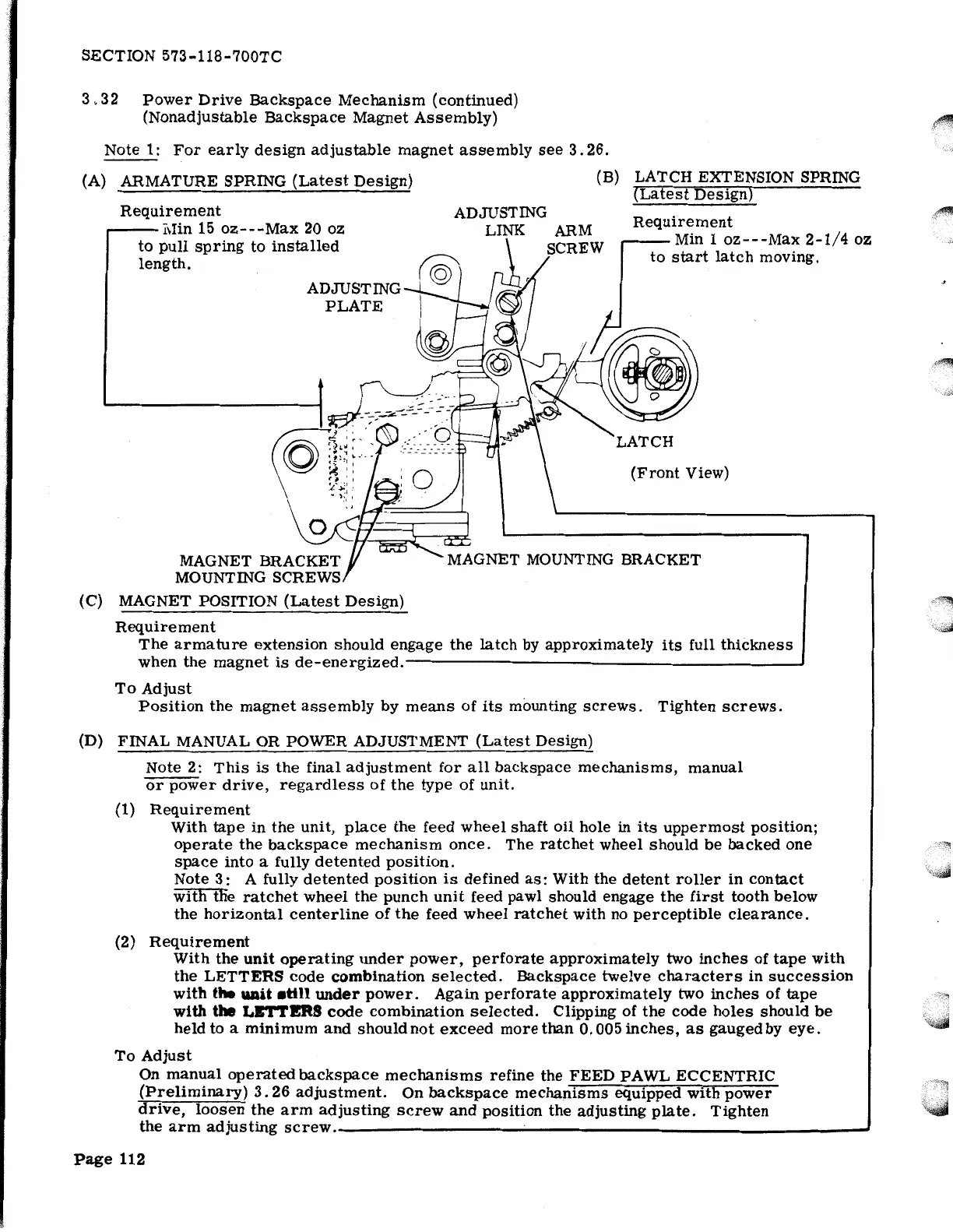

(A) ARMATURE SPRING
(Latest
Design)
(B) LATCH EXTENSION SPRING
(Latest
Design)
PLATE
MAGNET BRACKET
MOUNTING SCREWS
ADJUSTING
LINK ARM
SCREW
Requirement
r----
Min 1
oz---Max
2-1/4
oz
to
start
latch
moving.
(Front
View)
(C) MAGNET POSITION
(Latest
Design)
Requirement
The
armature
extension
should
engage
the
latch
by
approximately
its
full
thickness
when
the
magnet
is
de-energized.--------------------_J
To
Adjust
Position
the
magnet
assembly
by
means
of
its
mounting
screws.
Tighten
screws.
(D) FINAL MANUAL OR
POWER
ADJUSTMENT
(Latest
Design)
Note 2:
This
is
the
final
adjustment
for
all
backspace
mechanisms,
manual
or
power
drive,
regardless
of
the
type
of
unit.
(1)
Requirement
With
tape
in
the
unit,
place
the
feed
wheel
shaft
oil
hole in
its
uppermost
position;
operate
the
backspace
mechanism
once.
The
ratchet
wheel
should
be
backed
one
space
into
a fully
detented
position.
Note
3:
A fully
detented
position
is
defined
as:
With
the
detent
roller
in
contact
with
the
ratchet
wheel
the
punch
unit
feed pawl should
engage
the
first
tooth
below
the
horizontal
centerline
of
the
feed
wheel
ratchet
with
no
perceptible
clearance.
(2)
Requirement
With
the
unit
operating
under
power,
perforate
approximately
two
inches
of
tape
with
the
LETTERS
code
combination
selected.
Backspace
twelve
characters
in
succession
with
the
uait
•ttl!
Wlder
power.
Again
perforate
approximately
two
inches
of
tape
with
the LB"M'ZRS
code
combination
selected.
Clipping of
the
code
holes
should
be
held
to a
minimum
and
should
not
exceed
more
than
0.005
inches,
as
gauged
by
eye.
To
Adjust
On
manual
operated
backspace
mechanisms
refine
the
FEED
PAWL ECCENTRIC
(Preliminary)
3.
26
adjustment.
On
backspace
mechanisms
equipped
with
power
drive,
loosen
the
arm
adjusting
screw
and
position
the
adjusting
plate.
Tighten
the
arm
adjusting
screw·----------------------------~
