SECTION 573-118-700TC

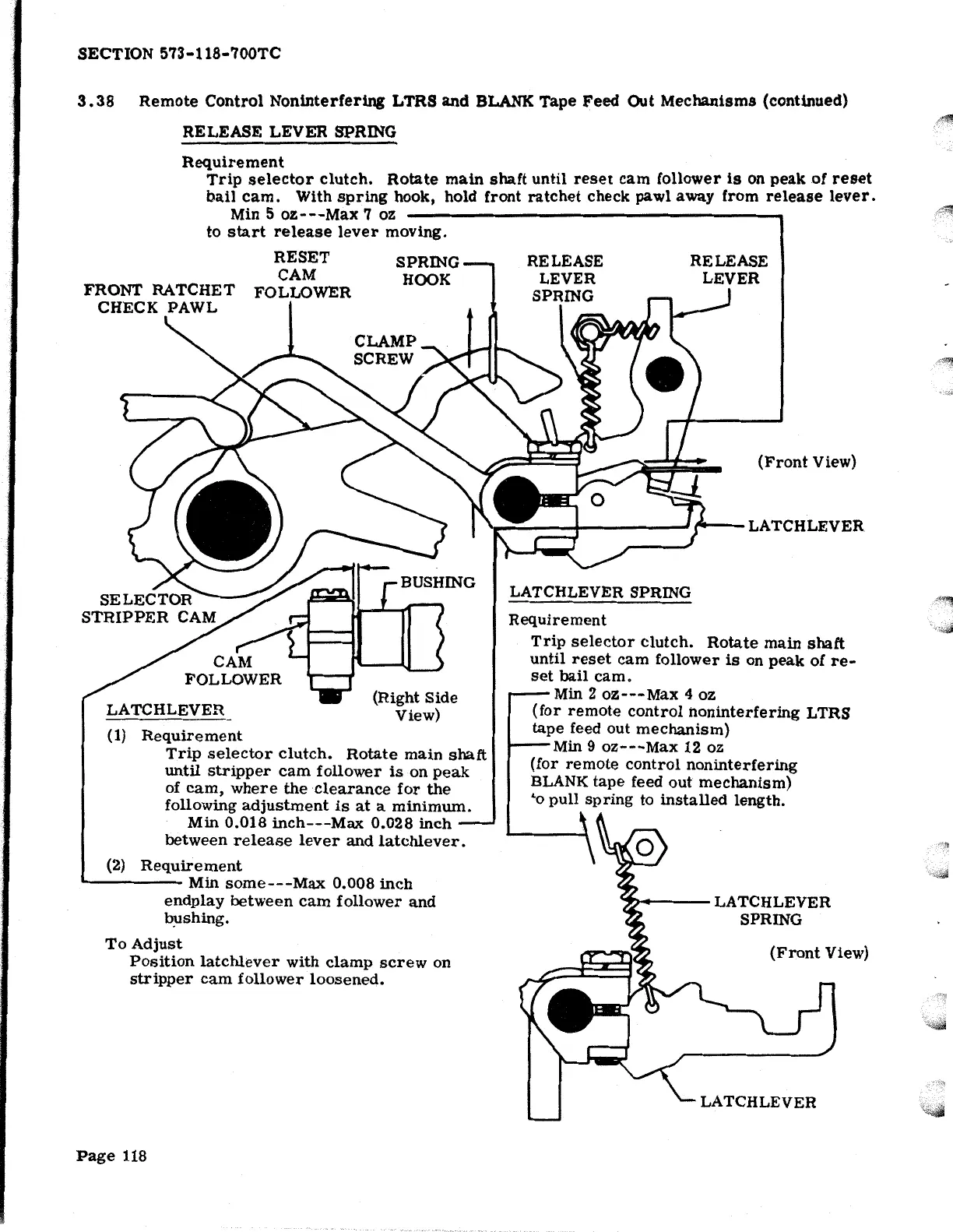

3. 38 Remote Control Noninterfering LTRS and BLANK Tape Feed Out Mechanisms (continued)
RELEASE LEVER SPRING
Requirement
Trip selector clutch. Rotate main shaft until reset cam follower is on peak of reset
bail cam. With spring hook, hold front ratchet check pawl away from release lever.
Min 5 oz---Max 7 oz
to start release lever moving.
RESET SPRING
CAM HOOK
FOLLOWER
(Front View)
't I I ('t LATCHLEVER
_ (Right Side
LATCHLEVER View)
(1)
Requirement
Trip selector clutch. Rotate main shaft
until stripper cam follower is on peak
of cam, where the clearance for the
following adjustment is at a minimum.
Min 0.018 inch---Max 0.028 inch
between release lever and latchlever.
(2) Requirement
L------ Min some---Max 0.008 inch
endplay between cam follower and
b_ushing.
To Adjust
Position latchlever with clamp screw on
stripper cam follower loosened.
Page 118
LATCHLEVER SPRING
Requirement
Trip selector clutch. Rotate main shaft
until reset cam follower is on peak of re-
set bail cam.
Min 2 oz---Max 4 oz
(for remote control noninterfering LTRS
tape feed out mechanism)
Min 9 oz---Max 12 oz
(for remote control noninterfering
BLANK tape feed out mechanism)
Lo pull spring to installed length.
~ • LATCHLEVER
SPRING
(Front View)
LATCHLEVER
,,~
