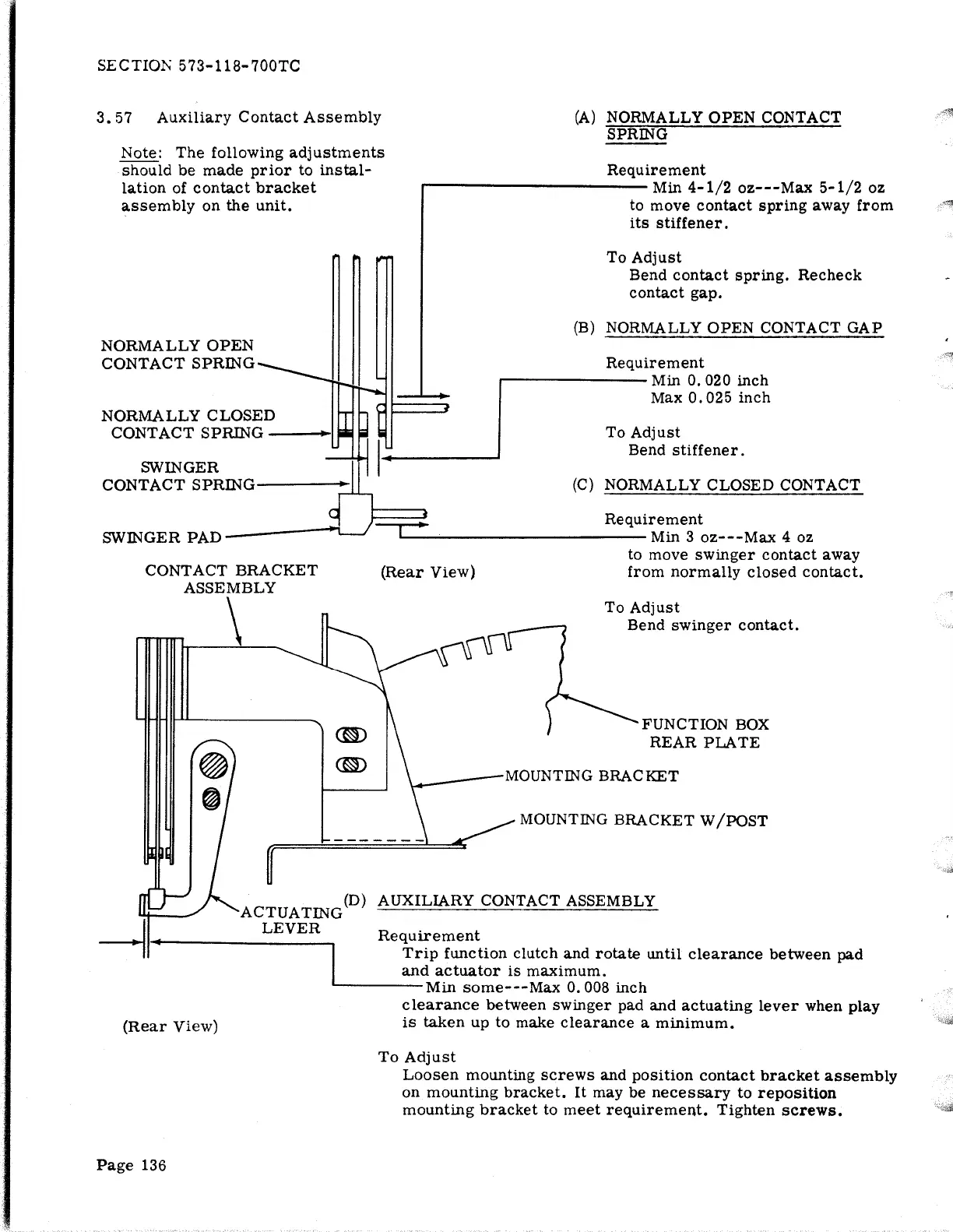

SECTIOl'<
573-118-700TC
3.
57
Auxiliary
Contact
Assembly
Note:
The
following
adjustments
should
be
made
prior
to
instal-
lation
of
contact
bracket
assembly
on
the
unit.
NORMALLY
OPEN
CONTACT
SPRING
(A)
NORMALLY
OPEN
CONTACT
SPRING
Requirement
r----------
Min
4-1/2
oz---Max
5-1/2
oz
to move
contact
spring
away
from
its
stiffener.
To
Adjust
Bend
contact
spring.
Recheck
contact
gap.
(B)
NORMALLY
OPEN
CONTACT GAP
Requirement
NORMALLY CLOSED
CONTACT SPRING
I
F
..-------Min
0.020
inch
Max
0.
025
inch
To
Adjust
1-
Bend
stiffener.
SWINGER
CONTACT
SPRING----
SWINGER PAD ------t
CONT ACT
BRACKET
ASSEMBLY
\
<ID
em
(C)
NORMALLY CLOSED CONTACT
Requirement
L----------------
Min 3
oz---
Max 4 oz
(Rear
View)
to move
swinger
contact
away
from
normally
closed
contact.
To
Adjust
Bend
swinger
contact.
FUNCTION
BOX
REAR
PLATE
~--
MOUNTING BRACKET
MOUNTING BRACKET W
/POST
(D)
AUXILIARY CONTACT ASSEMBLY
ACTUATING
LEVER
(Rear
View)
Page
136
Requirement
Trip
function
clutch
and
rotate
until
clearance
between
pad
and
actuator
is
maximum.
L------Min
some---Max
0. 008 inch
clearance
between
swinger
pad
and
actuating
lever
when
play
is
taken
up
to
make
clearance
a
minimum.
To
Adjust
Loosen
mounting
screws
and
position
contact
bracket
assembly
on
mounting
bracket.
It
may be
necessary
to
reposition
mounting
bracket
to
meet
requirement.
Tighten
screws.
