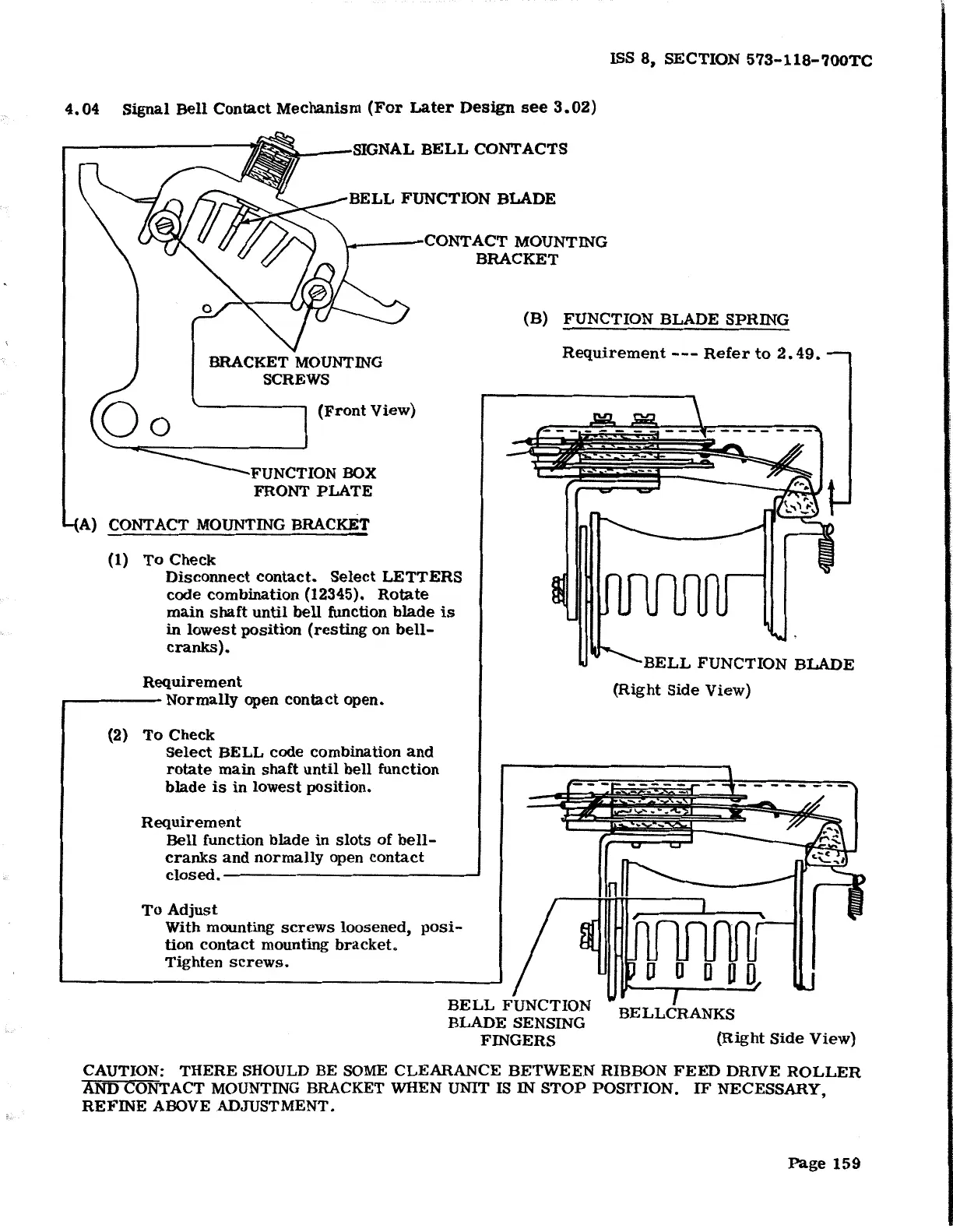

ISS
8,
SECTION
573-118-700TC
4.04
Signal
Bell
Contact
Mechanism
(For
Later
Design
see
3.02}
1
~
-SIGNAL
BELL
CONTACTS
BELL
FUNCTION
BLADE
\-ol
CONTACT
MOUNTING
BRACKET
(B)
FUNCTION
BLADE
SPRING
BRACKET MOUNTING
Requirement---
Refer
to
2.
49.
SCREWS
--,
(Front
View)
FUNCTION BOX
FRONT
PLATE
A)
CONTACT MOUNTING BRACKET
(1}
To
Check
Disconnect
contact.
Select
LETTERS
code
combination
(12345).
Rotate
main
shaft
until
bell
function
blade
is
in
lowest
position
(resting
on
bell-
cranks).
Requirement
....-----
Normally
open
contact
open.
(2)
To
Check
Select
BELL
code
combination
and
rotate
main
shaft
until
bell
function
blade
is
in
lowest
position.
Requirement
Bell
function
blade
in
slots
of
bell-
cranks
and
normally
open
contact
closed.--------------------------~
To
Adjust
With
mounting
screws
loosened,
posi-
tion
contact
mounting
bracket.
Tighten
screws.
BELL
FUNCTION
BLADE
SENSING
FINGERS
BELL
FUNCTION
BLADE
(Right
Side
View)
-----
""'
t;;;;,.
.....
-..-.
BELLCRANKS
(Right
Side
View)
CAUTION:
THERE
SHOULD BE
SOME
CLEARANCE
BETWEEN
RIBBON
FEED
DRIVE
ROLLER
AND
CONTACT MOUNTING BRACKET WHEN UNIT IS
IN
STOP
POSITION.
IF
NECESSARY,
REFINE
ABOVE ADJUSTMENT.
Page
159
