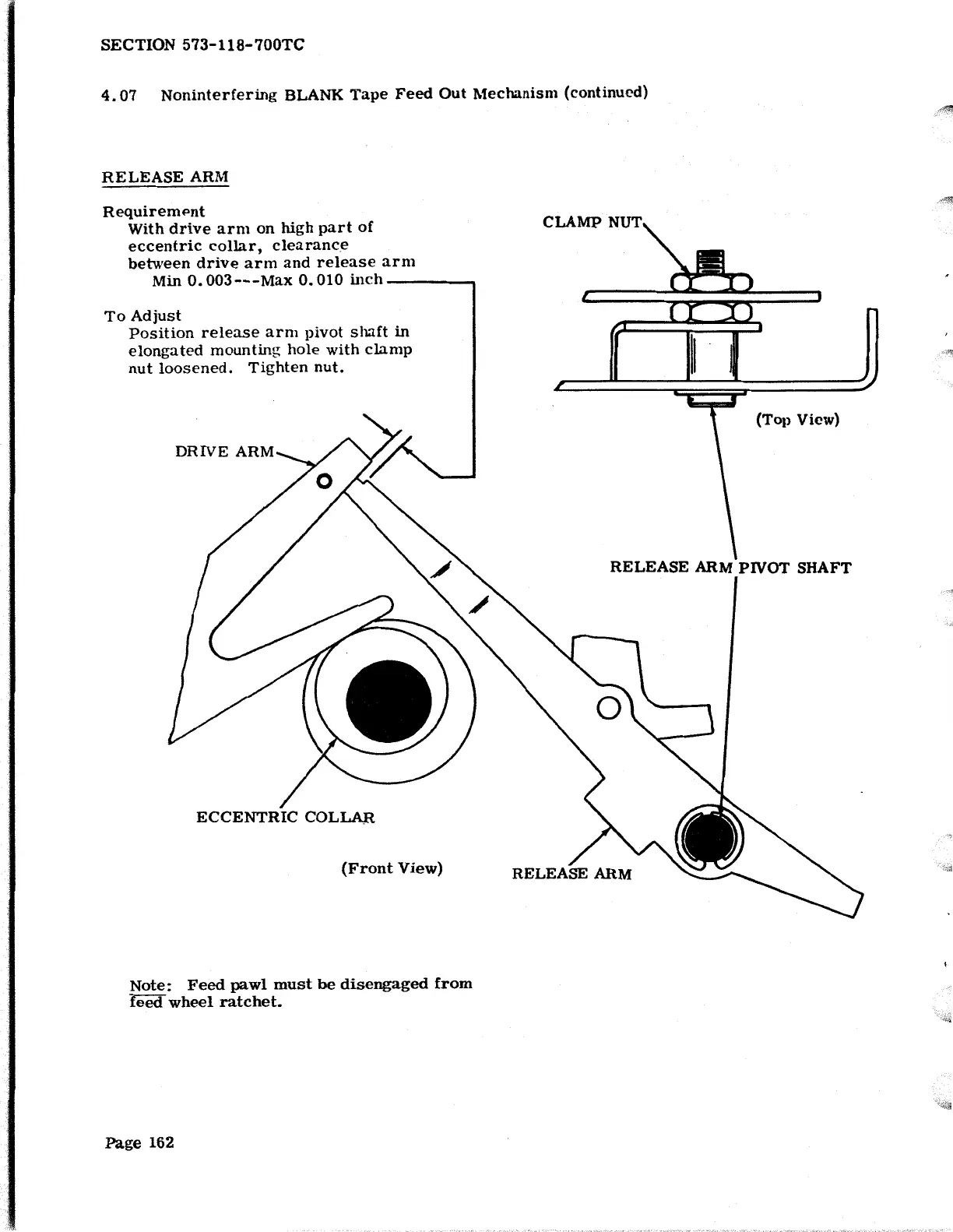

SECTION 573-118-700TC
4. 07 Noninterfering BLANK Tape Feed Out Mechanism (continued)
RELEASE ARM
RequiremPnt
With drive arm on high part of
eccentric collar, clearance
between drive arm and release arm
Min 0.003---Max 0.010 inch-----.
To Adjust
Position release arm pivot shaft in
elongated mounting hole with clamp
nut loosened. Tighten nut.
(Front View)
Note: Feed pawl must be disengaged from
feed wheel ratchet.
Page 162
CLAMP
RELEASE ARM
(Top View)
SHAFT
