ISS 8, SECTION 573-118-700TC

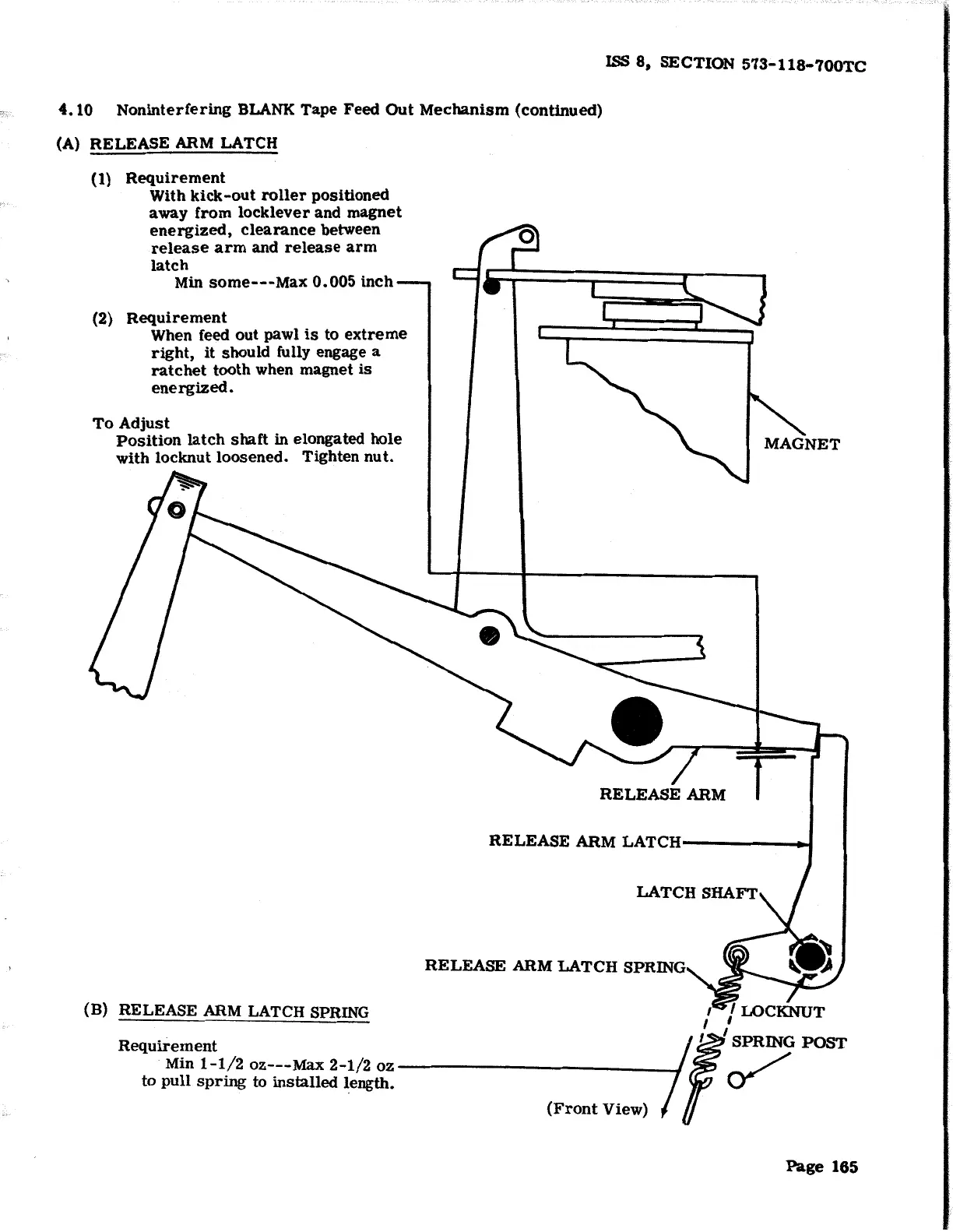

4.10 Noninterfering BLANK Tape Feed Out Mechanism (continued)
(A) RELEASE ARM LATCH
(1) Requirement
With kick-out roller positioned
away from locklever and magnet
energized, clearance between
release arm and release arm
latch
Min some---Max 0.005 inch
(2) Requirement
When feed out pawl is to extreme
right, it should fully engage a
ratchet tooth when magnet is
energized.
To Adjust
Position latch shaft in elongated hole
with locknut loosened. Tighten nut.
RELEASE ARM
RELEASE ARM LATCH-----~
RELEASE ARM LATCH
LOCKNUT
(B) RELEASE ARM LATCH SPRING
Requirement 1' ,'SPRING POST
Min 1-1/2 oz---Max 2-1/2 oz-------------...J /
to pull spring to installed length. I (Y
(Front View)
Page 165
