ISS 8, SECTION 573-118-700TC

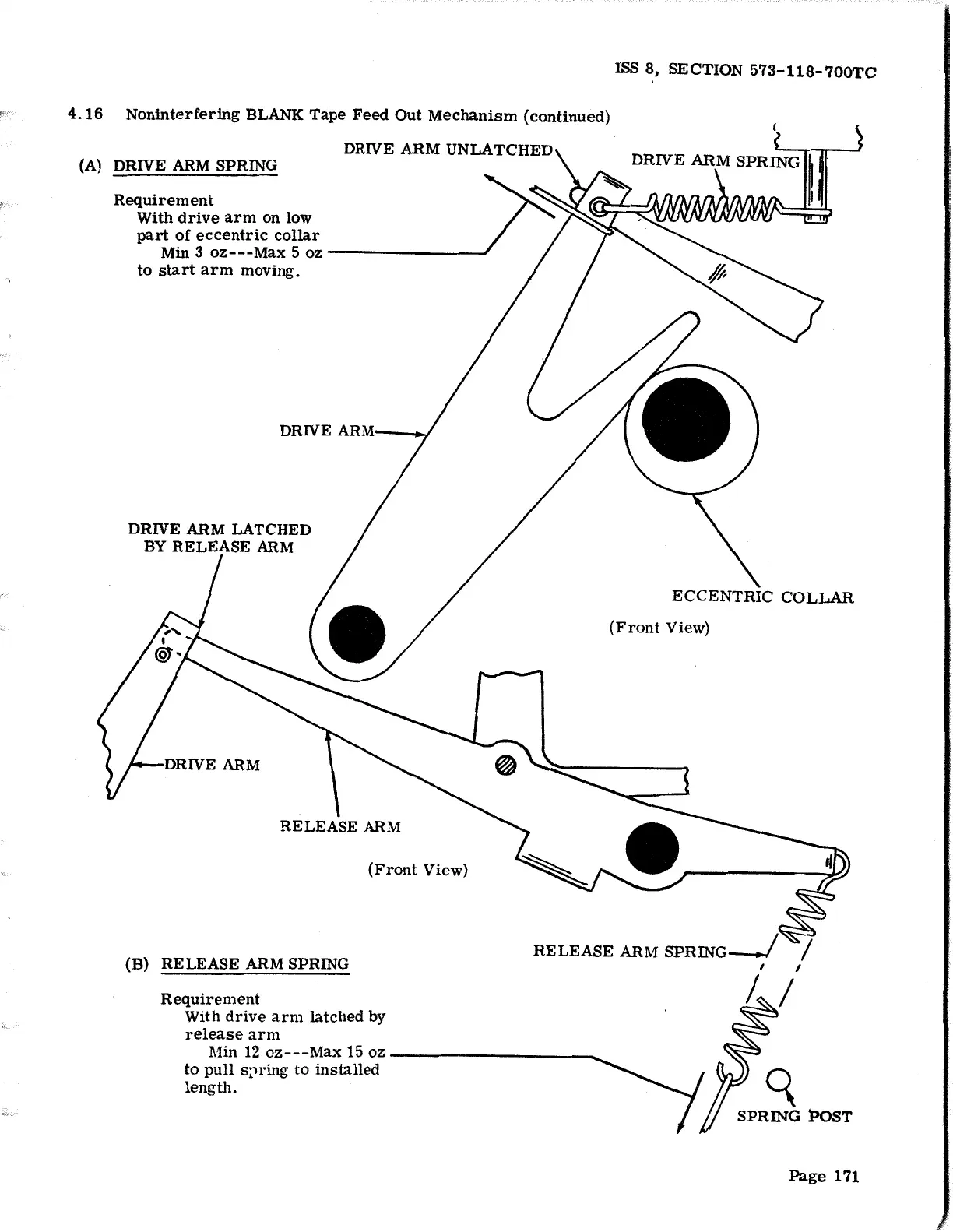

4.16 Noninterfering BLANK Tape Feed Out Mechanism (continued)
DRIVE ARM UNLATCHED
DRIVE
ARM SPRING
(A) DRIVE ARM SPRING
' \
Requirement
With drive arm on low
part of eccentric collar
Min 3 oz---Max 5 oz --------...J
to start arm moving.
DRIVE
ARM ...t
DRIVE ARM LATCHED
BY
RELEASE ARM
(B)
RELEASE ARM SPRING
Requirement
(Front View)
With
drive arm latched by
release arm
(Front View)
RELEASE ARM SPRING_/
Min 12 oz---Max 15 oz-----------..
to pull s~ring to installed
length.
(\
SPRING PoST
