ISS
8,

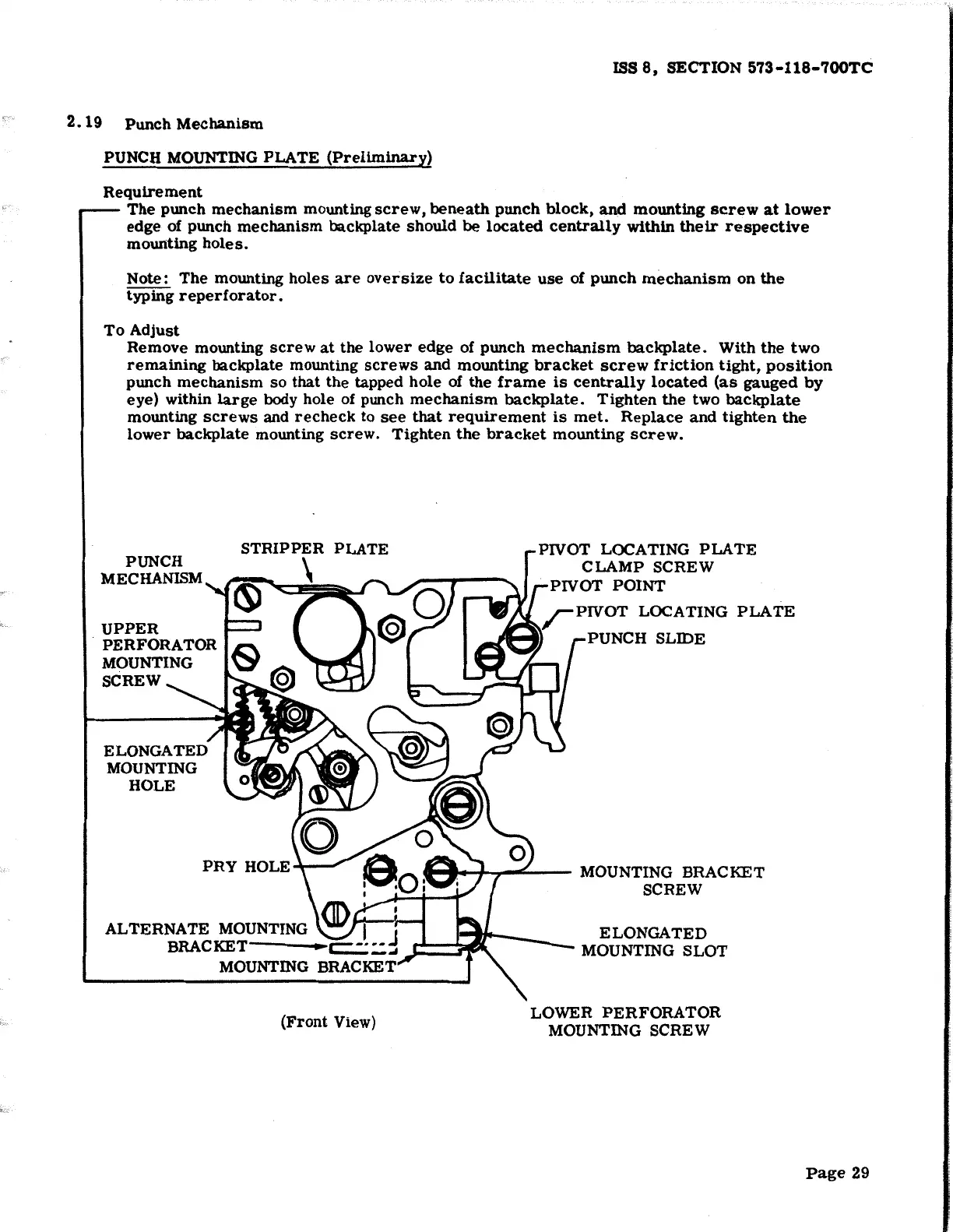

SECTION
573-118-700TC
2. 19
Punch
Mechanism
PUNCH MOUNTING
PLATE
(Preliminary)
Requirement
The
punch
mechanism
mounting
screw,
beneath
punch
block,
and
mounting
screw
at
lower
edge
of punch
mechanism
backplate
should
be
located
centrally
within
their
respective
mounting
holes.
Note:
The
mounting
holes
are
oversize
to
facilitate
use
of
punch
mechanism
on
the
typing
reperforator.
To
Adjust
Remove
mounting
screw
at
the
lower
edge
of
punch
mechanism
backplate.
With
the
two
remaining
backplate
mounting
screws
and
mounting
bracket
screw
friction
tight,
position
punch
mechanism
so
that
the
tapped
hole
of
the
frame
is
centrally
located
(as
gauged
by
eye)
within
large
body hole of punch
mechanism
backplate.
Tighten
the
two
backplate
mounting
screws
and
recheck
to
see
that
requirement
is
met.
Replace
and
tighten
the
lower
backplate
mounting
screw.
Tighten
the
bracket
mounting
screw.
PUNCH
MECHANISM
UPPER
. PERFORATOR
MOUNTING
SCREW
ELONGATED
MOUNTING
HOLE
STRIPPER
PLATE
\
(Front
View)
PIVOT LOCATING
PLATE
CLAMP
SCREW
PIVOT POINT
rPIVOT
LOCATING
PLATE
PUNCH SLIDE
I:
J. J 1 rrz< MOUNTING BRACKET
SCREW
ELONGATED
MOUNTING
SLOT
LOWER
PERFORATOR
MOUNTING SCREW
Page
29
