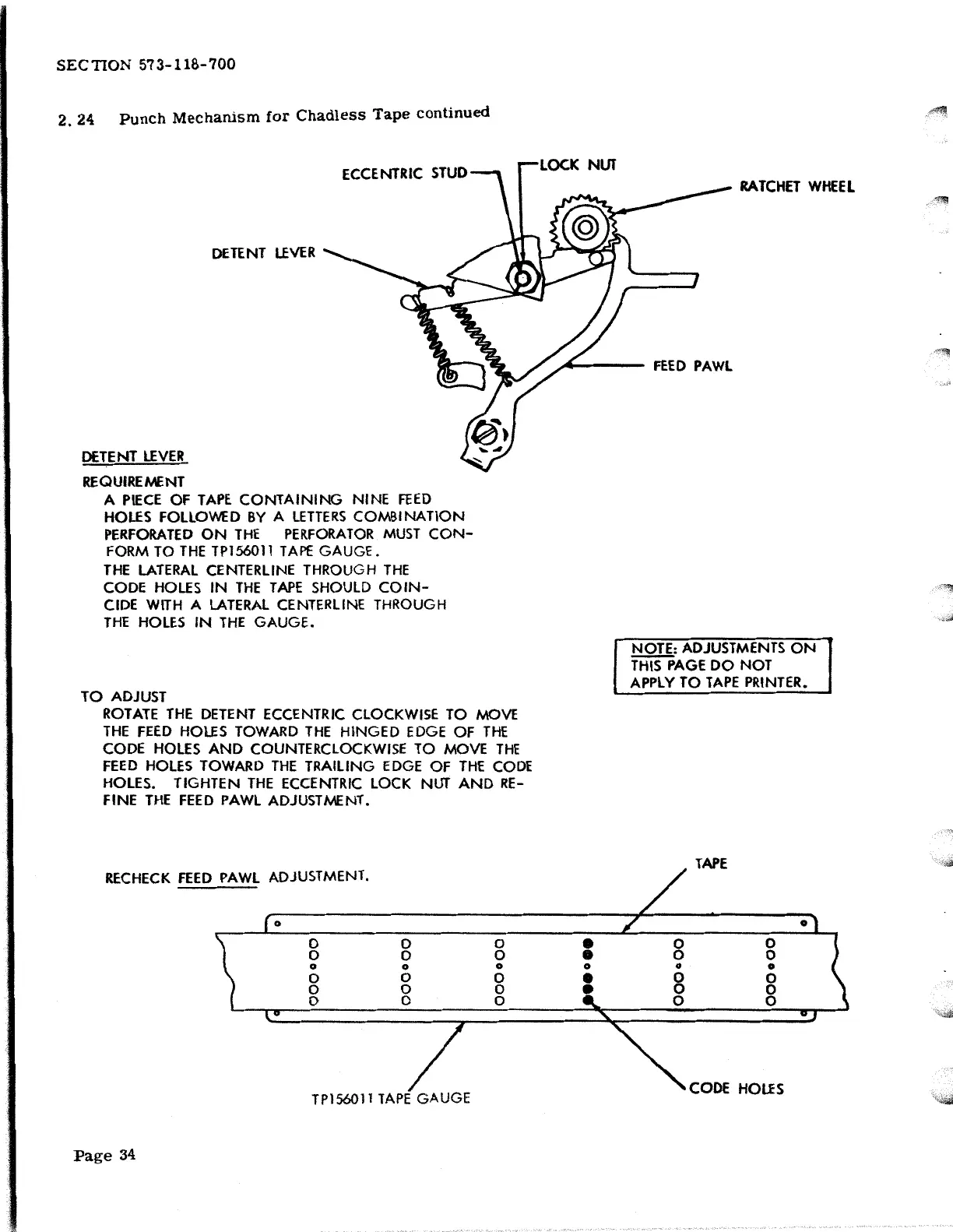

SECTION 573-118-700
2. 24 Punch Mechanism for Chadless Tape continued
DETENT LEVER
REQUIRE WE. NT
DETENT LEVER
ECCENTRIC STUD
A PIECE OF TAPE CONTAINING NINE FEED
HOLES FOLLOWED BY A LETTERS COMBINATION
PERFORATED ON THE PERFORATOR MUST CON-
FORM TO THE TP156011 TAPE GAUGE.
THE LATERAL CENTERLINE THROUGH THE
CODE HOLES IN THE TAPE SHOULD COIN-
CIDE WITH A LATERAl CENTERliNE THROUGH
THE HOlES IN THE GAUGE.
TO ADJUST
ROTATE THE DETENT ECCENTRIC ClOCKWISE TO MOVE
THE FEED HOLES TOWARD THE HINGED EDGE OF THE
CODE HOLES AND COUNTERCLOCKWISE TO MOVE THE
FEED HOlES TOWARD THE TRAiliNG EDGE OF THE CODE
HOLES. TIGHTEN THE ECCENTRIC LOCK NUT AND RE-
FINE THE FEED PAWL ADJUSTMENT.
RECHECK FEED PAWL ADJUSTMENT.
0 0 0
0 0
0
0 0
0
0
0
0
0 0
0
0
0 0
TPl56011 TAPE GAUGE
Page 34
RATCHET WHEEL
...,,.- FEED PAWl
•
•
0
•
•
..
tiQli: ADJUSTMENTS ON
THIS PAGE DO NOT
APPLY TO TAPE PRINTER.
_TAPE
0
0
0
0
0
0
0
0
0
0
0
0
0
CODE HOLES
~
,-~
