ISS 8, SECTION 573-118-700TC

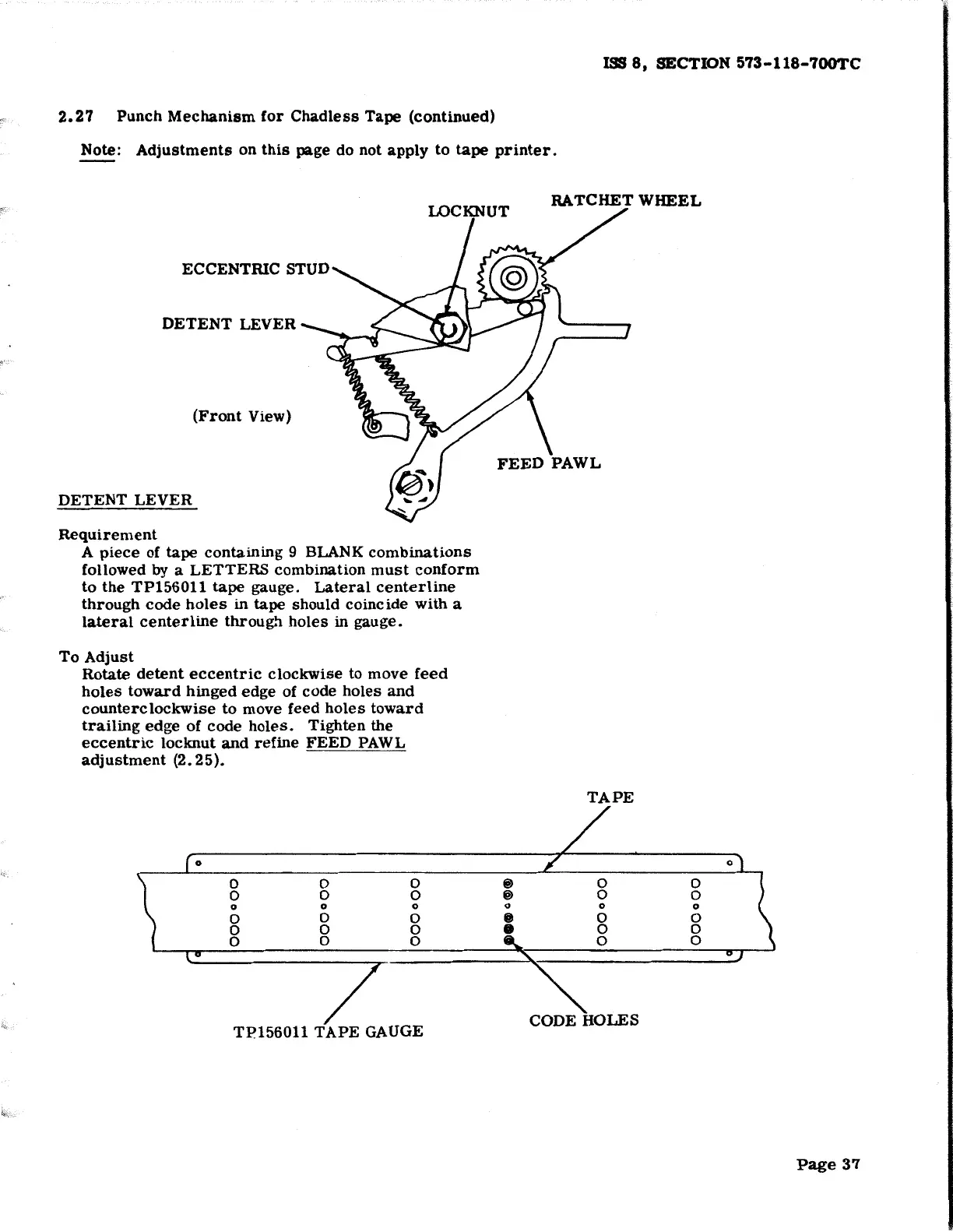

2. 27 Punch Mechanism for Chad less Tape (continued)
Note: Adjustments on this page do not apply to tape printer.
ECCENTRIC STUD
DETENT LEVER
(Front View)
DETENT LEVER
Requirement
A piece of tape containing 9 BLANK combinations
followed by a LETTERS combination must conform
to the TP156011 tape gauge. Lateral centerline
through code holes in tape should co inc ide with a
lateral centerline through holes in gauge.
To Adjust
Rotate detent eccentric clockwise to move feed
holes toward hinged edge of code holes and
counterclockwise to move feed holes toward
trailing edge of code holes. Tighten the
eccentric locknut and refine FEED PAWL
adjustment (2.25).
0
0 0
0
0
0
0 0
0
0
0
0
0
0 0
0
0
0
TP156011 TAPE GAUGE
RATCHET WHEEL
TAPE
0
@)
0
0
@)
0 0
0
0
0
•
0
0
•
0
0
...
0
0
CODE HOLES
Page 37
