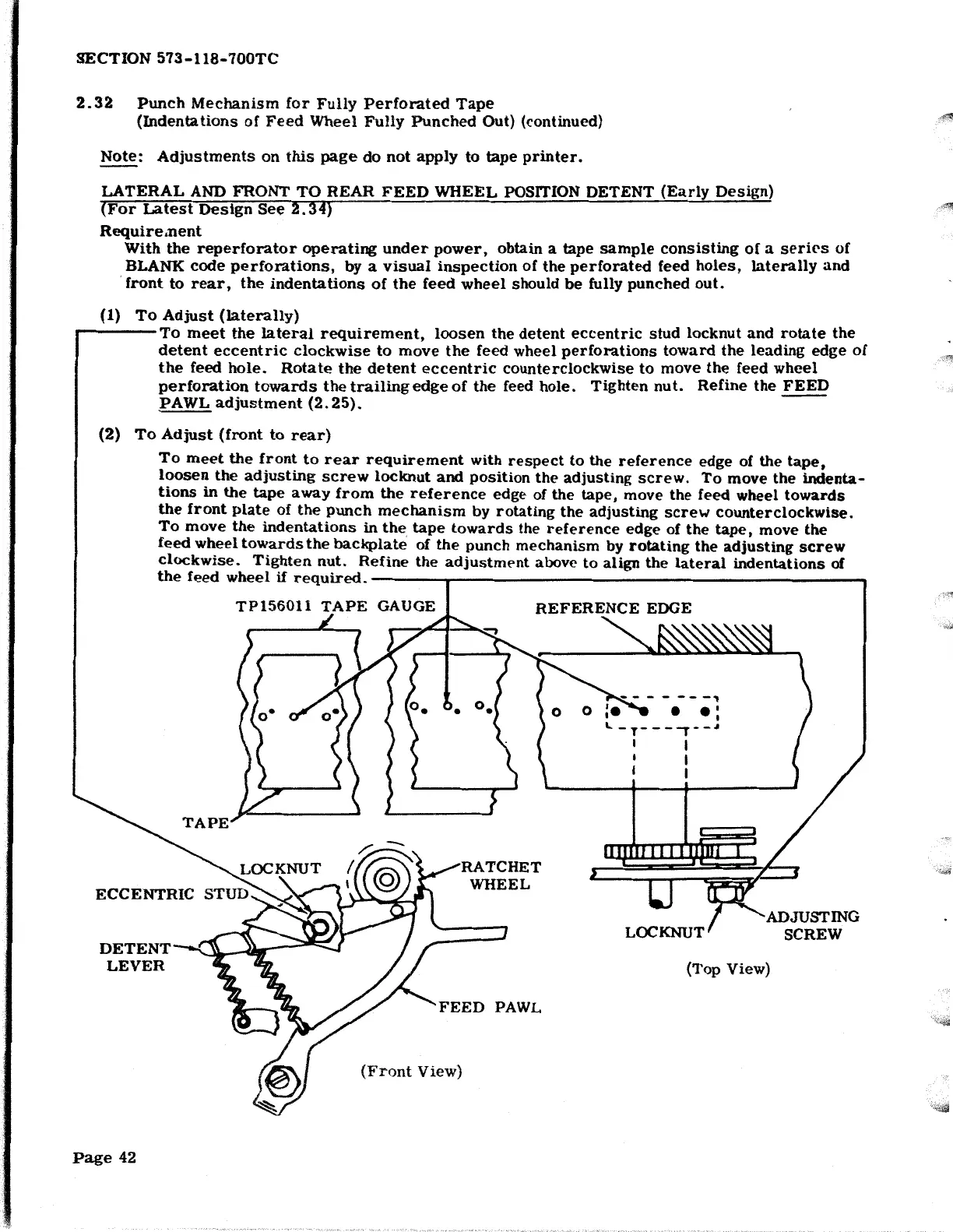

SECTION 573-118-700TC
2.32 Punch Mechanism for Fully Perforated Tape
(Indentations of Feed Wheel Fully Punched Out) (continued)
Note: Adjustments on this page do not apply to tape printer.
LATERAL AND FRONT TO REAR FEED WHEEL POSITION DETENT (Early Design)
(For Latest Design See 2.34)
Require.nent
With the reperforator operating under power, obtain a tape sample consisting of a serit's of
BLANK
code perforations, by a visual inspection of the perforated feed holes, laterally and
front to rear, the indentations of the feed wheel should be fully punched out.
(1) To Adjust {laterally)
---To meet the lateral requirement, loosen the detent eccentric stud locknut and rotate the
detent eccentric clockwise to move the feed wheel perforations toward the leading edge of
the feed hole. Rotate the detent eccentric counterclockwise to move the feed wheel
perforation towards the trailing edge of the feed hole. Tighten nut. Refine the FEED
PAWL adjustment (2.25).
(2) To Adjust (front to rear)
To meet the front to rear requirement with respect to the reference edge of the tape,
loosen the adjusting screw locknut and position the adjusting screw. To move the indenta-
tions in the tape away from the reference edge of the tape, move the feed wheel towards
the front plate of the punch mechanism by rotating the adjusting screw counterclockwise.
To move the indentations in the. tape towards the reference edge of the tape. move the
feed wheel towards the backplate of the punch mechanism by rotating the adjusting screw
clockwise. Tighten nut. Refine the adjustmf'nt above to align the lateral indentations of
the feed wheel if required.----..-----------------------.,
TP1560ll TAPE GAUGE
DETENT
LEVER
(Top View)
FEED PAWL
(Front View)
Page 42
