2. 43 Typing Mechanism (continued)
(Front View)
ISS
8, SECTION 573-118-700TC

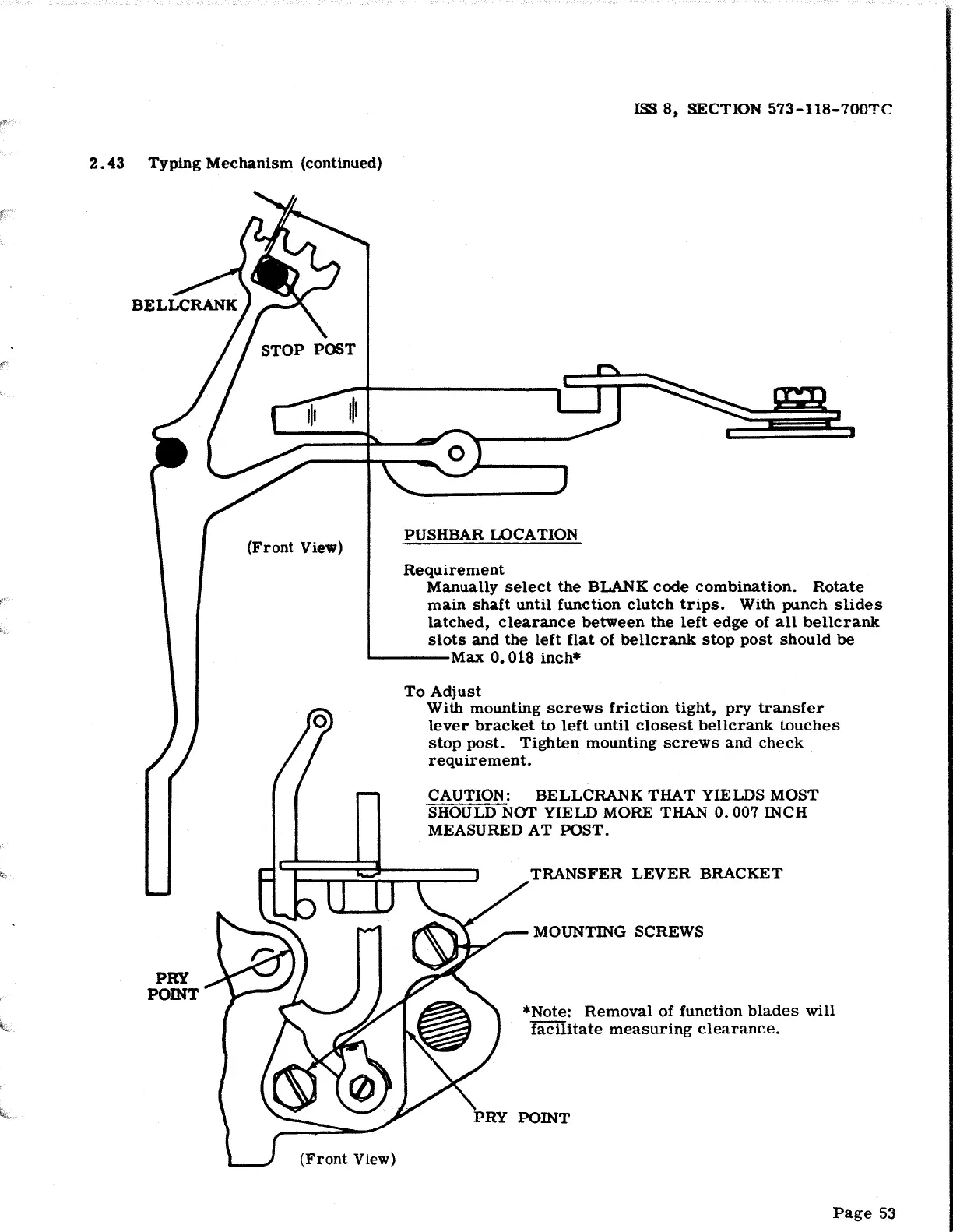

PUSHBAR LOCATION
Requirement
Manually select the BLANK code combination. Rotate
main shaft until function clutch trips. With punch slides
latched, clearance between the left edge of all bellcrank
slots and the left fiat of bellcrank stop post should be
'-----Max 0. 018 inch*
PRY
POINT
(Front View)
To Adjust
With mounting screws friction tight, pry transfer
lever bracket to left until closest bellcrank touches
stop post. Tighten mounting screws and check
requirement.
CAUTION: BELLCRANK THAT YIELDS MOST
SHOULD NOT YIELD MORE THAN 0. 007 INCH
MEASURED AT POST.
TRANSFER LEVER BRACKET
MOUNTING SCREWS
*Note: Removal of function blades will
facilitate measuring clearance.
